Power Inductor E Shape Core 3mH 20x15mm 2 Pin
This power inductor is built on an E-shape core measuring 20×15mm, providing a reliable magnetic path for power filtering applications. The winding is enclosed in a protective insulating tape wrap and held on a sturdy black plastic with 2 straight pins for simple through-hole PCB mounting.

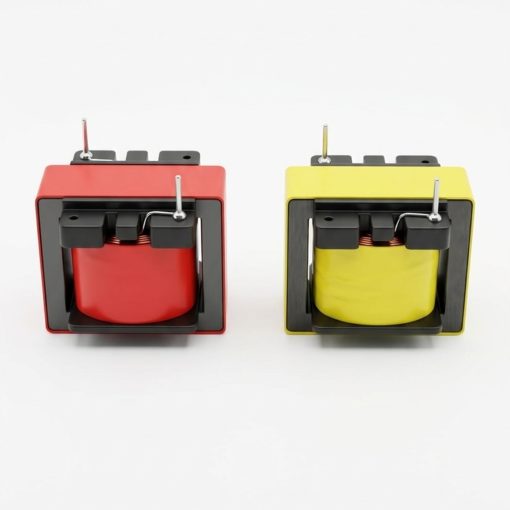

Its compact, square-profile body makes it easy to fit into tight enclosures, while the through-hole pins ensure a strong mechanical connection on the board. It is offered as a variable product with the only difference between variations being the color of the tape wrap (Red or Yellow) – the form, fit and function are the same.
Features
- E-shape (E-core) core construction
- Fixed inductance of 3mH
- Compact 20 × 15 mm core footprint
- 2-pin through-hole termination for secure PCB mounting
Specifications
| Specification | Details |
|---|---|
| Product Type | Power Inductor |
| Core Type | E Shape Core (Ferrite) |
| Inductance | 3mH |
| Core Dimensions | 20 x 15 mm |
| Number of Pins | 2 Pin |
| Mounting Type | Through-Hole / PCB Mount |
| Resistance | 6 Ω |
| Color Variations | Red, Yellow |
Applications
- Power supply circuits and SMPS filtering
- DC–DC converters and switching regulators
- Power-line noise / EMI suppression
- Audio equipment and amplifier circuits
Package Content
- 1 x Power Inductor E Shape Core 3mH 20x15mm 2 Pin
