Power Supply 12V 30A
Power Supply 12V 30A is a high-performance AC to DC switching power supply designed to deliver a stable 12VDC output with up to30A current and 360W power. It features a durable metal enclosure, adjustable output voltage, built-in cooling fan, and comprehensive protection against overload, overvoltage, overcurrent, and short circuits. Its wide AC input range makes it ideal for LED lighting, CCTV systems, industrial automation, communication equipment, and various electronic applications requiring reliable DC power.
Features
- Provides stable 12VDC regulated output.
- Delivers up to30A output current.
- Maximum output power of360W.
- Wide AC input voltage range.
- Adjustable output voltage.
- High conversion efficiency.
- Built-in overload protection.
- Overvoltage protection for connected devices.
- Overcurrent protection enhances reliability.
- Short-circuit protection improves safety.
- Durable metal enclosure for heat dissipation.
- Built-in cooling fan for continuous operation.
- Easy screw terminal connections.
- Suitable for industrial and commercial applications.
Specifications
| Parameter | Details |
|---|---|
| Product Type | AC To DC Switching Power Supply |
| Input Voltage | 100~220VAC |
| Input Frequency | 50Hz/60Hz |
| Output Voltage | 12VDC |
| Output Current | Up To30A |
| Maximum Output Current | 30A |
| Maximum Output Power | 360W |
| Voltage Adjustment | Via Potentiometer ( V ADJ ) |
| Cooling Method | Forced Air Cooling |
| Cooling Fan | Built In DC Fan |
| Power Indicator | LED Power Indicator |
| Protection Class | IP20 |
| Protection Features | Short Circuit, Overload, Over Voltage |

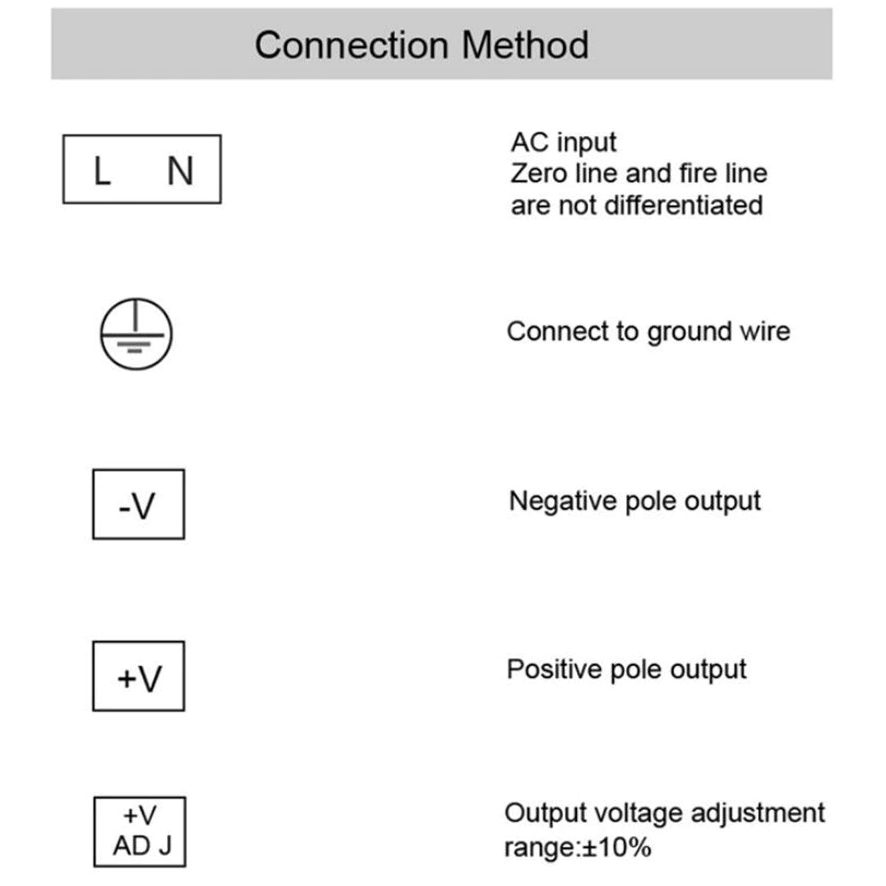

| Output Terminals | 3 × Positive ( +V ), 3 × Negative ( -V ) |
| AC Input Terminals | Live ( L ), Neutral ( N ), Earth ( ⏚ ) |
| Housing Material | Metal |
| Mounting Type | Chassis Mount |
| Dimensions | 215mm × 115mm × 50mm |
Applications
- LED strip lighting.
- CCTV security systems.
- Industrial automation.
- Access control systems.
- Communication equipment.
- 3D printers.
- CNC machines.
- Arduino projects.
- Robotics systems.
- DC motor applications.
- Battery charging systems.
- Electronic test equipment.
Package Contents
- 1 x Power Supply 12V 30A
