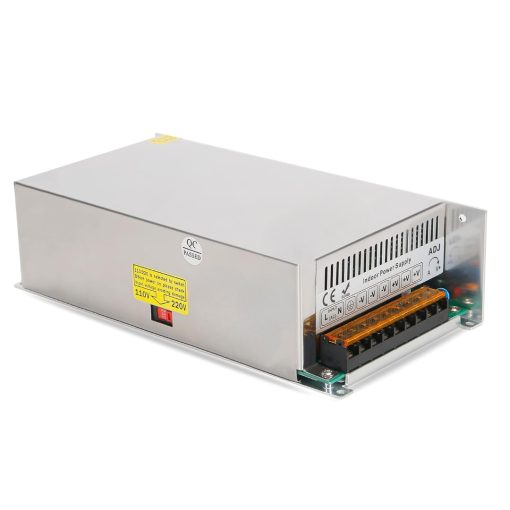

Power Supply 12V 60A
The Power Supply 12V 60A 720W Switching (S-720-12 Type) is a high-performance AC to DC power converter designed to deliver stable and reliable 12V output for demanding electronic and industrial systems. With a maximum output current of 60A and total power capacity of 720W, this unit is ideal for high-load applications requiring continuous and efficient power delivery.
Features:
- High output power of 720W with 12V DC output.
- Maximum output current up to 60A.
- Dual input voltage 110V/220V AC selectable via switch.
- Built-in cooling fan for efficient heat dissipation.
- Adjustable output voltage (±10%) for fine tuning.
Specifications:
| Parameter | Value |
|---|---|
| Model Type | S-720-12 |
| Output Voltage | 12VDC |
| Output Current | 60A |
| Output Power | 720W |
| Input Voltage | 110/220VAC Switch Selectable |
| Input Voltage Range | 90-132VAC / 176-264VAC |
| Input Frequency | 47-63Hz |
| Voltage Adjustment Range | ±10% |
| Efficiency | Up to83% |
| Ripple & Noise | ≤120mVp-p |
| Overload Protection | 105%-140% Auto Recovery |
| Overvoltage Protection | 115%-150% |
| Cooling Method | Fan Cooling |
| Operating Temperature | -20°Cto+60°C |
Applications:
- LED strip lighting and signage systems.
- CCTV and security systems.
- Industrial automation equipment.
- CNC machines and robotics.
- Telecommunications systems.
- 3D printers and high-power electronics.
Package Include:
1x Power Supply 12V 60A
