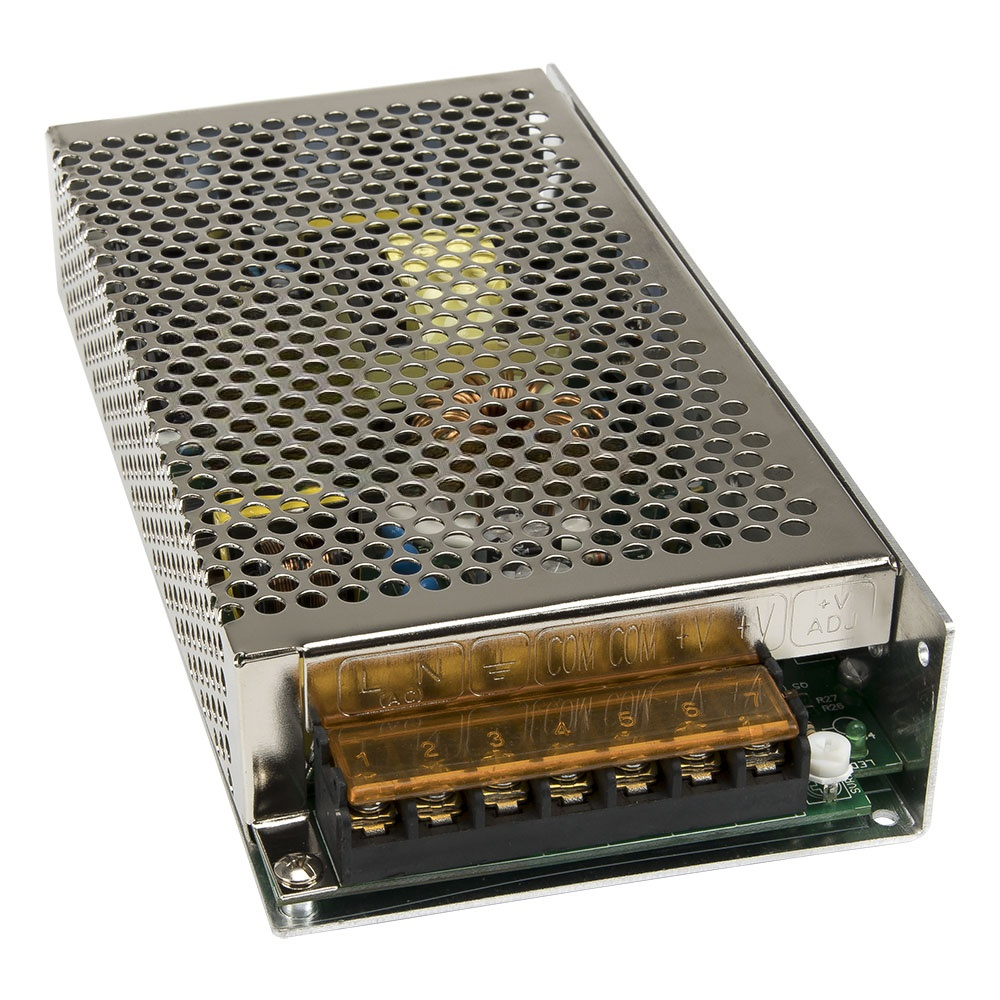

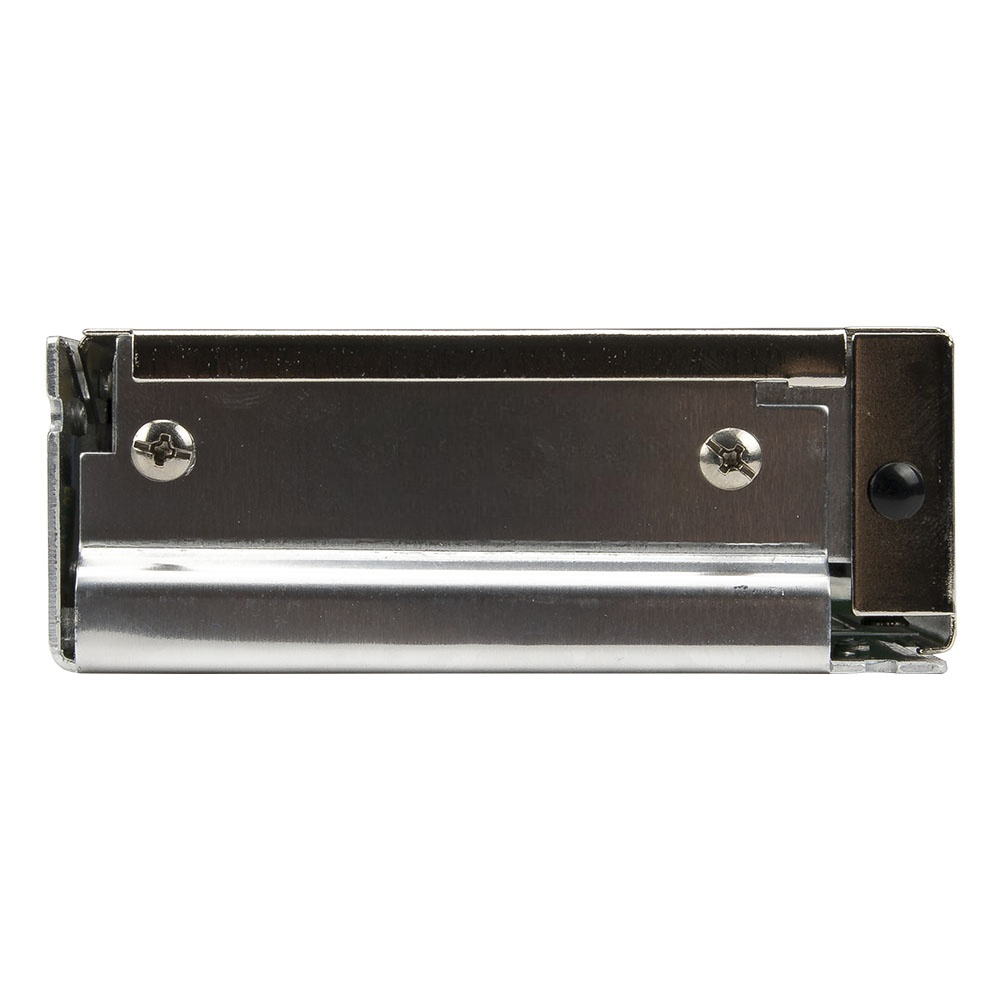

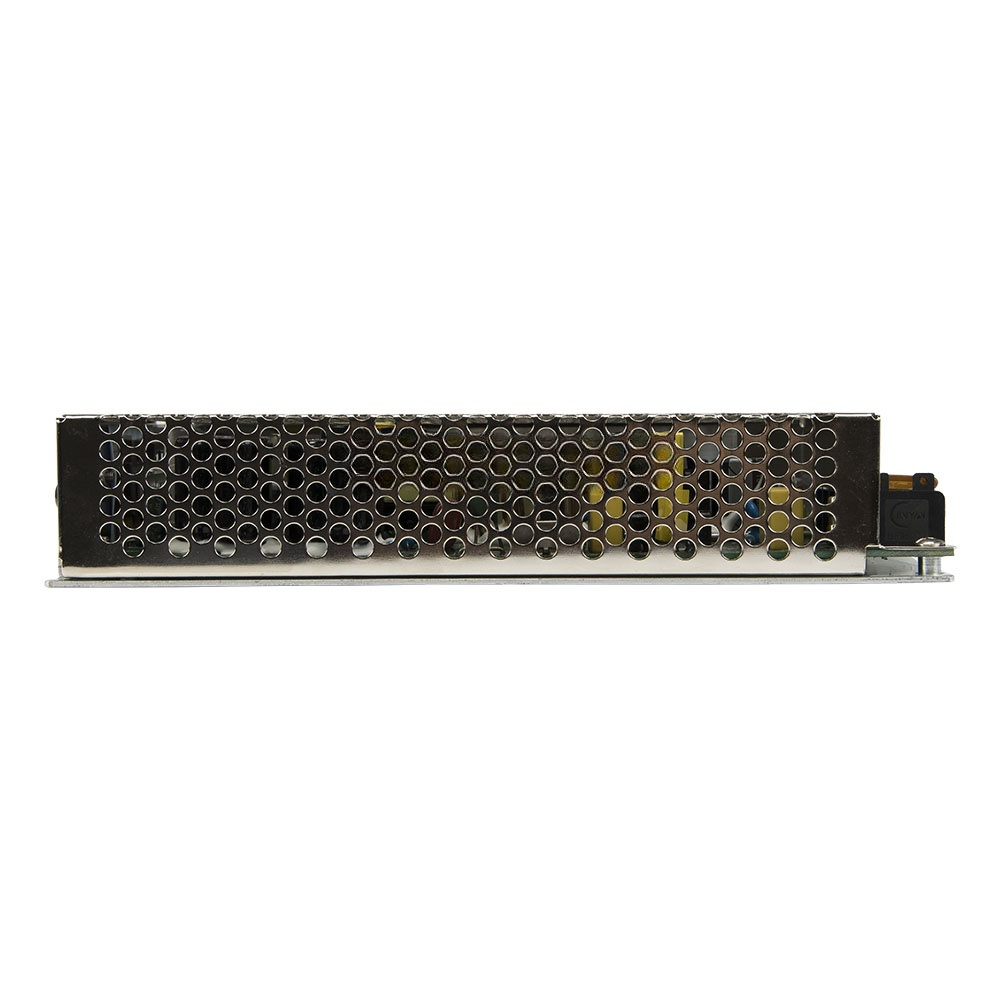

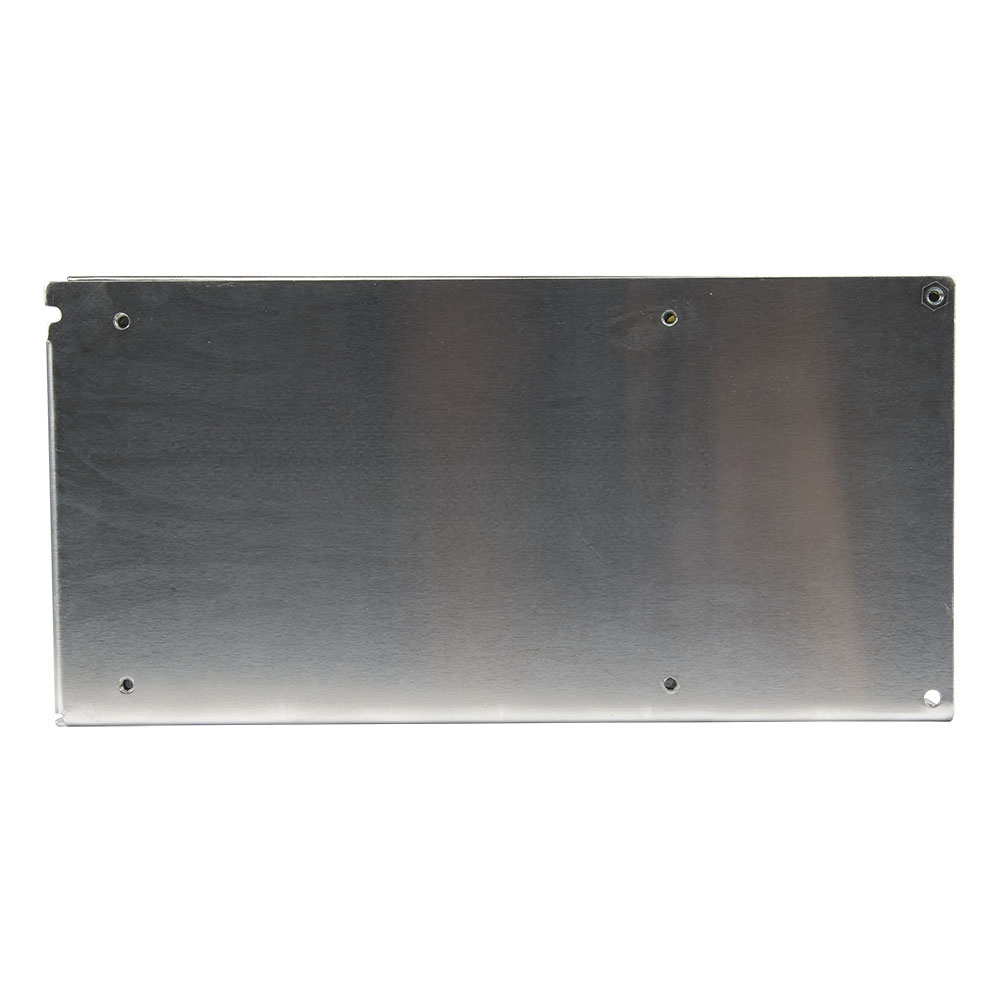

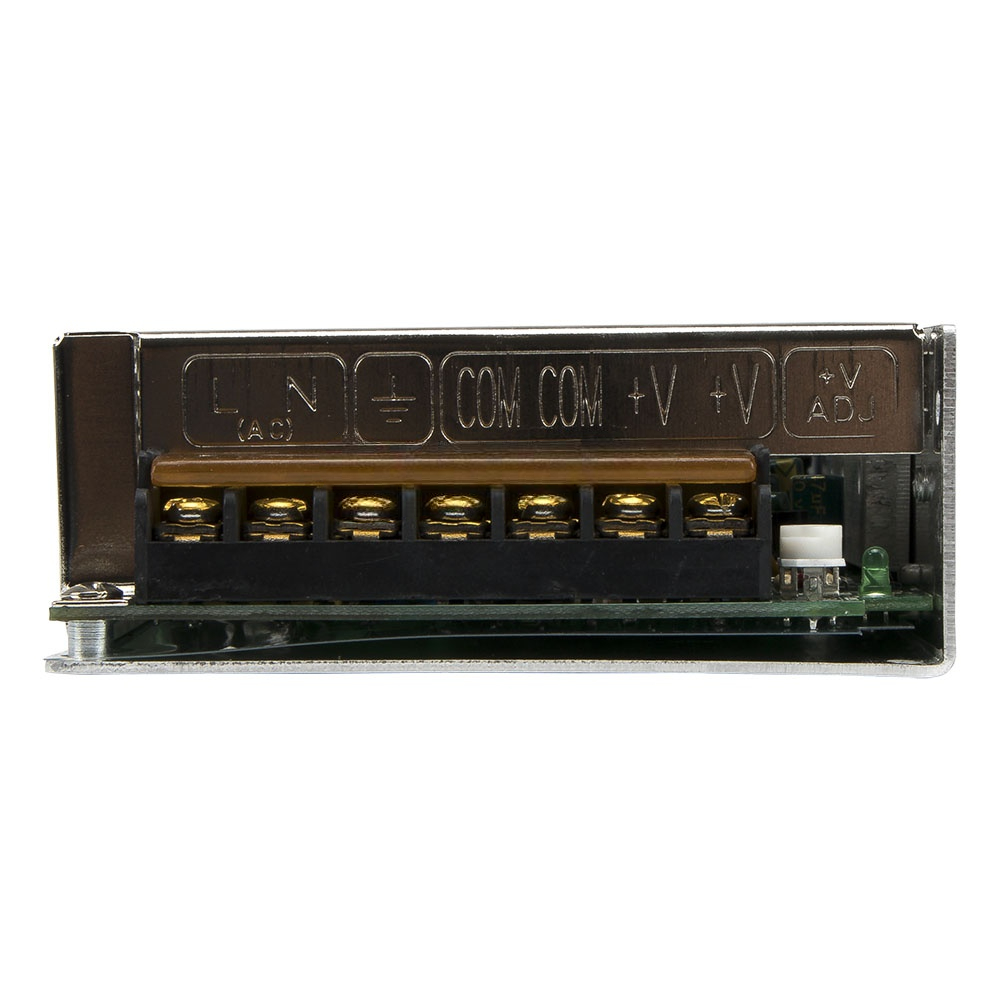

Power Supply 15V 10A
The Power Supply 15V 10A is a high-reliability 150W single-output switching power supply engineered for consistent and efficient DC power delivery in demanding environments. This unit utilizes advanced switching technology to provide a regulated 15VDC output at a maximum of 10A while maintaining excellent line and load regulation.
Features:
- Stable 15V DC output with 10A current capacity.
- Dual AC input 110V/220V selectable via switch.
- High efficiency.
- Built-in protections: overload, overvoltage, and short circuit.
- Metal enclosure for improved heat dissipation.
Specifications:
| Parameter | Value |
|---|---|
| Model Type | S-150-15 |
| Output Voltage | 15VDC |
| Output Current | 10A |
| Output Power | 150W |
| Input Voltage | 110/220VAC Switch Selectable |
| Input Frequency | 47-63Hz |
| Voltage Adjustment Range | 13.5-16.5V |
| Efficiency | Up to84% |
| Ripple & Noise | ≤100mVp-p |
| Overload Protection | 105%-150% Auto Recovery |
| Overvoltage Protection | 115%-135% |
| Operating Temperature | -10°Cto+60°C |

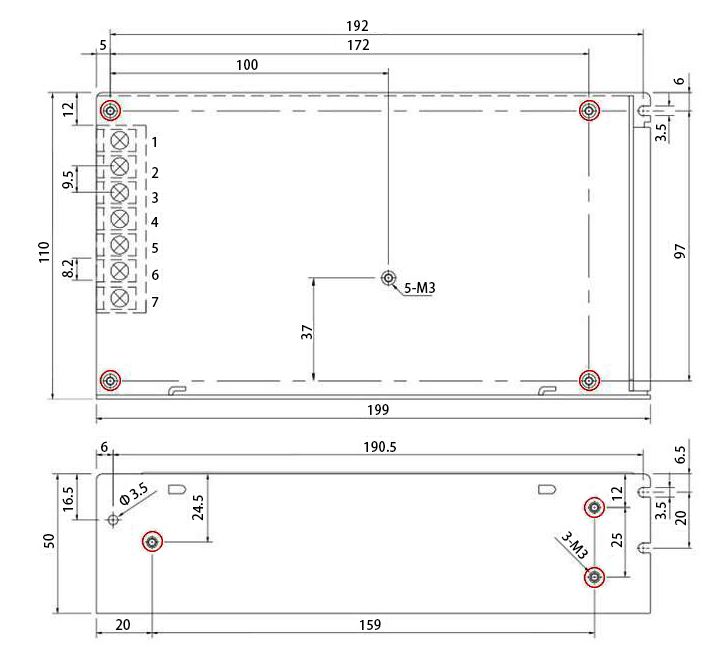

| Dimensions | 199×98×38mm |
| Cooling Method | Natural Air Cooling |

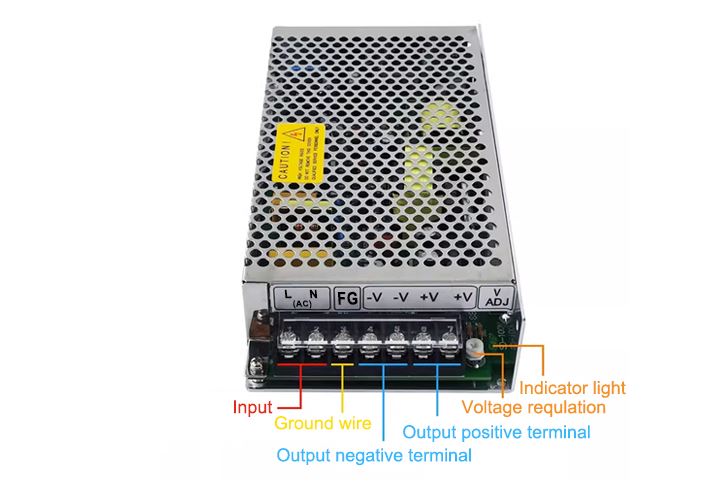

Configuration:
Applications:
- LED strip and lighting systems.
- CCTV and security systems.
- Industrial automation equipment.
- CNC machines and robotics.
- Communication devices.
- DIY electronics projects.
Package Include:
1x Power-Supply 15V 10A
