Power Supply 15V 8A
The Power Supply 15V 8A 120W Switching (S-120-15 Type) is a high-efficiency AC to DC converter designed to provide stable and reliable 15V DC output for a wide range of electronic and industrial systems. With a maximum output current of 8A and total output power of 120W, this unit is ideal for medium-power applications requiring consistent voltage regulation.
Features:
- Stable 15V DC output with 8A current capacity.
- Dual input voltage 110V/220V AC selectable via switch.
- Output power up to 120W.
- Adjustable output voltage (±10%) for fine tuning.
- High efficiency.
Specifications:
| Parameter | Value |
|---|---|
| Model Type | S-120-15 |
| Output Voltage | 15VDC |
| Output Current | 8A |
| Output Power | 120W |
| Input Voltage | 110/220VAC Switch Selectable |
| Input Voltage Range | 85-132VAC / 176-264VAC |
| Input Frequency | 47-63Hz |
| Voltage Adjustment Range | ±10% |
| Efficiency | Up to81% |
| Ripple & Noise | ≤60mVp-p |
| Overload Protection | 105%-150% Auto Recovery |
| Operating Temperature | -10°Cto+60°C |

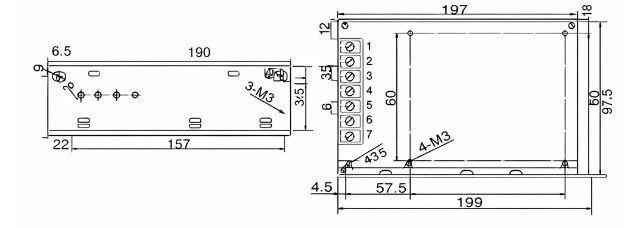

| Dimensions | 199×98×38mm |
| Cooling Method | Natural Air Cooling |
Configuration:
Applications:
- LED lighting systems and strips.
- CCTV and security systems.
- Industrial automation equipment.
- CNC machines and control systems.
- Communication equipment.
- DIY electronics and embedded systems.
Package Include:
1x Power Supply 15V 8A
