Power Supply 36V 5A

Compact 36 V, 5 A (180 W) SMPS power supply with wide AC input, overload protection, and passive cooling ideal for industrial and LED systems.

485.00 EGP

In stockSKU 9153673825201
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Availability: In Stock
SKU:9153673825201

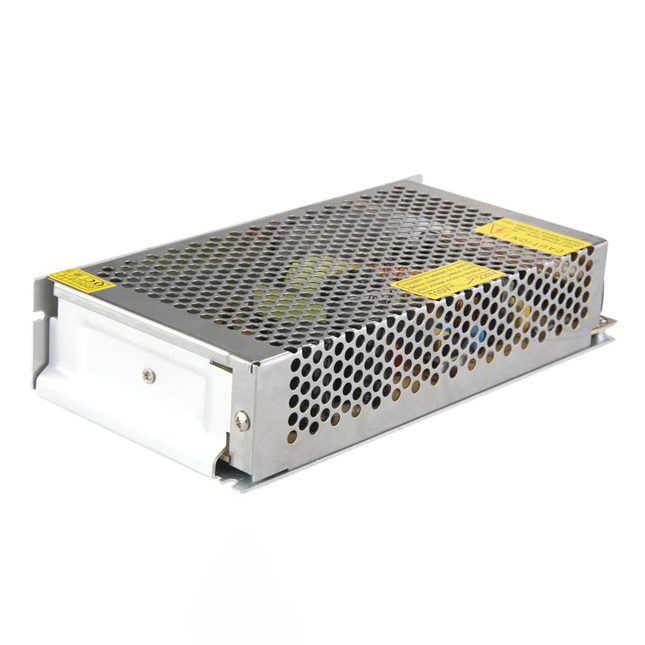

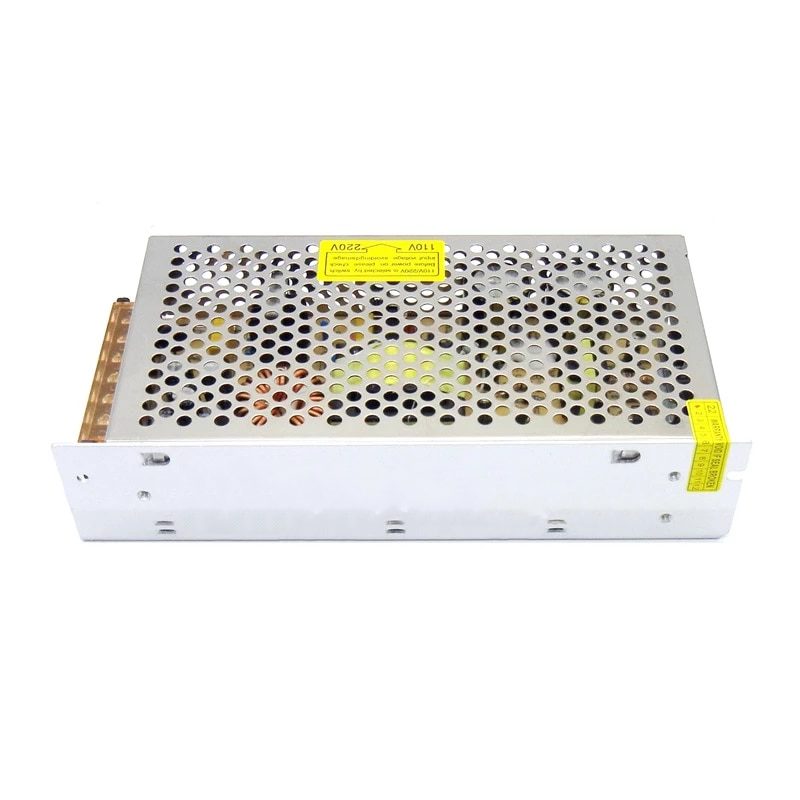

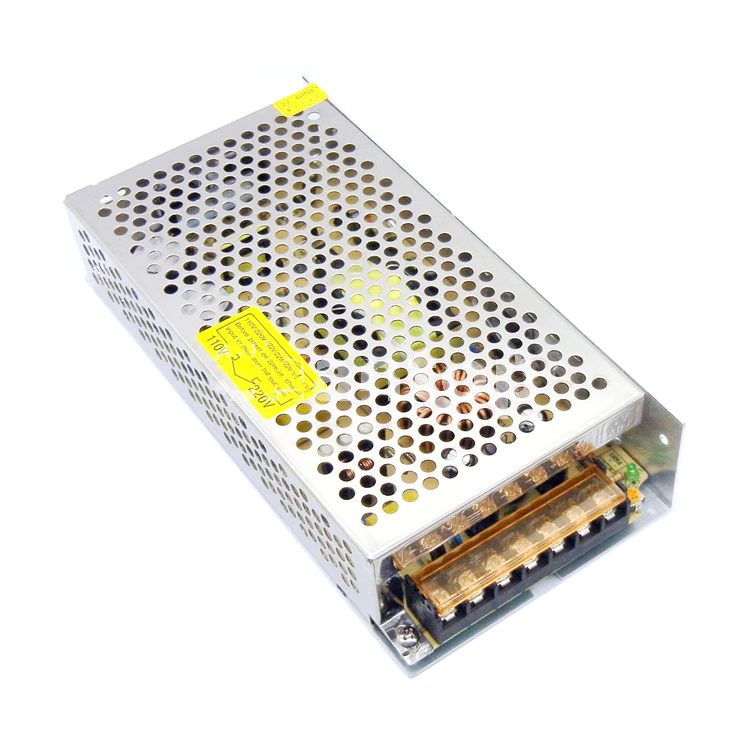

Power Supply 36V 5A

The 36 V 5 A power supply is a compact switched-mode DC converter designed to deliver a stable 36-volt output with a maximum current of 5 amps. Although it is relatively modest in power compared to some larger supplies, it still provides a solid 180 W of continuous output, making it well suited for applications that require reliable medium-power DC voltage. Its universal AC input allows use in different regions, drawing from a broad range of mains voltages.

Internally, the unit uses efficient switching regulation, which helps minimize wasted energy and reduces excess heat generation. The design typically features built-in protections over-load, over-voltage, and short circuit that allow the power supply to recover automatically when a fault clears. Because of this, the supply is not only efficient but also quite robust and safe to use in many environments.

Physically, the device is generally compact with a metal enclosure, allowing passive cooling (by natural convection) without the need for a fan. That makes it quieter, more reliable, and easier to install in tight spaces. It’s a versatile solution for systems like LED lighting, industrial control, or other 36 V-powered equipment that don’t require very high current, offering a dependable DC source in a small footprint.

Features:
  • Universal AC input (100–240 V).
  • Efficient switching-mode design.
  • Built-in protection: overload, over-voltage, short-circuit .
  • 100% full-load burn-in test.
  • Cooling by free-air convection (no fan).
  • LED indicator for power status
  • Simple and easy-to-use design
  • Low-cost metal case power supply
  • Space saving and producing very low noise
Specifications
Parameter Value
Output Voltage: 36 VDC
Rated Current: 5 A
Rated Power: 180 W (36 V × 5 A)
Input Voltage Range: ~110–220 VAC
Frequency: 50–60 Hz
Efficiency: ~85–90%
Voltage Regulation: Line: ~±0.5%; Load: ~±2%
Ripple & Noise: Up to ~250–300 mV p-p
Protection: Overload, Short-circuit, Over-voltage, Over-temperature
Operating Temperature Range: About –10 °C to +60 °C
Dimensions: 200 × 98 × 42 mm
Applications:
  • LED lighting systems.
  • Industrial control systems.
  • CNC / stepper-motor systems.
  • Security / surveillance systems.
  • Communication / network equipment.
Package Contents:
  • 1x Power Supply 36V 5A
