Push Button 3x6x5.0mm Dip 2 Pin (Black)
A compact tactile Push Button switch used for momentary input control in electronic circuits and PCB designs.
1.25 EGP
Buy NowPush Button 3x6x5.0mm Dip 2 Pin (Black)

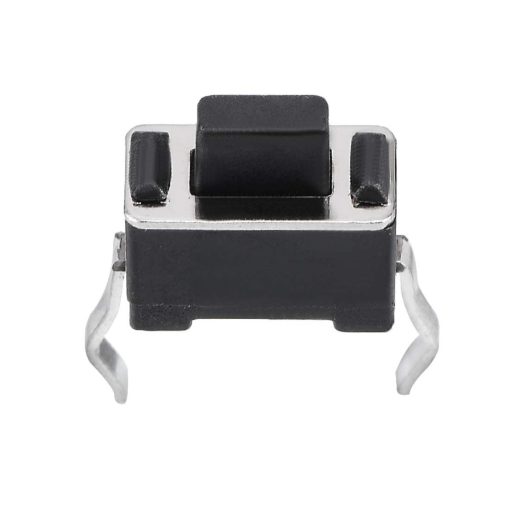

The Push Button 3x6x5.0mm DIP 2 Pin (Black) is a miniature tactile switch designed for through-hole mounting on printed circuit boards. It operates as a momentary switch, meaning the circuit is only connected while the button is pressed, making it ideal for user input functions such as reset, triggering, or mode selection in electronic devices. Its small footprint allows it to fit easily into compact designs and densely populated PCBs.
Built with durability and reliability in mind, this push button provides clear tactile feedback to ensure accurate operation. It is widely used in prototyping, embedded systems, and consumer electronics. The standard DIP pin configuration allows easy integration with breadboards and soldering onto PCBs, making it a popular choice for engineers, students, and hobbyists alike.
Features:
- Compact and lightweight design.
- Momentary (non-latching) operation.
- Tactile feedback for precise input.
- Through-hole mounting for secure installation.
- Easy to use with breadboards and PCBs.
- Durable construction for long lifespan.
- Standard 2-pin configuration.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Pushbutton |
| Button Color | Black |
| Number of Poles | 1 |
| Contacts Configuration | Closing |
| Switch Position | OFF / ON |
| Mechanical Controller | Button |
| Number of Contacts | 2 |
| Termination Style | Solder Pin |
| Rated Voltage (DC) | 12 V |
| Rated Current | 50 mA |
| Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 100 MΩ |

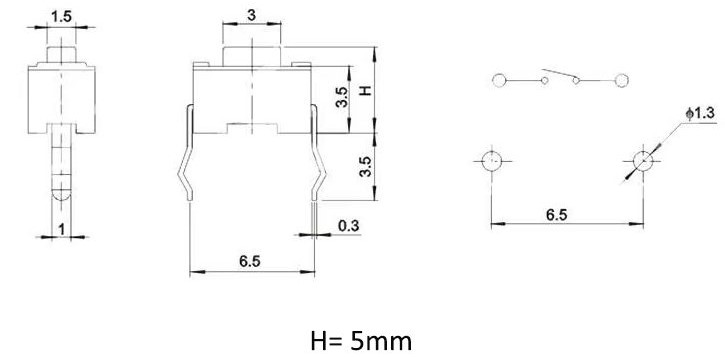

| Dimensions (Length × Width × Height) | 6 × 3.5 × 5 mm |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | 60 °C |
| Weight | 2 g |
Applications:
- Arduino and microcontroller input buttons.
- Reset and control switches.
- DIY electronics and prototyping.
- Consumer electronic devices.
- Control panels and embedded systems.
- Signal triggering circuits.
Package Includes:
- 1x Push Button 3x6x5.0mm Dip 2 Pin (Black).
