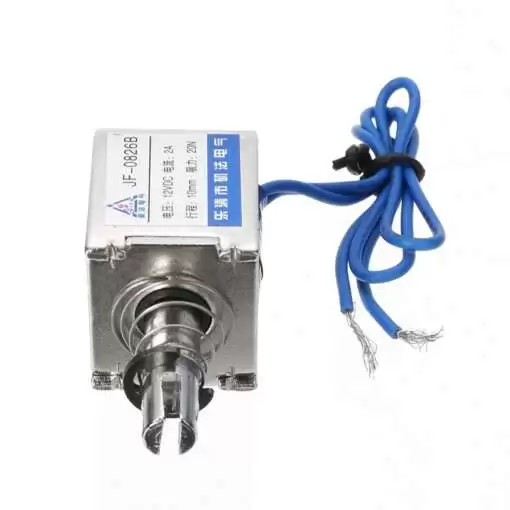

Push Type Linear Solenoid JF-0826B 12V 2A 10mm 20N
265.00 EGP
Out of stockSKU 1830666434630
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Description
Solenoids are a great way to induce linear motion for pushing, pulling or controlling switches and levers.This solenoid is designed to work directly with 12V which makes it a great match for embedded projects. It has a throw of about 10mm and 2 M3 mounting holes on the body.
- Open frame style, open coil shape, integrated mounting board, DC electronic magnet.
- Stable and reliable.
- Durable in use.
- Used in ATM, vending machines, electronic home appliances, embroidery machines, smart lock, juice bread machine, textile machines, cash register or other automatic control devices.
Notes
- Warning: solenoids should only be activated for a few seconds at a time to avoid overheating!
Specifications
- Model: JF-0826B
- Material: Metal, electronic parts
- Color: As shown in the picture
- Race: 10mm
- Metal frame size: approx. 27 x 25 x 22mm
- Bobbin size: approx. 19 x 17mm
- Total length: approx. 55mm
- Plunger diameter: approx. 7.4mm
- Cable length: approx. 190mm
- Rated voltage ( Rated current ): 12 V DC
- Rated current: 2A
- Force: 20N / 2Kg / 4.4LB
- Connection type: Bare wire
