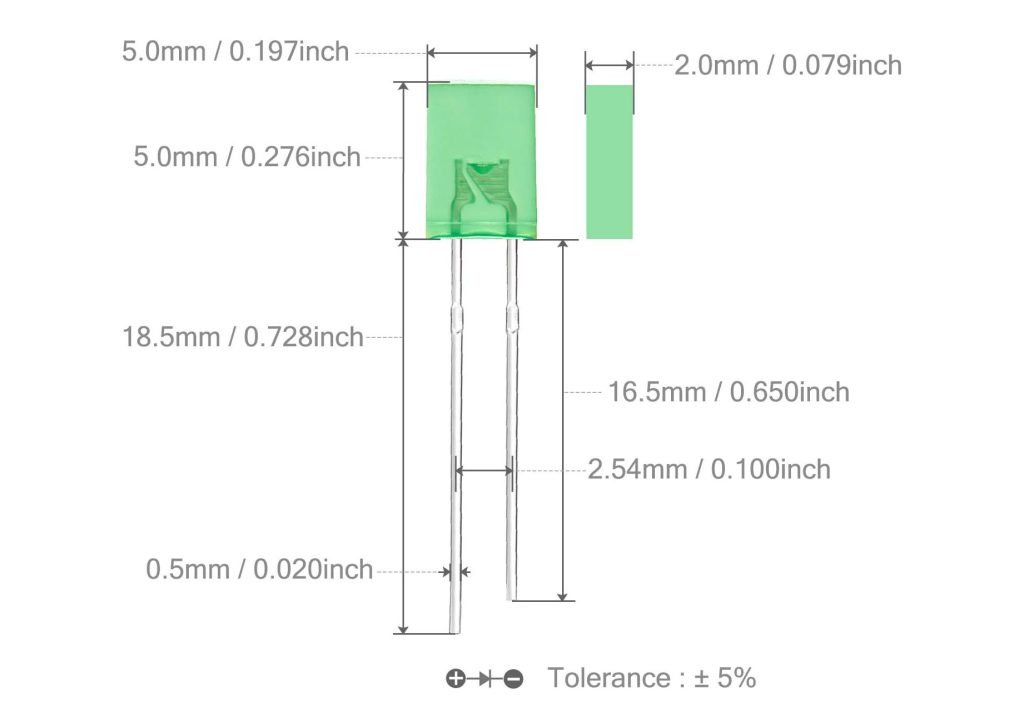

Q1335 Rectangular Green LED TH 2x5x5mm 520-525nm
The LM-Q1335FDQ-S1 is a green rectangular through-hole LED designed for visual indication in electronic circuits and equipment. It produces green light in the 520–525 nm wavelength range and can be used wherever a compact, clearly visible indicator is required. Its two-lead through-hole construction makes it suitable for direct PCB mounting and prototype circuits.
This LED is useful for power indicators, operating-status indicators, control panels, DIY electronics, microcontroller projects, and general-purpose signal indication. It can be driven from suitable DC circuits with an appropriate current-limiting resistor to protect the LED and control its operating current.
Features:
- Green light emission.
- Rectangular LED body.
- Through-hole mounting.
- Two-lead construction.
- Suitable for PCB assembly.
- Suitable for visual status indication.
- Compatible with general electronic circuits.
- Compact and easy to install.
- Lite-Max branded component.
Specifications:
| Parameter | Data |
|---|---|
| Manufacturer | Lite-Max Optoelectronics Co., Ltd. |
| Part Number | LM-Q1335FDQ-S1 |
| Component Type | Through-Hole LED |
| Package Style | Rectangular / Flat-Type LED, 2 Leads |
| LED Color | Green |
| Dominant Wavelength (λD) | 520 – 525 nm |
| Forward Voltage (VF) | 3.0 – 3.6 V |
| Luminous Intensity (IV) | 460 – 620 mcd |
| Number of Pins | 2 |
| Mounting Type | Through-Hole (THT) |
| Polarity | Anode (+) / Cathode (−) |
| Original Bag Quantity | 300 pcs |
Pinout:
| Pin | Connection | Description |
|---|---|---|
| 1 | Anode (+) | Positive LED terminal |
| 2 | Cathode (−) | Negative LED terminal |
Applications:
- Power and status indicators.
- PCB indicator lights.
- Control panels.
- Electronic equipment.
- Microcontroller projects.
- Arduino projects.
- DIY electronics.
- Instrument panels.
- Signal indication.
- Prototype circuits.
- Industrial control equipment.
Packages Included:
- 1 × Q1335 Rectangular Green LED TH 2x5x5mm 520-525nm.
