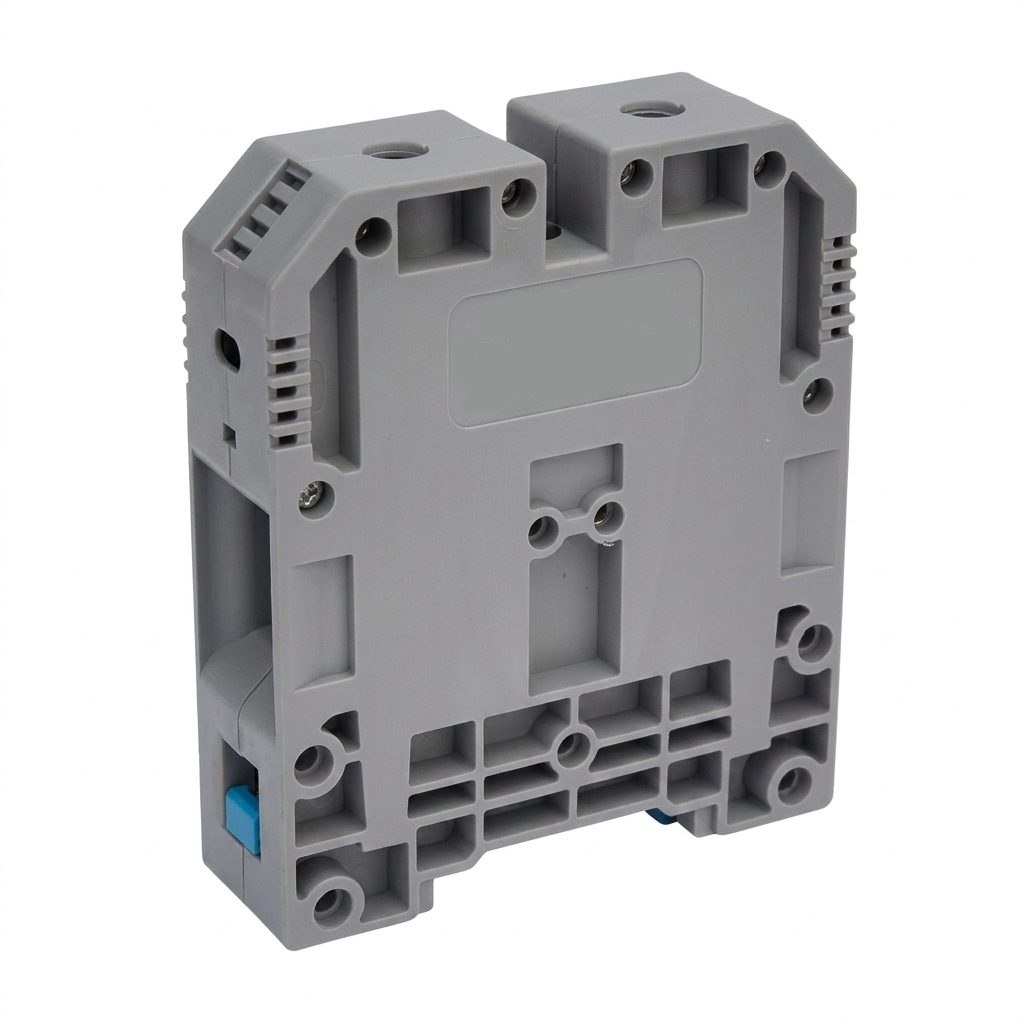

Rail Terminal Block (MRK-95)
The MRK-95 Rail Terminal Block is a high-current screw-clamp terminal designed for mounting on standard 35mm DIN rails. It accommodates conductors up to 95mm², making it ideal for power distribution, industrial control panels, switchgear, and electrical cabinets. Its robust insulated body and heavy-duty metal conductor provide a secure, low-resistance electrical connection while ensuring safe operation in demanding environments.
Manufactured from high-quality flame-retardant insulating material with a copper conductive bridge, the MRK-95 offers excellent mechanical strength and long-term reliability. The screw-clamp connection provides a firm grip on large conductors, reducing maintenance requirements and ensuring stable electrical performance in industrial and commercial installations.
Features:
- DIN rail mountable design.
- Heavy-duty screw-clamp connection.
- Supports large cross-section conductors.
- High current carrying capability.
- Durable flame-retardant insulating body.
- Low contact resistance.
- Secure mechanical wire retention.
- Easy installation and maintenance.
- Suitable for industrial control panels.
- Reliable long-term electrical performance.
Specifications:
| Specification | Value |
|---|---|
| Model | MRK-95 |
| Product Type | Rail Terminal Block |
| Mounting Type | 35mm DIN Rail |
| Connection Type | Screw Clamp |
| Rated Conductor Size | 95mm² |
| Rated Voltage | 1000V |
| Rated Current | 232A |
| Housing Material | PA6.6 (Flame-Retardant Polyamide) |
| Conductive Material | Copper |
| Contact Material | DKP |
| Screw Material | Steel |
| Tightening Torque | 6 Nm |
| Cable Strip Length | 20 mm |
| Operating Temperature | -40°C to +140°C |
| Standard | EN 60947-7-1 |
Applications:
- Industrial control panels.
- Power distribution cabinets.
- Electrical switchboards.
- Machine wiring.
- Motor control centers.
- Automation systems.
- Renewable energy systems.
- Distribution panels.
- Factory electrical installations.
- Heavy-duty power wiring.
Package Includes:
- 1x Rail Terminal Block (MRK-95).
