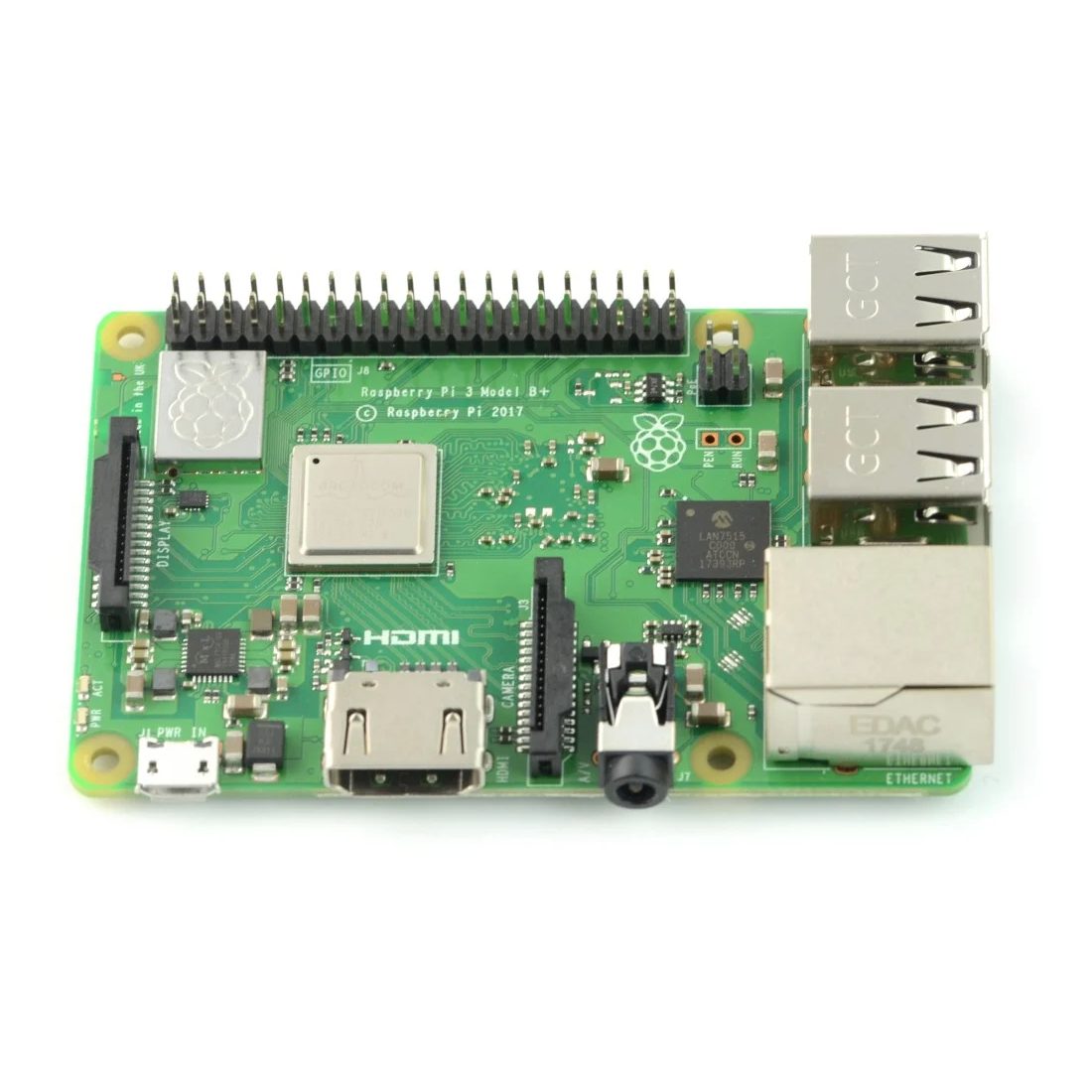

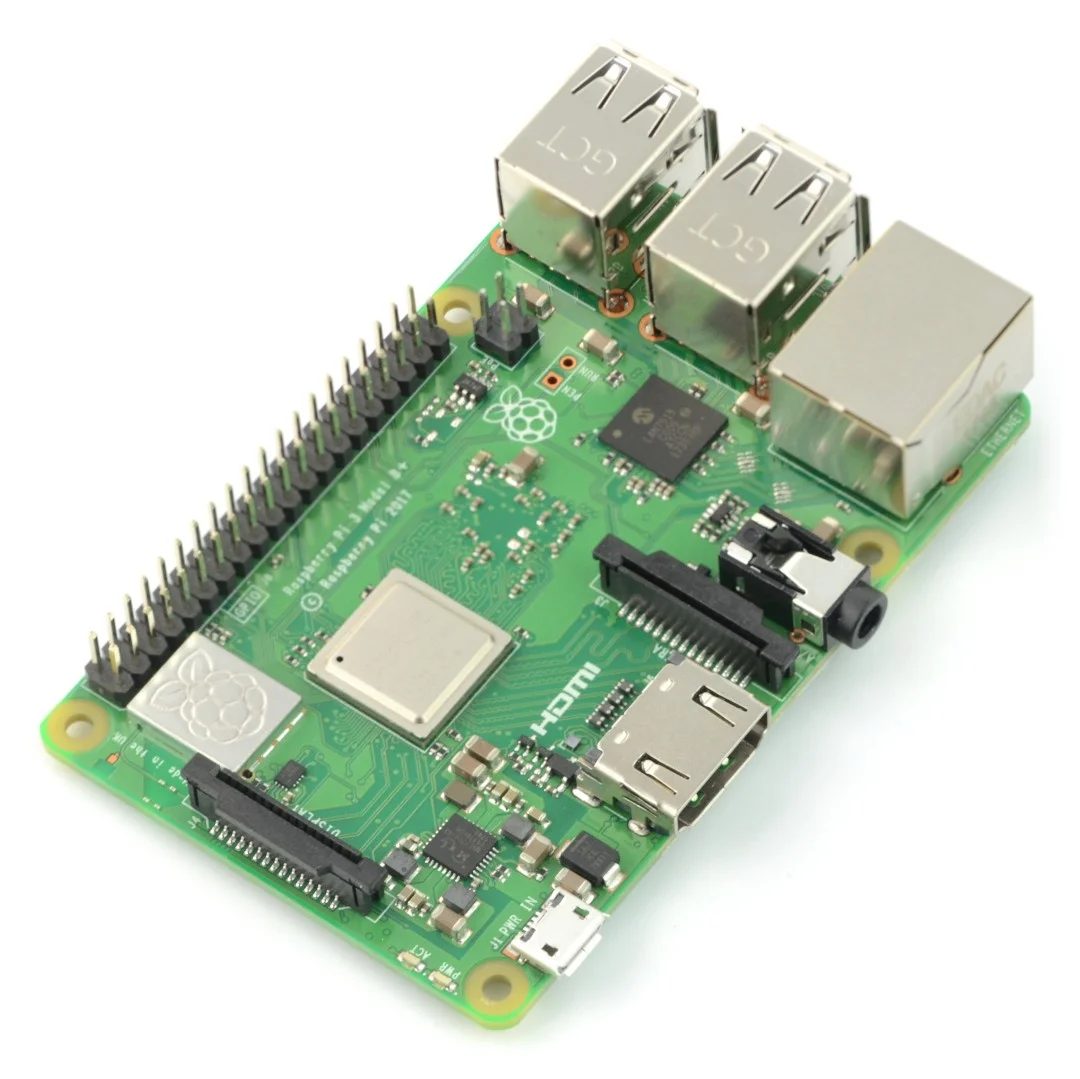

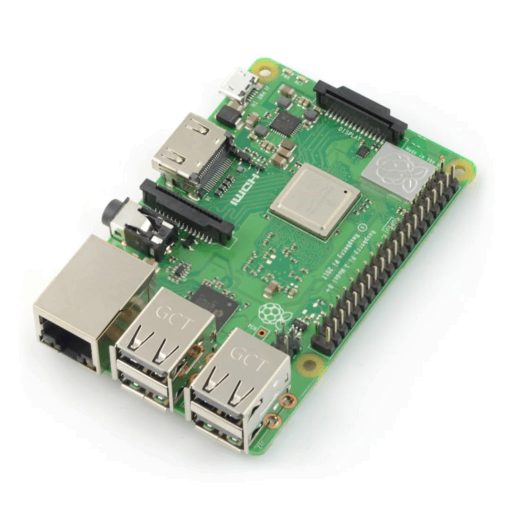

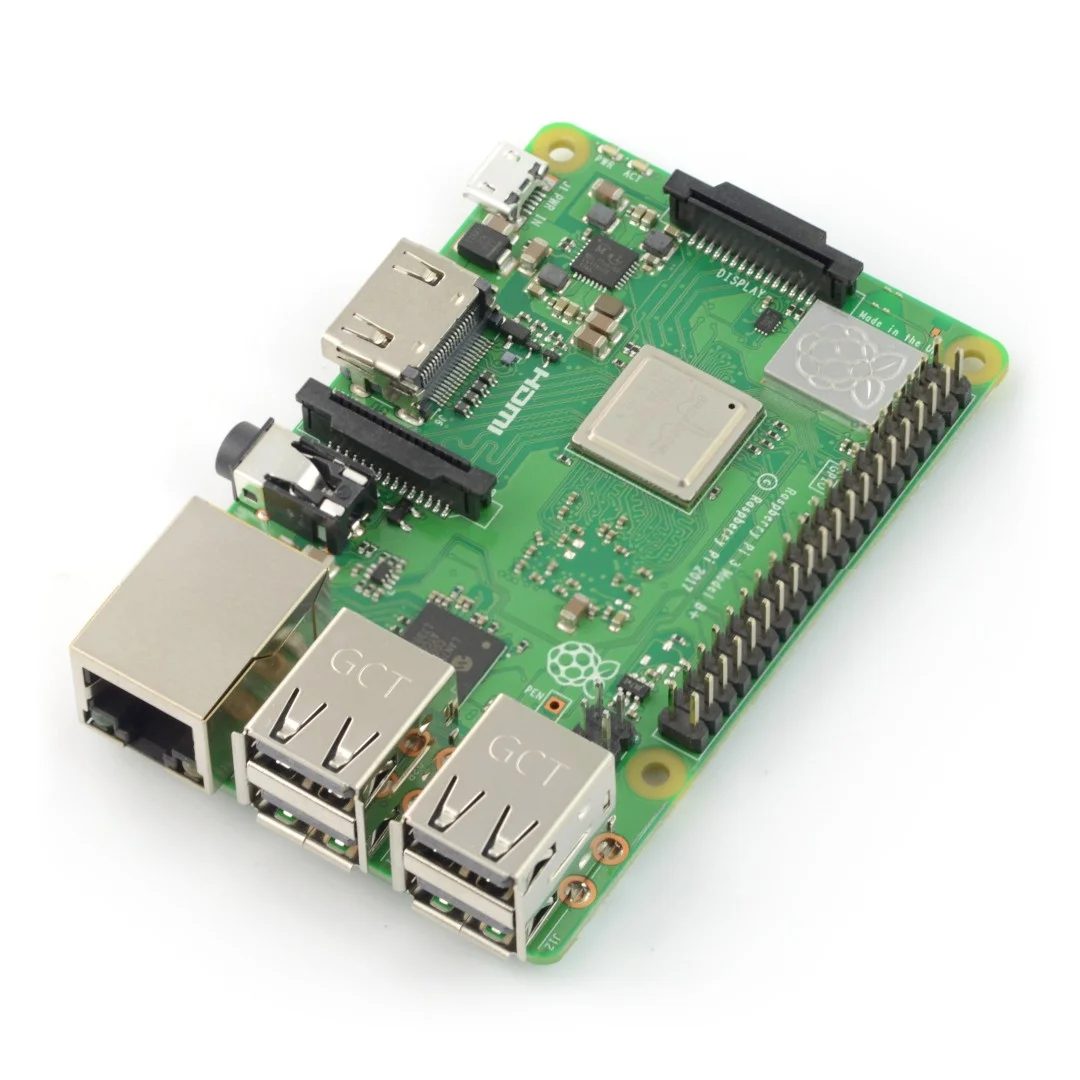

Raspberry Pi 3 Model B+ WiFi DualBand BT 1GB RAM 1.4GHz – Made in UK
The Raspberry Pi 3 Model B+ is a compact and powerful single-board computer designed for developers, students, hobbyists, and embedded system engineers. Powered by a 64-bit quad-core processor running at 1.4GHz with 1GB RAM, it delivers reliable performance for programming, automation, networking, multimedia, and industrial control applications. The onboard dual-band WiFi and Bluetooth connectivity make wireless communication easy without requiring external adapters.
This board includes USB ports, HDMI output, Ethernet connectivity, CSI and DSI interfaces, and a 40-pin GPIO header for interfacing with sensors, displays, relays, motors, and other electronic modules. It supports Linux-based operating systems and can be programmed using Python, C++, Node.js, and many other languages. The Raspberry Pi 3 Model B+ is widely used in educational environments, smart home systems, AI edge projects, surveillance systems, retro gaming consoles, and IoT gateways.
Features:
- Compact single-board computer design.
- Built-in dual-band WiFi connectivity.
- Integrated Bluetooth and BLE support.
- Gigabit Ethernet over USB interface.
- 40-pin GPIO expansion header.
- HDMI output for video and audio.
- CSI camera interface support.
- DSI display interface support.
- USB ports for peripherals and accessories.
- Supports Linux operating systems.
- Compatible with various Raspberry Pi HATs and modules.
- Low power consumption.
- Suitable for IoT and embedded applications.
- MicroSD card operating system support.
- Excellent community and software ecosystem.
Specifications:
| BASIC INFORMATION | |
| Model | Raspberry Pi 3 model B+ |
| Edition | 3 – 2018. |
| Chipset processor | Broadcom BCM2837B0 64-bit |
| The core | Quad-Core ARM Cortex-A53 |
| Operating systems | Linux Raspbian
Windows 10 flight |
| Clock frequency | 1.4 GHz |
| Architecture | ARMv8-A |
| RAM | 1 GB LPDDR2 @ 900 MHz |
| Memory | microSD memory card |
| Connector GPIO | Connector 40-pin (2×20 pin)
raster 2.54 mm |
| Power | · 5.0 V / 2.5 A via microUSB· 5 V through GPIO· PoE with additional pads |

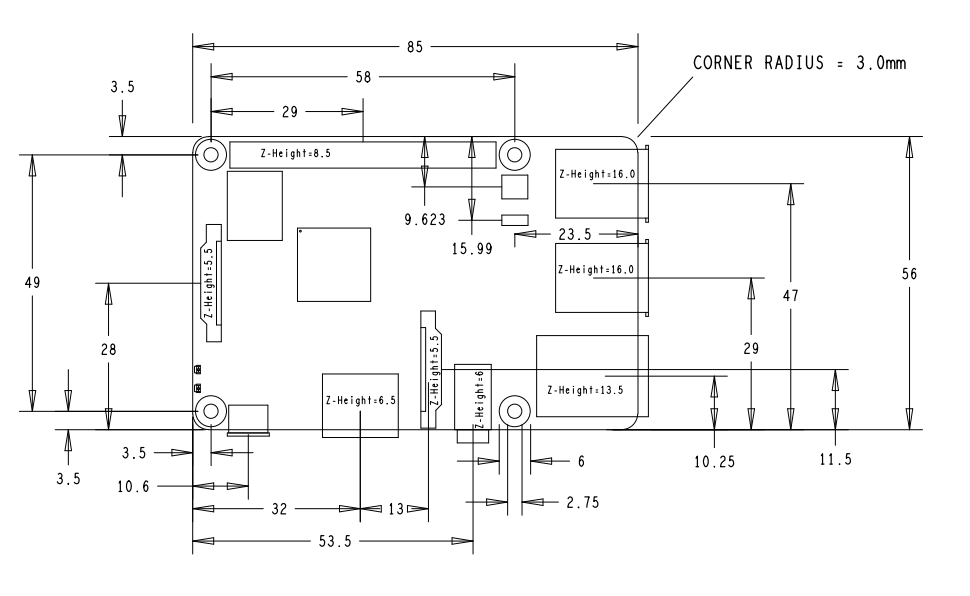

| Tile sizes | 85 x 56 x 17 mm |
| INTERFACES | |
| USB interface | 4x USB 2.0 – connector type a |
| Network interface | Ethernet port 100/1000 Mbps |
| The Wi-Fi Interface | Dual Band (2.4 GHz and 5 GHz
802.11 b/g/n/ac |
| Bluetooth | Low Energy, BLE 4.2 |
| Camera | the CSI connector |
| Touchscreen display | connector for DSI |
| Video | HDMI HD 1080px / 30 fps
1080p30 H. 264 OpenGLES 1.1, 2.0 |
| Communication | UART, SPI, I2C, GPIO |
Applications:
- IoT projects.
- Smart home automation.
- Robotics systems.
- Industrial monitoring.
- Embedded Linux development.
- Network servers.
- Media center systems.
- Retro gaming consoles..
- AI edge computing
- Surveillance and camera systems.
- Educational programming platforms.
- Sensor monitoring systems.
Package Included:
- 1x Raspberry Pi 3 Model B+ WiFi DualBand BT 1GB RAM 1.4GHz – Made in UK.
