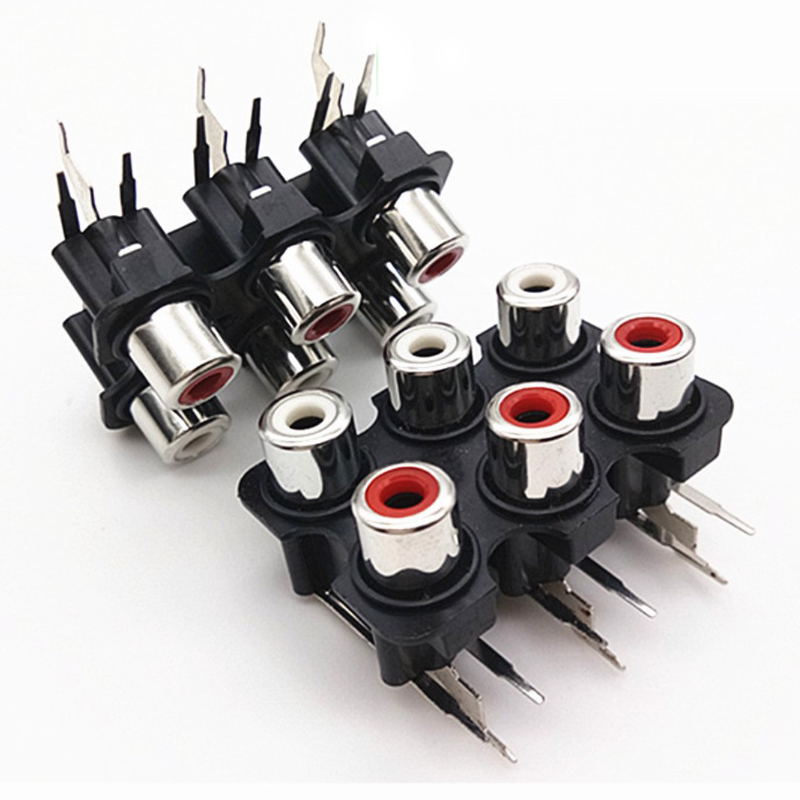

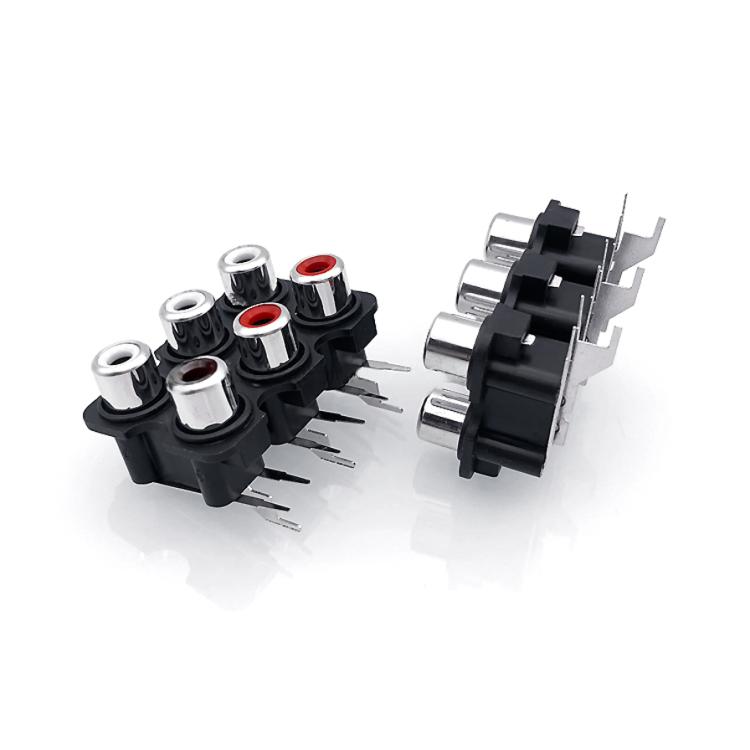

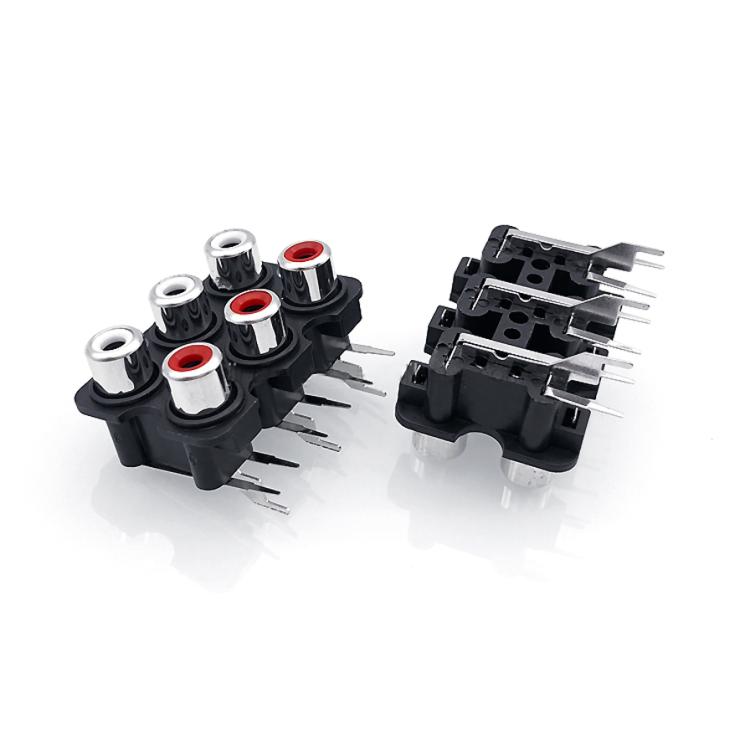

RCA Jack Audio Female Connector 6 Port for PCB
The 6-Port RCA Female PCB Connector is a high-quality, right-angle audio/video socket designed for seamless integration into electronic circuit boards. Featuring a compact stacked layout, this connector provides six independent RCA ports in a single housing, saving significant board space. It is color-coded (typically Red for Right audio and White for Left audio) to ensure easy identification and error-free user connections.
Features
- 6-Port High-Density Layout
- Standard Color-Coding
- Right-Angle PCB Mount
- Mechanical Stability
- Universal Compatibility

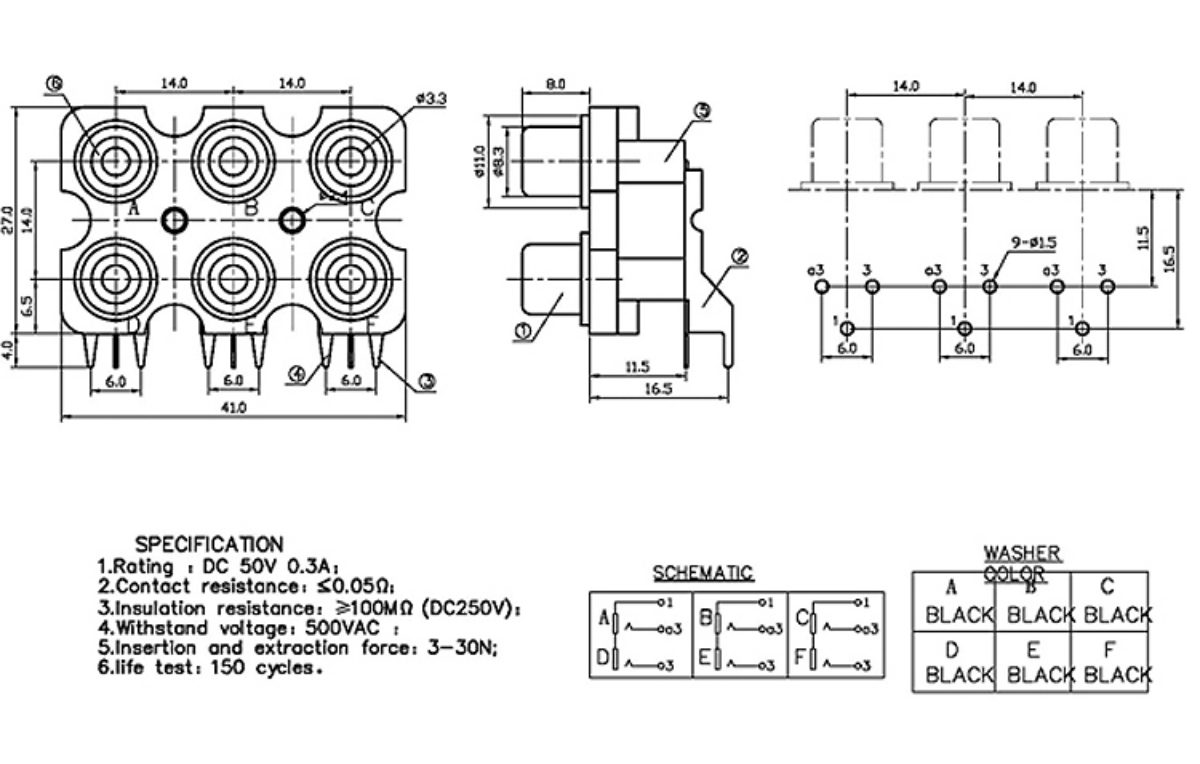

Specifications
| Parameter | Specification |
|---|---|
| Configuration | 6-Port RCA Female (2×3 Stacked) |
| Electrical Rating | DC 50V, 0.3A |
| Contact Resistance | ≤ 0.05Ω |
| Insulation Resistance | ≥ 100MΩ (at 250V DC) |
| Withstand Voltage | 500V AC |
| Insertion/Extraction Force | 3N — 30N |
| Mounting Type | Right-Angle PCB Through-Hole |
Applications
- Home Entertainment
- Audio Systems
- Computing
- DIY Projects
Package Content
- 1 x RCA Jack Audio Female Connector 6 Port for PCB
