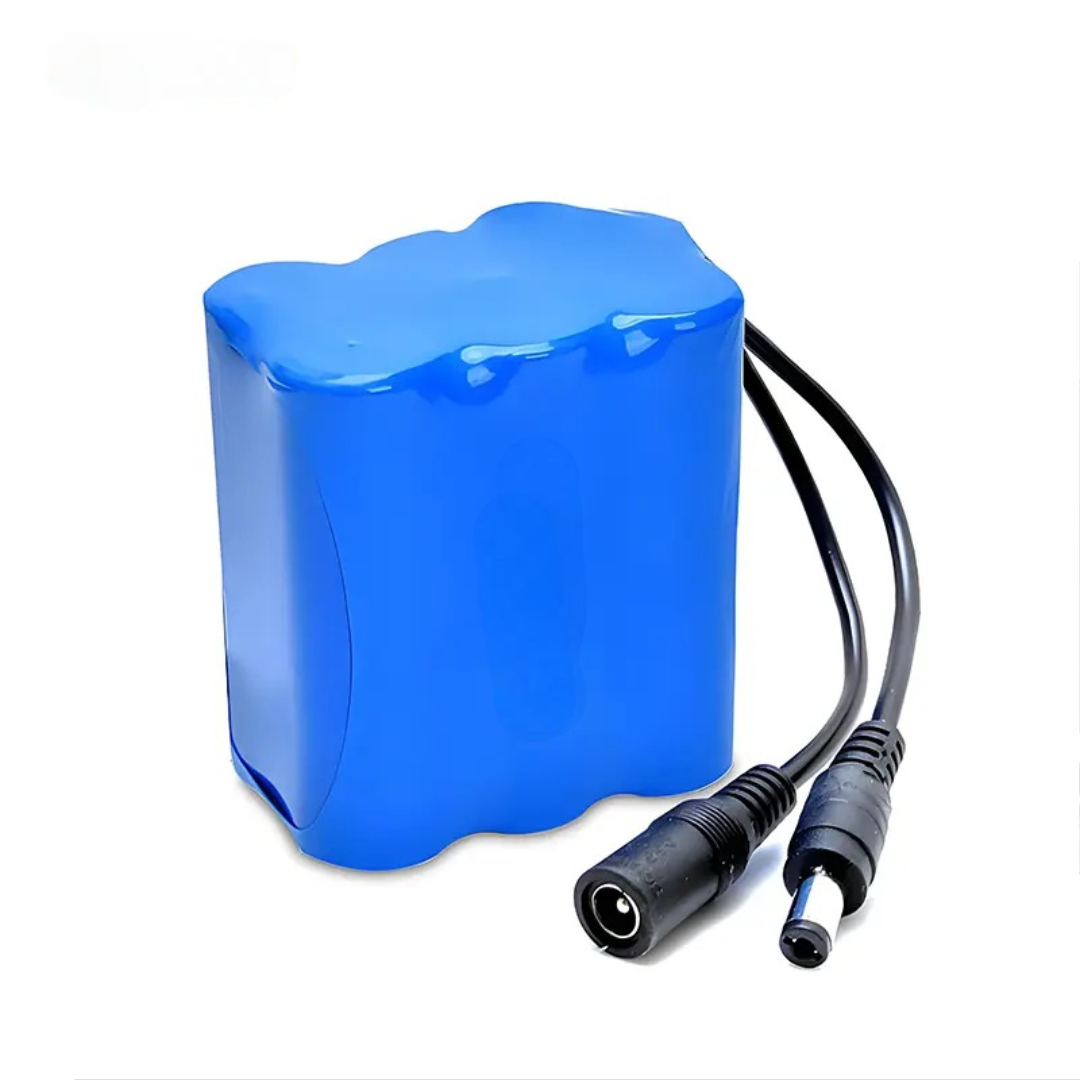

Rechargeable 12V Li-ion Battery Pack with BMS – 18650 3S-2P 6700mAh (Panasonic Cell)
This rechargeable Li-ion Battery pack uses six 18650 cells arranged in a 3S-2P configuration, with three cells connected in series and two cells in parallel per series group. This arrangement provides a nominal voltage of 11.1V, commonly marketed as a 12V battery pack, with a stated capacity of 6700mAh . The pack is suitable for applications requiring a compact, rechargeable DC power source.
The integrated Battery Management System (BMS) helps protect the battery during operation by managing cell-group voltage and providing protection against conditions such as overcharging, over-discharging, and excessive current, depending on the BMS design. Use a charger specifically intended for a 3-series lithium-ion battery pack, and verify the pack’s charging voltage, discharge-current rating, connector polarity, and BMS specifications before connecting it to a device.
Features:
- Rechargeable lithium-ion battery technology.
- Six-cell 18650 battery pack configuration.
- Integrated Battery Management System (BMS).
- Series-parallel cell arrangement.
- Compact design for portable power applications.
- New battery cells.
- Designed for repeated charging and discharging.
- Suitable for compatible 12V-class electronic equipment.
Specifications:
|
Parameter |
Description |
|---|---|
|
Product Type |
Rechargeable Li-ion Battery Pack |
|
Cell Type |
18650 Lithium-ion |
|
Cell Configuration |
3S-2P |
|
Number of Cells |
6 |
|
Nominal Voltage |
11.1V |
|
Full-Charge Voltage |
12.6V |
|
Capacity |
6700mAh (3Ah) |
|
Nominal Energy |
33.3Wh |
|
Battery Management |
Integrated BMS |
|
Cell Condition |
New |
|
Rechargeable |
Yes |
|
Battery Chemistry |
Lithium-ion |
Applications:
- Portable 12V-class electronic devices
- LED lighting systems.
- DIY electronics and robotics.
- Portable monitoring equipment.
- Small DC-powered devices.
- Battery-powered projects.
- Compatible backup power systems.
- Low-voltage equipment requiring a rechargeable battery.
Packages Included:
-
1 × Rechargeable 12V Li-ion Battery Pack with BMS – 18650 3S-2P 6700mAh (Panasonic Cell).
