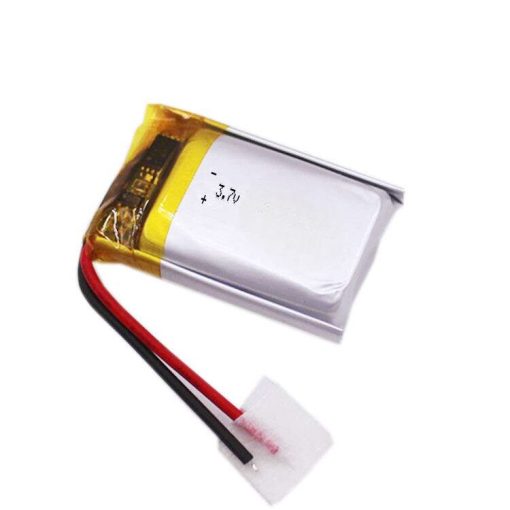

Rechargeable 602030 LIPO Battery Cell 3.7V 300mAh Wire Solder
The Rechargeable 602030 LiPo Battery Cell 3.7V 300mAh Wire Solder is a lightweight and compact power solution designed for portable electronics and embedded systems. Utilizing lithium polymer (Li-Po) technology, this battery provides a nominal voltage of 3.7V and a capacity of 300mAh, making it ideal for low-power and space-constrained applications.
Features:
- 3.7V nominal voltage with stable discharge performance.
- Compact 6mmX20mmX30mm size for space-limited applications.
- 500mAh capacity for extended device operation.
- Lightweight lithium polymer construction for portability.
- Pre-soldered wires for easy installation and connection.
- Rechargeable design for long-term, cost-effective use.
- High energy density for efficient power delivery.
- Low self-discharge rate for reliable standby performance.
- Good charging and discharging characteristics.
- No memory effect and a slow loss of charge when not in use.
- It offers high capacity and hence can be used to hold more power.
Specifications:
| Parameter | Value |
|---|---|
| Model | 602030 |
| Chemistry | Lithium Polymer (Li‑Po) |
| Recharging Availability | Rechargeable |
| Nominal Voltage | 3.7V |
| Rated Capacity | 300mAh |
| Full Charge Voltage | 4.2V |
| Cut‑off Voltage | 3.0V |
| Power (Wh) | 1.11Wh |
| Dimensions (T×W×L) | 6mm × 20mm × 30mm |
| Weight | 7g |
| Connector Type | Wire leads for soldering |
| Typical Discharge Current | ≤ 0.5C (150mA) |
| Maximum Discharge Current | Up to 1C (300mA) |
| Standard Charging Current | 0.2C (60mA) |
| Cycle Life | ≥ 300 cycles (under standard charging/discharging) |
| Internal Resistance | ≤ 200 mΩ (at full charge) |
| Operating Temperature | Charging: 0°C to +45°C, Discharging: -10°C to +60°C |
| Storage Temperature | -20°C to +60°C |
Performance at 0.2A load:
⚠️ Precautions
- Never expose Batteries to extreme temperatures or direct sunlight.
- Do not store Li-Po batteries in extreme temperatures below 0°C or above 50°C.
- Always disconnect Batteries when not in use and store batteries in a non-conductive and fireproof container.
- Never charge a battery that is still warm after usage, and never use a battery that is still warm from charging.
Applications:
- Electronics Gadgets.
- IoT Applications.
- Portable devices.
- Wireless devices.
- Electronic Toys.
Package Contents:
- 1x Rechargeable 602030 LIPO Battery Cell 3.7V 300mAh Wire Solder
