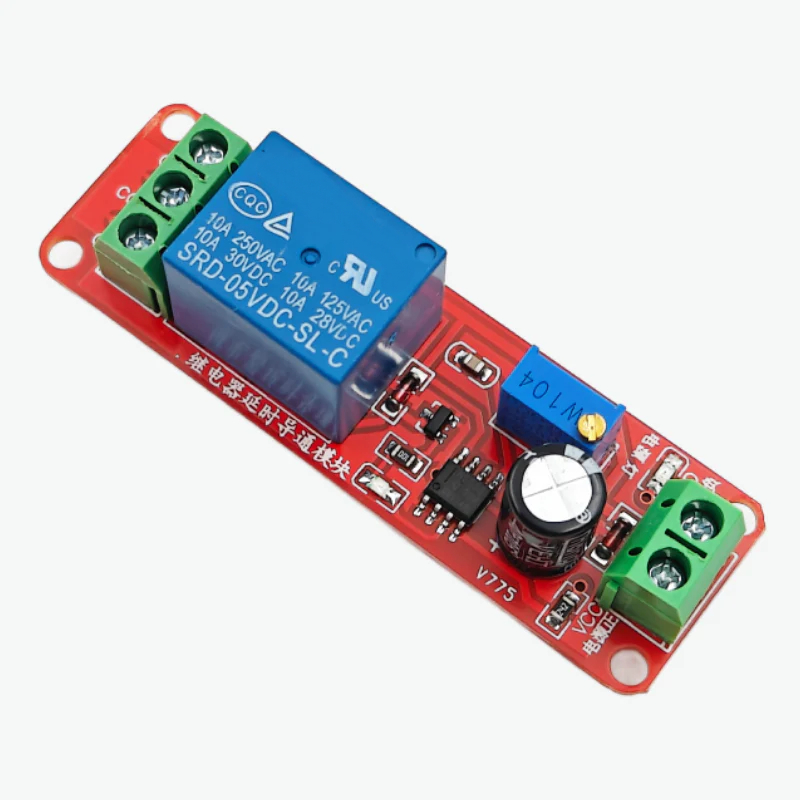

Relay Module 5V With Timer 555

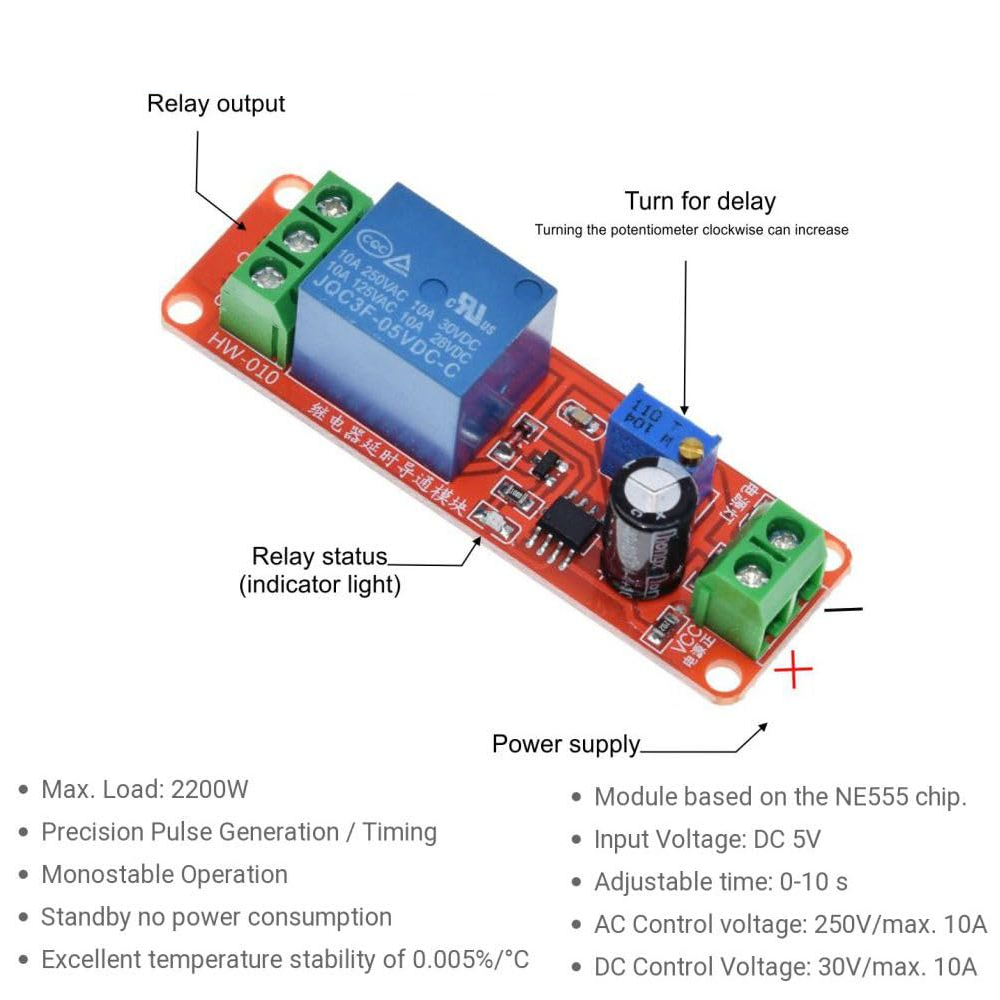

This Relay Module is an adjustable timer control board built around a high-precision NE555 timer IC and a reliable 5VDC relay. Designed for precision timing applications, the module features an onboard multi-turn potentiometer that allows users to easily adjust the delay duration before the relay triggers and switches the load.
Features
- Precision Timing
- Adjustable Delay
- High-Current Switching
- Convenient Terminals
- Easy Mounting
Specifications
| Parameter | Value |
|---|---|
| Core IC | NE555 Timer |
| Dimensions | 68 x 21 x 17mm |
| Input Operating Voltage | 5VDC |
Applications
- Timed automation circuits and smart home DIY setups.
- Protection circuits requiring a delayed power-on sequence to prevent power surges.
- Industrial control simulation and prototyping using development platforms.
Package Content
- 1 x Relay Module 5V With Timer 555
