Resistor Network Array SMD ±5% 10kΩ 62.5mW ±200ppm/℃ 0603×4
The Resistor Network Array SMD ±5% 10kΩ 62.5mW ±200ppm/℃ 0603×4 is a compact surface-mount resistor network that integrates four 10kΩ resistive elements into a single 0603×4 package. It is designed for electronic circuits requiring multiple equal-value resistors while helping reduce PCB component count and conserve board space.
Features:
- Four integrated 10kΩ resistors.
- ±5% resistance tolerance.
- 62.5mW rated power per resistor.
- 0603×4 surface-mount package.
- ±200ppm/℃ temperature coefficient.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | UNI-ROYAL |
| Model Number | 4D03WGJ0103T5E |
| Component Type | Resistor-Network Array |
| Number of Resistors | 4 |
| Resistance | 10kΩ per resistor |
| Tolerance | ±5% |
| Rated Power | 62.5mW per resistor |
| Package | 0603×4 |
| Number of Pins | 8 |
| Temperature Coefficient | ±200ppm/℃ |
| Mounting Type | Surface Mount |

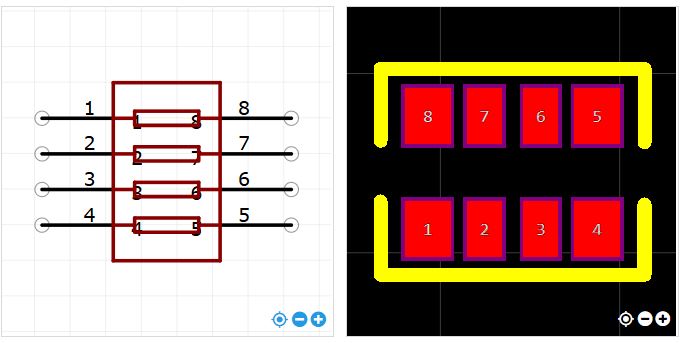

Foot Print:
Applications:
- Digital logic pull-up and pull-down networks.
- Microcontroller interface circuits.
- Signal conditioning circuits.
- Voltage-divider networks.
- Transistor biasing circuits.
- Digital control signal lines.
- Data interface circuits.
- LED and indicator circuits.
- Consumer electronic equipment.
- Embedded electronic systems.
- Industrial control circuits.
- Compact high-density PCB assemblies.
Package Include:
1x Resistor-Network Array SMD ±5% 10kΩ 62.5mW ±200ppm/℃ 0603×4.
