Description

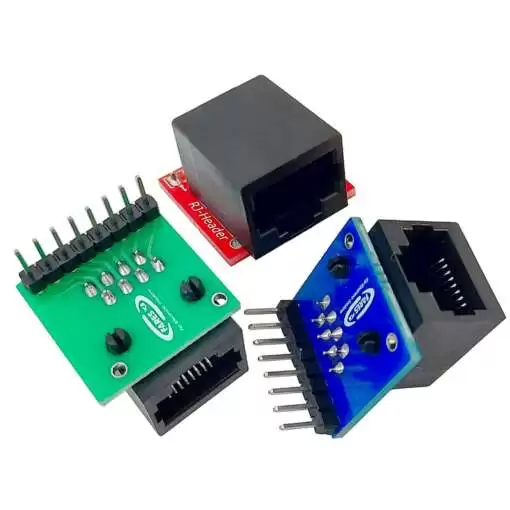

RJ45 8pin socket on PCB to header suitable for breadboard test applications.
Features:
- RJ45 pins are routed to pin headers.
- Terminals are labeled according to the RJ45 pin number to which they are routed.
- These adapters ship with a strip of male header pins that soldered on. The header soldered on the bottom of the adapter you want to plug this into a breadboard.
- Pin header pitch distance is 2.54mm.
Module Connections
Technical Specifications
| Connector Type | RJ45 Socket | |
| Termination Style | 1 x 8 header | |
| Dimensions | L x W (PCB) | 21 x 21mm |
Package Contents:
1x RJ45 to Pin Header (Horizontal Plugging)
