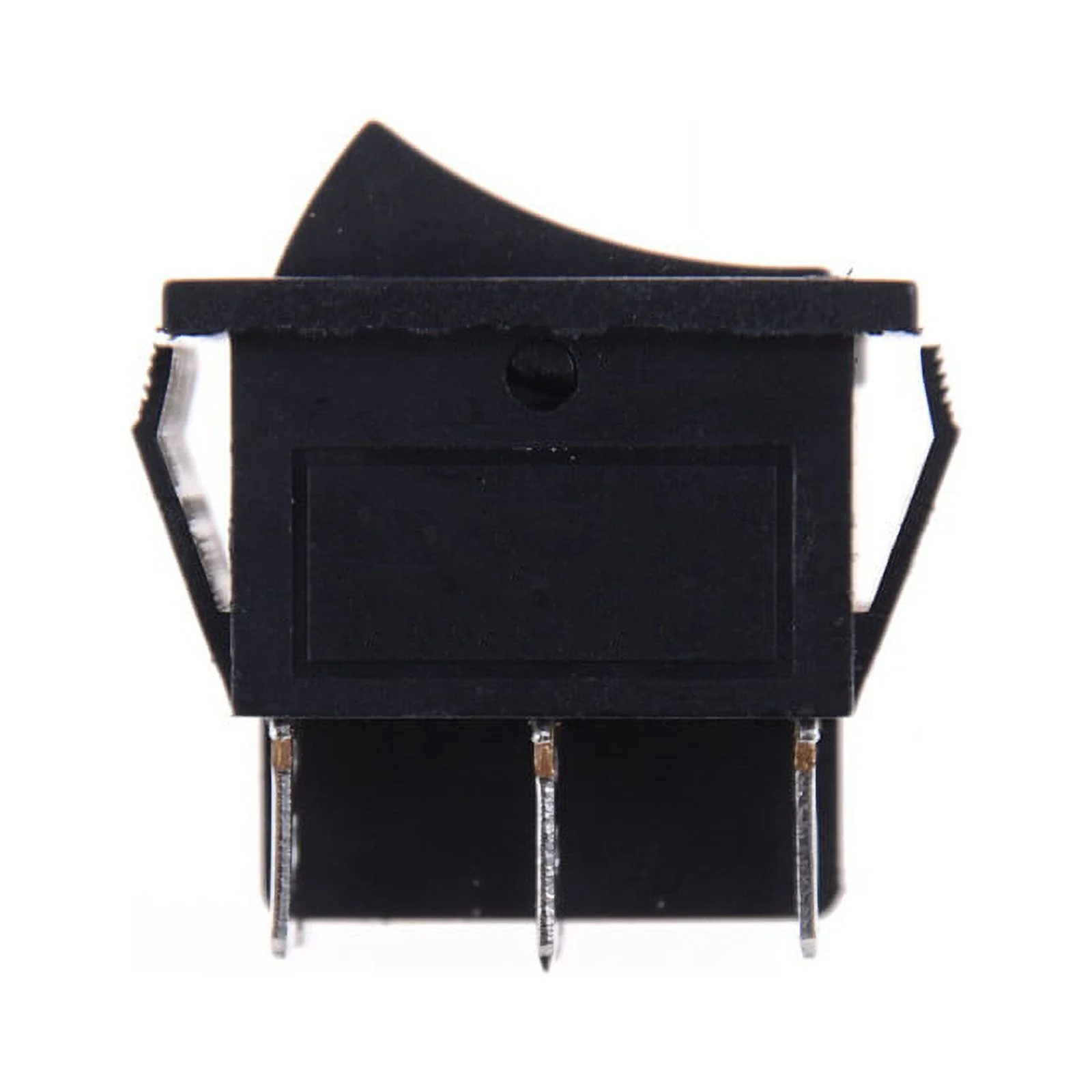

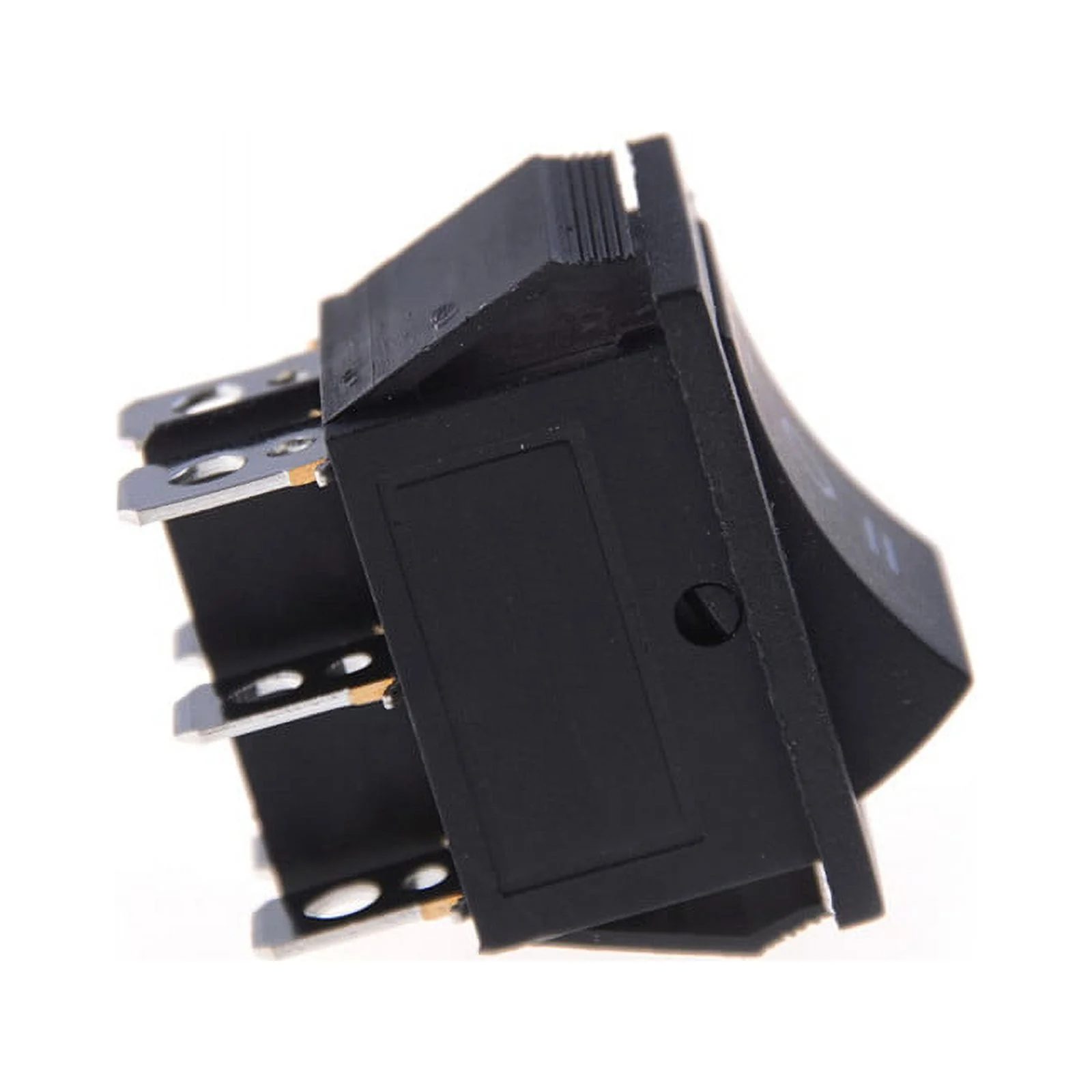

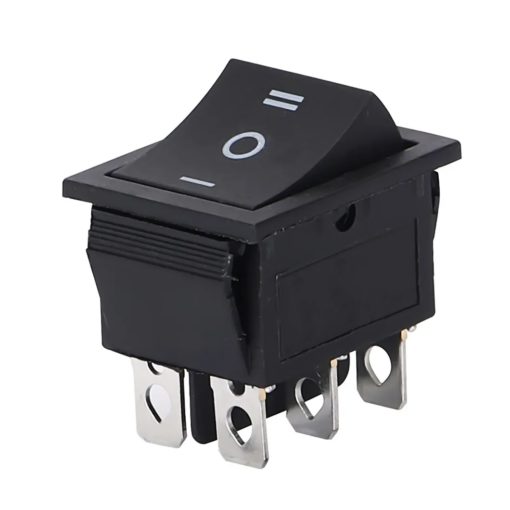

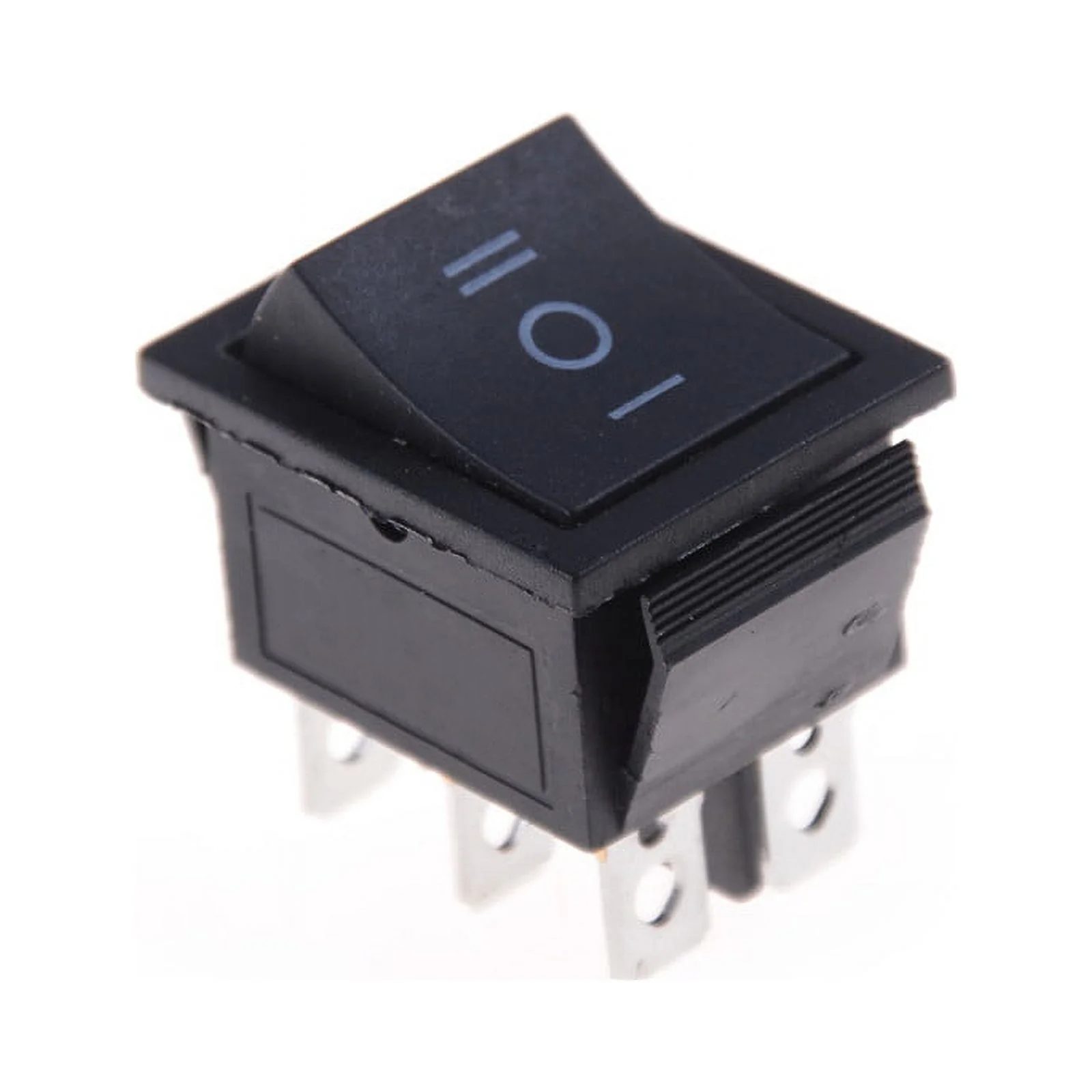

Rocker Switch On-Off-On 16A 250VAC KCD4 6 Pin – Durable Power Control Switch
The KCD4 6-pin Rocker Switch is a versatile and durable power control switch commonly used to manage electrical circuits in appliances, automotive systems, industrial equipment, and DIY electronics. Its On-Off-On configuration allows users to toggle between two active positions with a neutral off state, making it ideal for dual-function devices or reversing circuits. The switch features a robust actuator that provides a tactile click and reliable operation over thousands of cycles.
Built to handle currents up to 16 A at 250 VAC, this switch ensures safe and efficient power control for medium-to-high load applications. Its compact design, easy installation with 6 pins for SPDT (Single Pole Double Throw) connections, and sturdy construction make it a long-lasting solution for both professional and hobbyist projects. The KCD4 rocker switch is commonly panel-mounted and is designed to withstand mechanical stress, vibration, and frequent use.

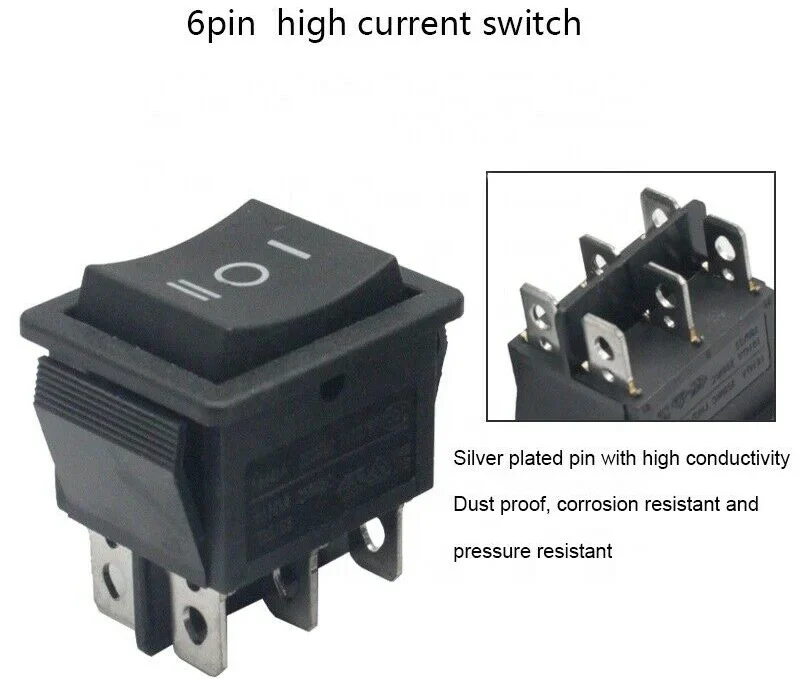

Features:
- On-Off-On momentary or maintained toggle configuration.
- Durable rocker actuator for tactile feedback.
- Easy panel mounting design.
- 6-pin SPDT connections for versatile wiring.
- Suitable for AC and DC circuits.
- Robust, long-lasting construction.
Specifications:
| Operation Mode: | ON-OFF-ON |
| Operating Voltage & Current: | 10A / 250V AC
15A/125V AC 16(8)A / 250V AC |
| Material: | Plastic & Metal |
| Connector Type: | DPDT |
| Terminal: | 6 Pin |
| Circuit Type: | 3 position |
| Mounting Type: | Snap-In |
| Actuator Type: | Toggle |

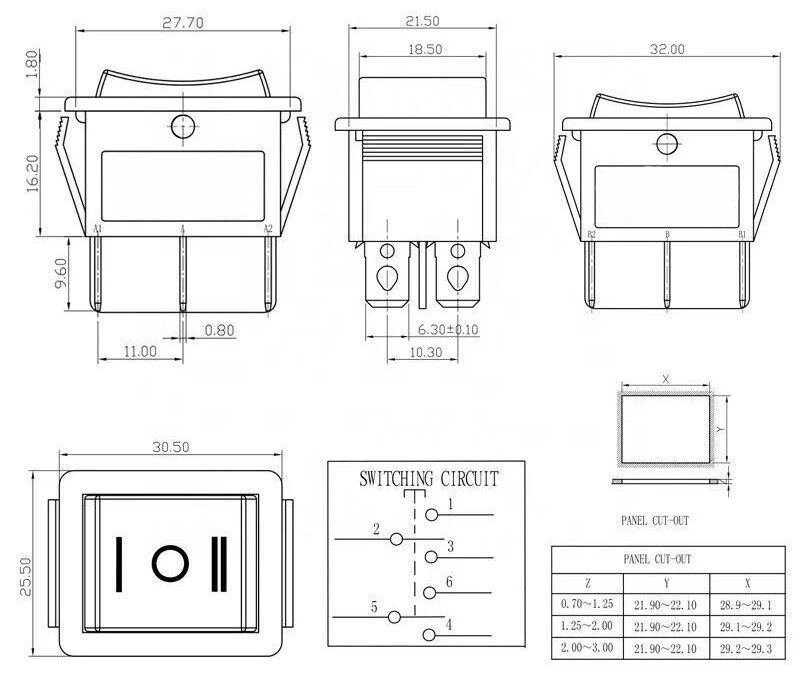

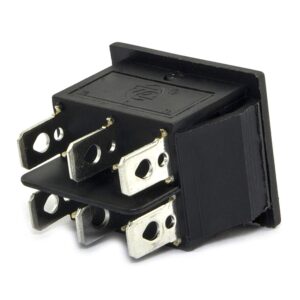

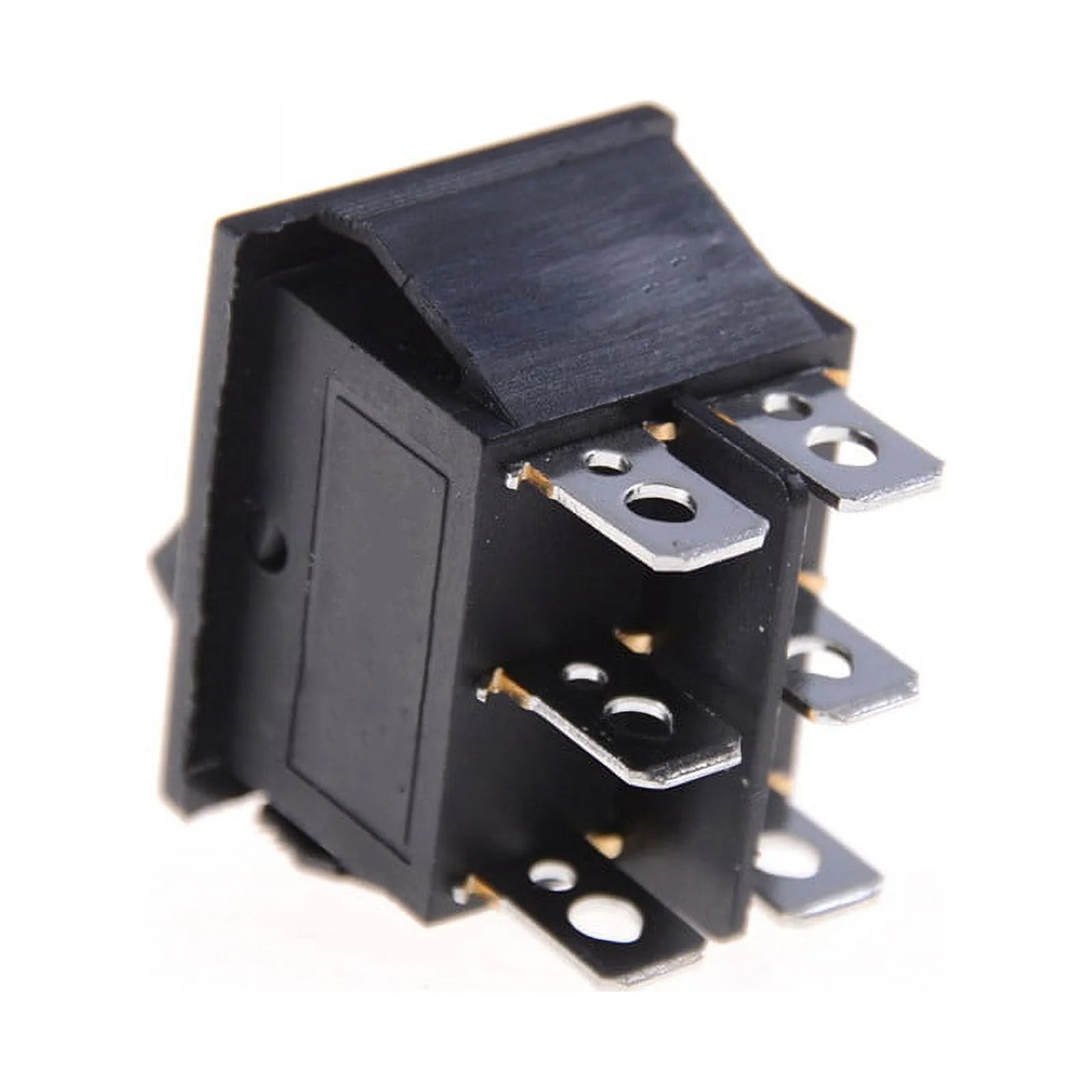

Pinout:
| Pin Number | Function |
|---|---|
| 1 | Pole 1 – Common |
| 2 | Pole 1 – Normally Open (ON1) |
| 3 | Pole 1 – Normally Closed (OFF) |
| 4 | Pole 2 – Common |
| 5 | Pole 2 – Normally Open (ON2) |
| 6 | Pole 2 – Normally Closed (OFF) |
Applications:
- Audio amplifiers, power supply units, and control panels.
- Car Boat Vehicle Horn Button Switch or any circuit.
- Vacuum cleaners and floor care equipment.
- Automotive and motorcycle accessories.
- Industrial machinery and equipment.
- Dehumidifiers, medical systems.
- Electronic DIY equipment.
- Horn Button Switch.
Packages:
- 1x Rocker Switch On-Off-On 16A 250VAC KCD4 6 Pin Dim: 25x21mm.
