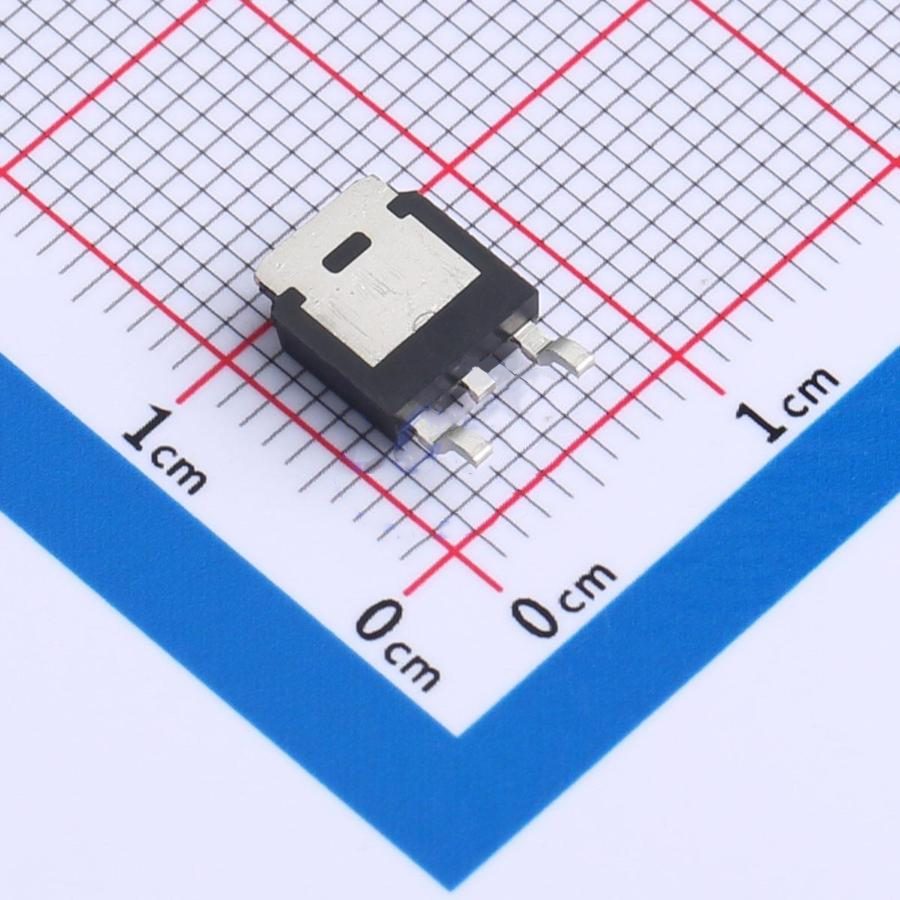

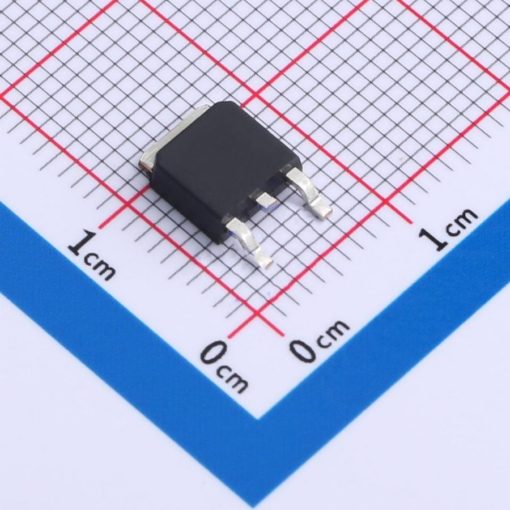

RU3560L SMD N-Channel Mosfet Transistor TO-252 40V 50A
20.00 EGP
Buy Now
Availability:
In Stock
SKU:4061314387641
Pinout:
Specifications:
| Category |
Transistors/Thyristors/MOSFETs |
| Drain Source Voltage (Vdss) |
40V |
| Continuous Drain Current (Id) |
50A |
| Drain Source On Resistance (RDS(on), Vgs , Id) |
18mΩ,4.5V,20A |
| Power Dissipation (Pd) |
25W |
| Gate Threshold Voltage (Vgs(th),Id) |
1.5V,250uA |
| Reverse Transfer Capacitance (Crss,Vds) |
80pF,20V |
| Input Capacitance (Ciss,Vds) |
980pF |
| Total Gate Charge (Qg,Vgs) |
23nC,10V |
| Operating Temperature |
-55℃~+175℃ |
