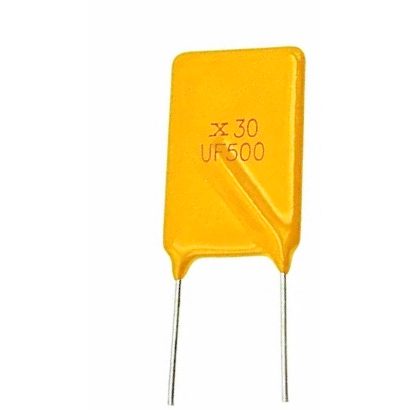

RUEF500 PTC Resettable Fuse 30V 5A Through Hole
The RUEF series are radial-leaded, 30V resettable PPTC fuses. They provide reliable, self-resetting overcurrent protection for diverse electronics.
7.50 EGP
Buy NowRUEF500 PTC Resettable Fuse 30V 5A Through Hole
The RUEF series is a radial-leaded, PolySwitch® resettable fuses (PPTCs) providing reliable overcurrent protection. These components automatically switch to a high-resistance state during a fault and reset once the condition is cleared and power is cycled. Rated for 30V, they offer a versatile and maintenance-free alternative to traditional single-use fuses for a wide variety of electronic applications.
Features
- RUEF series is for balance of voltage rating (30V) and hold current.
- Lead-Free and Halogen-Free.
- Resettable Overcurrent Protection: Automatically resets after a fault condition is cleared, reducing maintenance and replacement costs.
- Fast Time-to-Trip: Quickly interrupts excessive current flow to protect downstream components.
- Low Resistance: Features a low initial resistance, minimizing its impact on circuit performance under normal operating conditions.
Specifications
| Electrical Characteristics | |
|---|---|
| Hold Current (IH) | 5.00 A |
| Trip Current (IT) | 10.00 A |
| Maximum Voltage (VMAX) | 30 VDC |
| Maximum Fault Current (IMAX) | 100 A |
| Max Time-to-Trip at 25.00 A | 14.5 s |
| Typical Power Dissipated (PD typ) | 3.00 W |
| Minimum Resistance (RMIN) | 0.010 Ω |
| Maximum Resistance (RMAX) | 0.030 Ω |
| Maximum Resistance post-trip (R1MAX) | 0.05 Ω |
| Physical & Environmental Characteristics | |
| Operating Temperature Range | -40°C to 85°C |
| Lead Material | Tin-plated Copper, 0.52mm² (20AWG) |
| Mounting Type | Through Hole (Radial Leaded) |
Dimensions
| Parameter | Value |
|---|---|
| (A) | 13.2 mm |
| (B) | 22 mm |
| (C) | 11.3 mm |
| (D) | 11.3 mm |
| (E) | 2.5 mm |
Applications
- Satellite video receivers
- Industrial controls
- Transformers
- Computer motherboards
- Modems
- Battery packs
- Phones
- Fax machines
- Printers
Documents
| Weight | 1 g |
|---|
