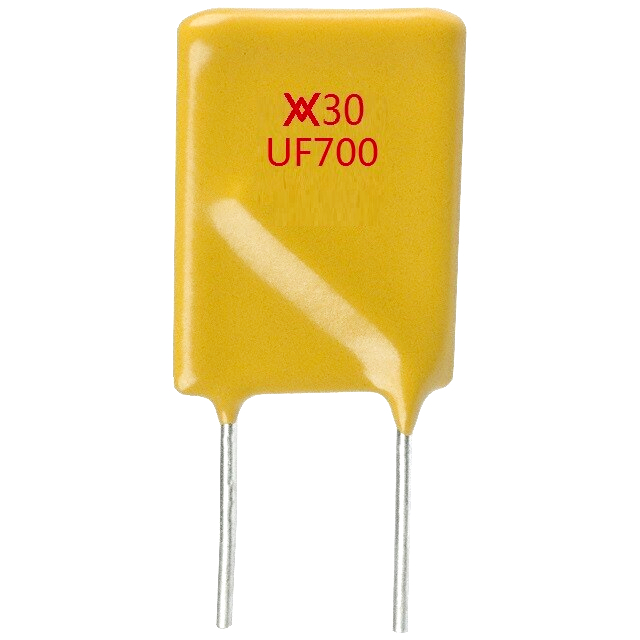

RUEF700 PTC Resettable Fuse 30V 7A Through Hole
The RUEF series are radial-leaded, 30V resettable PPTC fuses. They provide reliable, self-resetting overcurrent protection for diverse electronics.
9.50 EGP
Buy NowRUEF700 PTC Resettable Fuse 30V 7A Through Hole
The RUEF series is a radial-leaded, PolySwitch® resettable fuses (PPTCs) providing reliable overcurrent protection. These components automatically switch to a high-resistance state during a fault and reset once the condition is cleared and power is cycled. Rated for 30V, they offer a versatile and maintenance-free alternative to traditional single-use fuses for a wide variety of electronic applications.
Features
- RUEF series is for balance of voltage rating (30V) and hold current.
- Lead-Free and Halogen-Free.
- Resettable Overcurrent Protection: Automatically resets after a fault condition is cleared, reducing maintenance and replacement costs.
- Fast Time-to-Trip: Quickly interrupts excessive current flow to protect downstream components.
- Low Resistance: Features a low initial resistance, minimizing its impact on circuit performance under normal operating conditions.
Specifications
| Parameter | Value |
|---|---|
| Hold Current (Ih) | 7.0A |
| Trip Current (It) | 14.0A |
| Maximum Voltage (VMAX) | 30VDC |
| Maximum Fault Current (IMAX) | 100A |
| Maximum Time to Trip | 17.5 seconds (at 35.00A) |
| Typical Power Dissipation (Pd) | 3.8W |
| Minimum Resistance (RMIN) | 0.005 Ω |
| Maximum Resistance (RMAX) | 0.020 Ω |
| Post-Trip Maximum Resistance (R1MAX) | 0.03 Ω |
| Operating Temperature Range | -40°C to 85°C |
| Lead Size | 0.520mm² / 20AWG |
| Mounting Type | Through Hole |
Dimensions
| Parameter | Value |
|---|---|
| (A) | 15.7 mm |
| (B) | 21.3 mm |
| (C) | 10.8 mm |
| (D) | 10.8 mm |
| (E) | 2.4 mm |
Applications
- Satellite video receivers
- Industrial controls
- Transformers
- Computer motherboards
- Modems
- Battery packs
- Phones
- Fax machines
- Printers
Documents
| Weight | 1 g |
|---|
