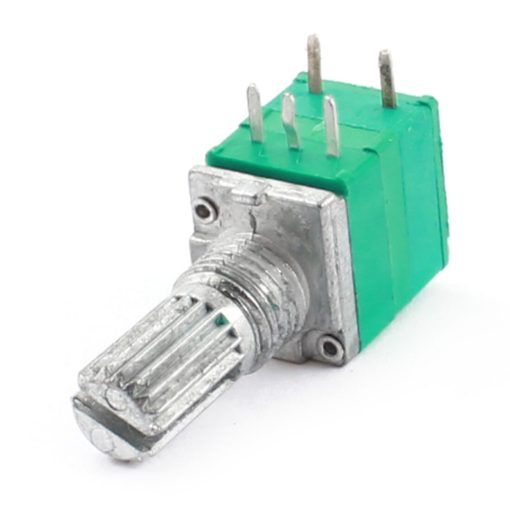

RV097NS Linear Rotary Amplifier Potentiometer 10KΩ 5Pin With Switch
RV097NS Linear rotary pot 10KΩ with integrated switch for precise control and on/off functionality. Ideal for audio, lighting, and motor speed applications.
15.00 EGP
RV097NS Linear Rotary Amplifier Potentiometer 10KΩ 5Pin With Switch
The RV097NS Linear Rotary Amplifier Pot 10KΩ 5Pin With Switch is a versatile electronic component designed for precise control in various applications. Featuring a 10K ohm linear taper resistance and an integrated rotary switch, this potentiometer allows users to adjust resistance and control power with a single knob. Its compact design, durable construction with a rotational life of 100,000 cycles, and compatibility with standard push-on knobs make it an excellent choice for both hobbyists and professionals. This component is RoHS compliant, ensuring it meets environmental standards.
Features:
- 10K Ohm Resistance.
- Integrated Rotary Switch.
- Split Knurled Shaft.
- High Durability.
- RoHS Compliant.
Specifications:
| Parameter | Value |
|---|---|
| Resistance: | 10,000 ohms (10K) |
| Taper: | Linear (B) |
| Tolerance: | ±20% |
| Maximum Operating Voltage: | 50VAC |
| number of pins: | 5 |
| Shaft Type: | Split knurled, 15mm length |
| Shaft Diameter: | 6mm |
Applications:
- Audio Equipment.
- Musical Instruments.
- Light Dimmers.
- Motor Speed Control.
- Position Sensing.
Package Include:
- 1x RV097NS Linear Rotary Amplifier Potentiometer 10KΩ 5Pin With Switch
