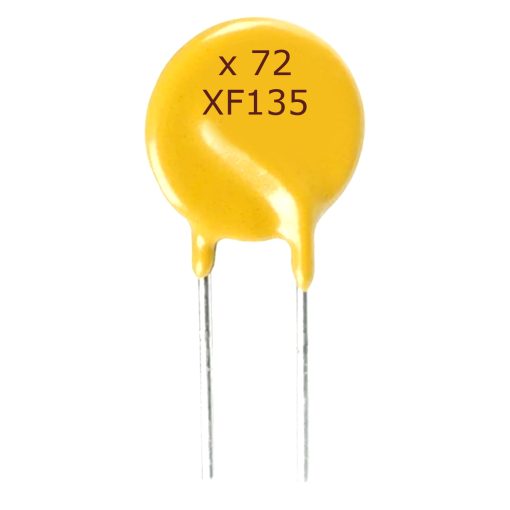

RXEF135 PTC Resettable Fuse 72V 1.35A Through Hole
The PolySwitch radial-leaded devices represent the most comprehensive and complete set of PPTC products available in the industry today. RXEF series offers low hold currents and high voltage rating (72V).
Features
- Low Hold Current (IH)
- Maximum Continuous Voltage: 72 V
- Resettable Protection
- Low Power Dissipation
- Radial / through-hole leads Mounting Style
Specifications
| Parameter | Value |
|---|---|
| Part Number | RXEF135 |
| Hold Current (IH) | 1.35 A |
| Trip Current (IT) | 2.70 A |
| Maximum Voltage (VMAX) | 72 V |
| Maximum Fault Current (IMAX) | 40 A |
| Typical Power Dissipation (PD Typ) | 1.70 W |
| Maximum Time-to-Trip | 9.6 s at 6.75 A |
| Minimum Resistance (RMIN) | 0.12 Ω |
| Maximum Resistance (RMAX) | 0.19 Ω |
| Maximum Resistance Post-Trip (R1MAX) | 0.30 Ω |
| Lead Size | 0.52 mm² (20 AWG), tin-plated copper |
| Operating Temperature | -40°C to 85°C |
| Solder Heat Withstand | 10 s at 260°C ±5°C |
Dimensions
| Parameter | Value |
|---|---|
| (A) | 13.3 mm |
| (B) | 14.5 mm |
| (C) | 5.5 mm |
| (D) | 10 mm |
| (E) | 2.6 mm |
Applications
- Satellite video receivers
- Industrial controls
- Transformers
- Computer motherboards
- Modems
- USB hubs, ports and peripherals
- Fax machines
- Printers
