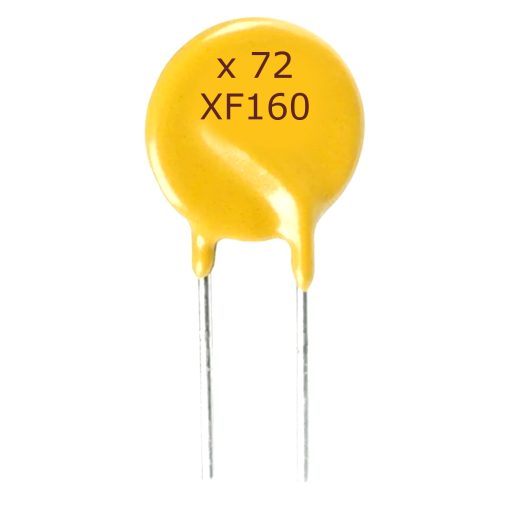

RXEF160 PTC Resettable Fuse 72V 1.6A Through Hole
Resettable PolySwitch PPTC fuse — automatic overcurrent protection up to 72 V for ports, battery packs and electronic circuits.
5.00 EGP
In stockSKU 3496300125814
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
RXEF160 PTC Resettable Fuse 72V 1.6A Through Hole
The PolySwitch radial-leaded devices represent the most comprehensive and complete set of PPTC products available in the industry today. RXEF series offers low hold currents and high voltage rating (72V).
Features
- Low Hold Current (IH)
- Maximum Continuous Voltage: 72 V
- Resettable Protection
- Low Power Dissipation
- Radial / through-hole leads Mounting Style
Specifications
| Parameter | Value |
|---|---|
| Part Number | RXEF160 |
| Hold Current (I_H) | 1.6A |
| Trip Current (I_T) | 3.2A |
| Maximum Voltage (V_MAX) | 72V |
| Maximum Fault Current (I_MAX) | 40A |
| Typical Power Dissipation (P_D) | 1.9W |
| Maximum Time-to-Trip | 8.0A for 11.4 seconds |
| Minimum Resistance (R_MIN) | 0.09Ω |
| Maximum Resistance (R_MAX) | 0.14Ω |
| Maximum Post-Trip Resistance (R1_MAX) | 0.22Ω |
| Lead Size | Tin-plated copper, 0.52mm² (20AWG) |
| Operating Temperature Range | -40°C to 85°C |
Applications
- Satellite video receivers
- Industrial controls
- Transformers
- Computer motherboards
- Modems
- USB hubs, ports and peripherals
- Fax machines
- Printers
Documents
| Weight | 1 g |
|---|
