S9015 M6 SMD Bipolar Transistors – BJT 45V 200mW 300@1mA,5V 100mA PNP SOT-23
The S9015 M6 PNP Bipolar Transistor 45V 100mA 200mW SOT-23 is a general-purpose surface-mount bipolar junction transistor designed for low-power switching and signal amplification applications. Its compact SOT-23 package makes it suitable for high-density PCB layouts while providing reliable electrical performance in consumer, industrial, communication, and embedded electronic circuits.
Features:
- PNP bipolar junction transistor.
- Surface-mount SOT-23 package.
- Collector-emitter voltage up to 45V.
- Collector-base voltage up to 50V.
- Continuous collector current up to 100mA.
- Power dissipation of 200mW.
Specifications
| Attribute | Value |
| Category | Triode/MOS Tube/Transistor/Bipolar Transistors – BJT |
| RoHS | |
| Collector Cut-Off Current (Icbo) | 100nA |
| Collector-Emitter Breakdown Voltage (Vceo) | 45V |
| Power Dissipation (Pd) | 200mW |
| DC Current Gain (hFE@Ic,Vce) | 300@1mA,5V |
| Collector Current (Ic) | 100mA |
| Transition Frequency (fT) | 150MHz |
| Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib) | 300mV@100mA,10mA |
| Transistor Type | PNP |
| Operating Temperature | +150℃@(Tj) |

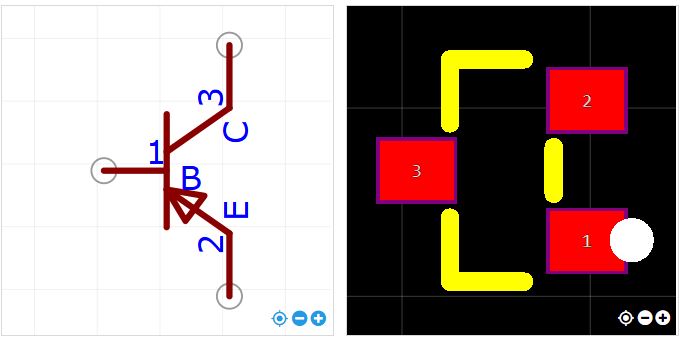

Pin Configuration:

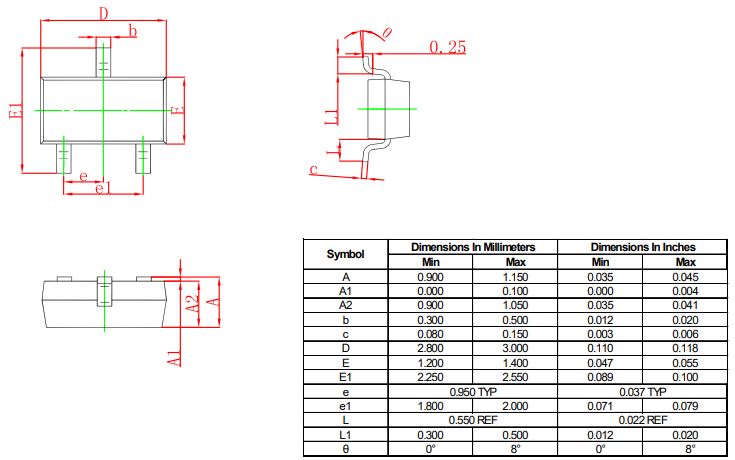

Footprint:
Applications:
- General-purpose electronic switching.
- Signal amplification circuits.
- Audio pre-amplifiers.
- Driver circuits.
- Sensor interface circuits.
- Portable electronic devices.
- Consumer electronics.
- Industrial control equipment.
- Embedded system designs.
Package Include:
1x S9015 M6 PNP Bipolar Transistor SOT-23.
