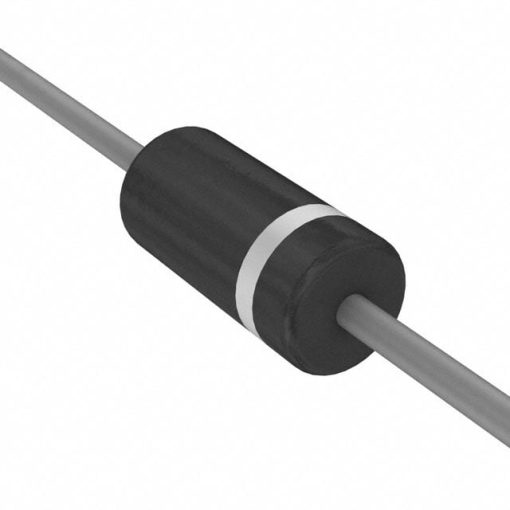

SA14A TVS Diode Unidirectional 14V 22A DO-15
SA14A is a unidirectional DO-15 TVS diode, 14V standoff, 22A peak pulse current and 500W (10/1000µs) surge protection for fast clamp and ESD/transient suppression.
3.50 EGP
In stockSKU 3496300103782
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
SA14A TVS Diode Unidirectional 14V 22A DO-15
The SA14A TVS Diode is a unidirectional transient voltage suppression device in a DO-15 axial package engineered to protect sensitive circuits from high-energy voltage transients such as lightning induced spikes, switching transients and ESD events. It offers a 14V reverse standoff, excellent clamping performance, low leakage and robust surge capability in a compact, glass-passivated package suitable for telecom, industrial, automotive and consumer applications.
Features
- 500W peak pulse power capability at the 10/1000µs waveform for heavy transient protection.
- Unidirectional DO-15 axial package with glass-passivated junction for reliable performance.
- Reverse standoff voltage 14V with tight breakdown tolerance for predictable protection behavior.
- Maximum clamping voltage ~23.2V at the specified peak pulse current for effective voltage limiting.
- Low reverse leakage current (typical ≤1µA at VR) for minimal standby drain.
- Fast response time (typically <1.0ps from 0V to VBRmin).
- Peak forward surge capability FSM 70A (8.3ms single half sine), suitable for short transient stress.
- High temperature capability and wide junction/storage range (−65°C to +175°C).
Specifications
| Parameter | Value |
|---|---|
| Package | DO-15 |
| Polarity | Unidirectional |
| Reverse Standoff Voltage (VR) | 14V |
| Breakdown Voltage (VBR) | 15.6–17.2V@IT=1mA |
| Test Current (IT) | 1mA |
| Maximum Clamping Voltage (VC@IPP) | 23.2V@IPP=22A |
| Peak Pulse Current (IPP,10/1000µs) | 22A |
| Peak Pulse Power (PPPM,10/1000µs) | 500W |
| Steady State Power Dissipation (PD@TL=75°C) | 3.0W |
| Peak Forward Surge Current (FSM,8.3ms) | 70A |
| Maximum Instant Forward Voltage (VF@35A) | 3.5V |
| Reverse Leakage (IR@VR) | ≤1µA |
| Operating Junction And Storage Temp (TJ,TSTG) | −65°Cto+175°C |
| Thermal Resistance Junction To Lead (RθJL) | 20°C/W |
| Thermal Resistance Junction To Ambient (RθJA) | 75°C/W |
Applications
- Surge and transient protection for I/O interfaces, data lines and communication ports.
- VCC bus and power-rail protection in telecom, networking and server equipment.
- ESD protection for USB, serial, CAN and other exposed signal lines.
- Transient suppression in industrial controls, instrumentation and power electronics.
- Protection of consumer electronics, automotive modules and battery management interfaces.
Package Contents
- 1x SA14A TVS Diode Unidirectional 14V 22A DO-15.
Documents

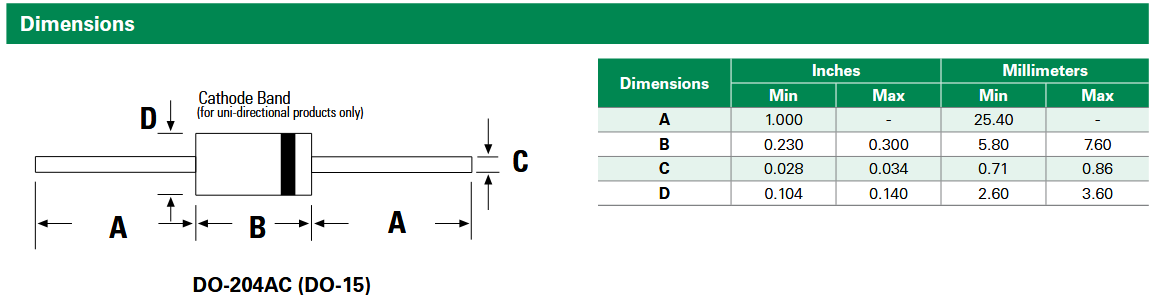

| Datasheet | SA14A |
| CAD Files | Download KiCad Files |
| Weight | 2 g |
|---|---|
| Dimensions | 50 × 5 × 5 mm |
