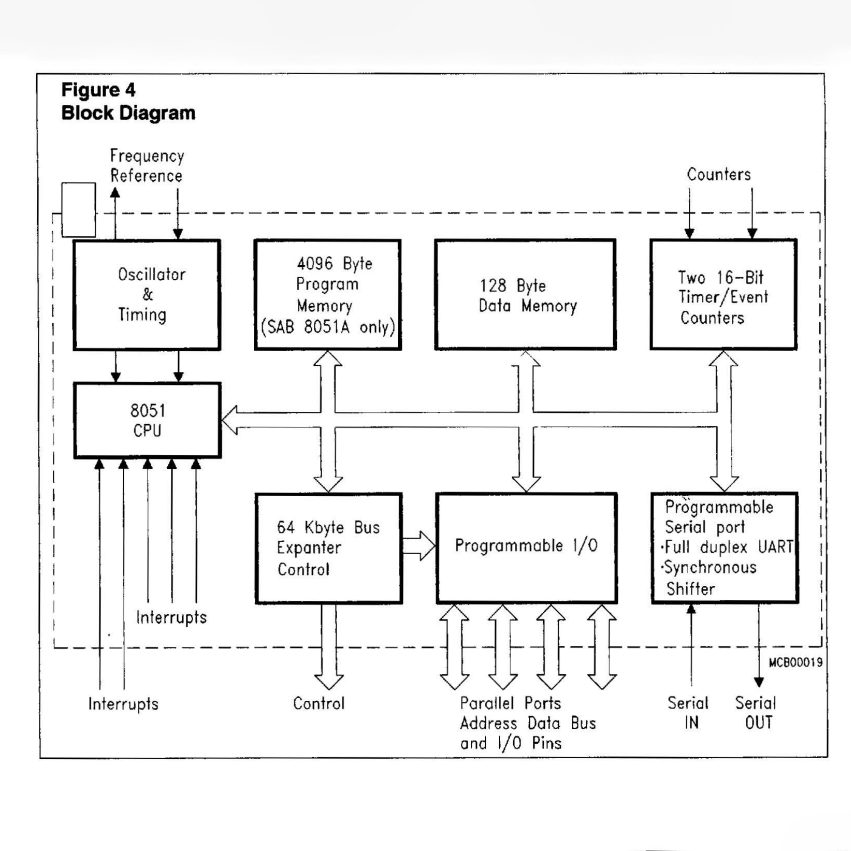

Features:
- Version for 12MHz/16MHz/ 20 MHz
- Operating frequency
- 4Kx8 ROM
- 128 x 8 RAM
- Four 8-bit ports, 32 110 lines
- Two 16-bit timer/event counters
- High-performance full-duplex serial
- channel with flexible transmit/receive bound rate capability
- External memory expandable up to 128Kbyte
- Compatible with SAB 8080/8085 peripherals
- Boolean processor
- 218 user bit-addressable locatk>ns
- Most instructions execute in:
- 1 µS instruction cycle time at 2 MHz
- 750 ns instruction cycle t!me at 16 MHz
- 600 ns instruction cycle time at 20 MHz
- 4 µS (3 µS, 2.4 µS) multiply and divide

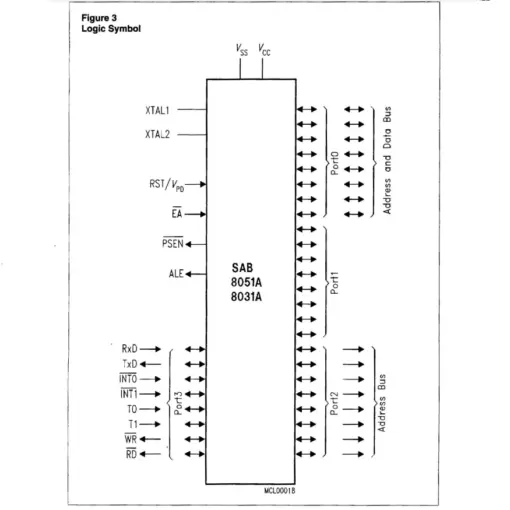

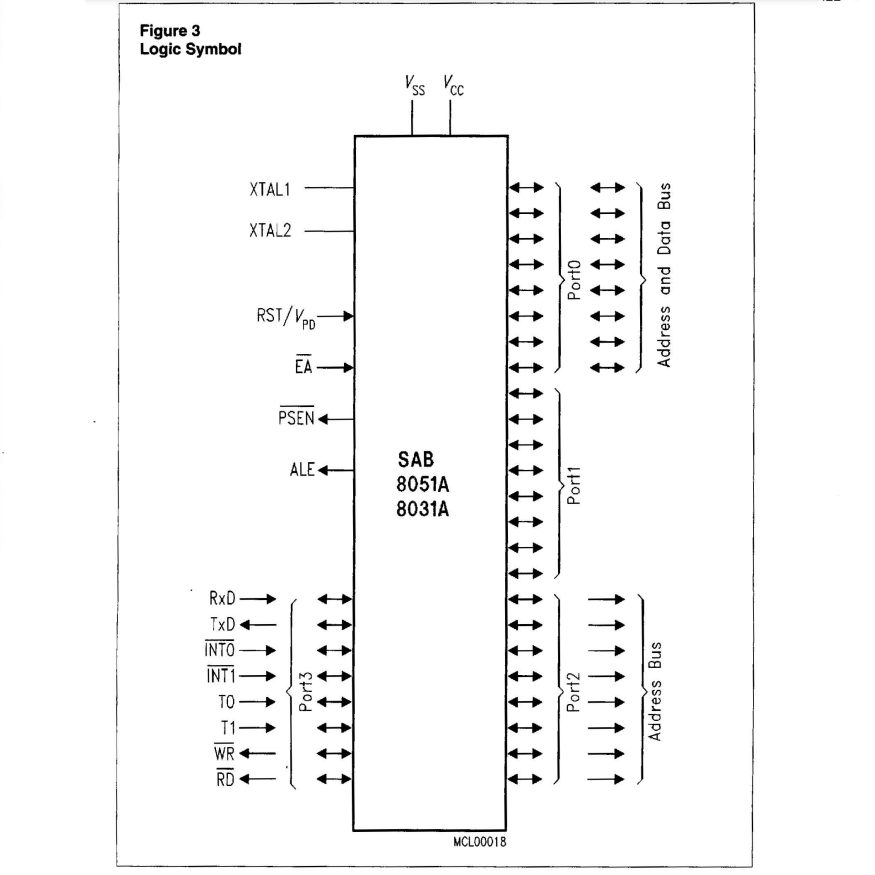

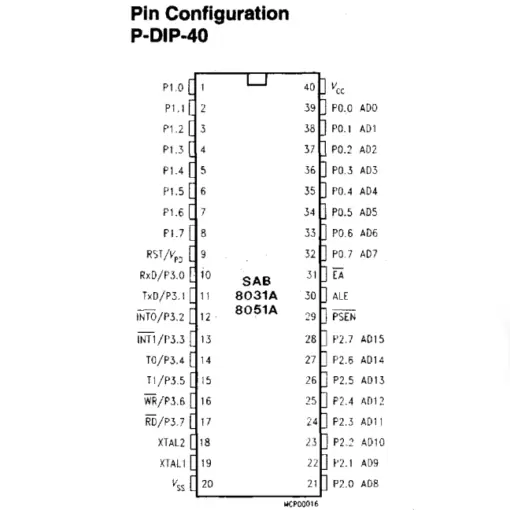

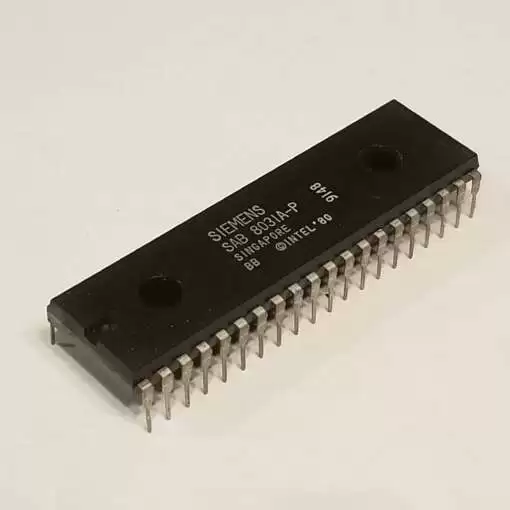

- Package: DIP-40
ABSOLUTE MAXIMUM RATINGS
Item | Symbol | Ratings | Unit |
Voltage on any pin relative to Vss | VIN,VOUT | -0.5 to VCC+0.5 | V |
Voltage on Vcc supply relative to Vss | VCC | -0.5 to 7.0 | V |
Power Dissipation | PD | 1.0 | W |
Storage temperature | TSTG | -65 to 150 | °C |
Operating Temperature | TA | 0 to 70 | °C |
