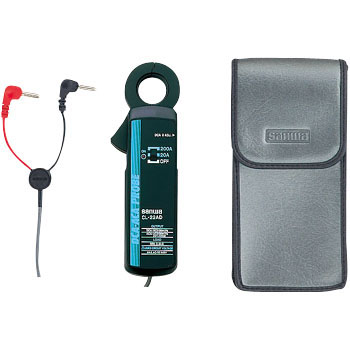

sanwa CL22AD AC/DC Current Probe Clamp Sensor
The sanwa CL22AD AC/DC Current Probe Clamp Sensor is a precision accessory designed for accurate AC/DC current measurements from 10mA to 200A on low-voltage circuits under 600V, outputting 1mV/A sensitivity when paired with digital multimeters or analog testers. Featuring a lightweight clamp with 23mm maximum conductor diameter, it ensures reliable readings by fully closing the iron core around a single centered conductor, with zero adjustment (OADJ) for DC and overload protection up to 2000VAC. Its 1.8m cable length and approx. 70-hour battery life (when used with compatible devices) make it ideal for automotive diagnostics, inverter testing, and industrial maintenance, backed by Sanwa’s ISO9001-certified quality. Withstand voltage of 2000V AC and compliance with safety standards, it delivers stable performance for professionals needing non-invasive current probing.
Features
- Measures AC/DC currents from 10mA to 200A with 1mV/A output sensitivity for precise low-voltage circuit testing.
- Lightweight clamp jaw opens to 23mm diameter, enabling safe non-contact measurements up to 600V circuits.
- Zero adjustment (OADJ) ensures accurate DC readings by compensating for offsets.
- 2000V AC withstand voltage and 400A overload protection provide robust safety in industrial environments.
- 1.8m cable length and approx. 70-hour battery life support extended field use with compatible multimeters.
- Fully closes iron core around single centered conductor for stable, reliable performance up to 400Hz bandwidth.
- Compatible with 3-1/2 digit DMMs or analog testers (10kΩ/V sensitivity) for versatile integration.
Specifications
- Non-contact DC/AC current measurements in low-voltage circuits under 600V.
- Automotive electrical diagnostics and battery system current monitoring.
- Inverter and VFD motor drive current analysis in industrial settings.
- Household appliance power consumption testing like rice cookers or refrigerators.
- Electrical work and facility maintenance for current leak detection.
- Precision low-current measurements from 10mA using DMM integration.
- Power line and electrical equipment load verification.
Package Contents
- 1 x Sanwa CL22AD AC/DC Current Probe Clamp Sensor.
- 1 x Line separator LS11.
- 1 x Carrying case.
- 1 x Instruction manual.
