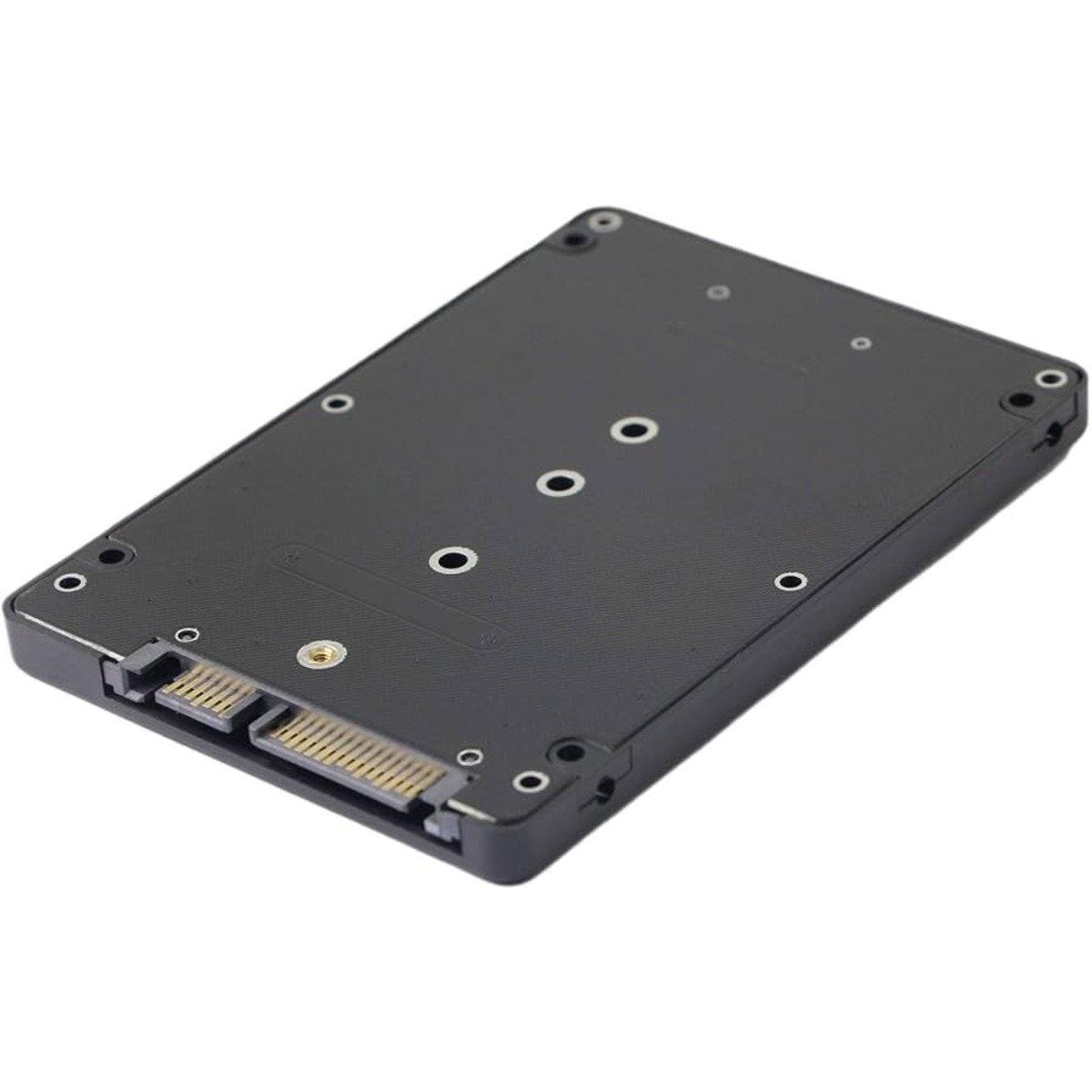

SATA III TO M.2 (NGFF) SSD Adapter Enclosure
The SATA III to M.2 (NGFF) SSD Adapter Enclosure allows an M.2 SATA-based SSD to be used with computers, laptops, enclosures, and other devices that provide a standard 2.5-inch SATA interface. It converts the physical connection and provides a convenient enclosure-style form factor, making it useful when upgrading a system with an M.2 SATA drive while retaining compatibility with SATA storage interfaces.
This adapter is designed for M.2 SATA/NGFF SSDs, not PCIe/NVMe-only M.2 drives. It is suitable for storage expansion, system upgrades, data transfer, drive cloning, and replacing a conventional 2.5-inch SATA drive with an M.2 SATA SSD. Its compact design makes installation straightforward while protecting the installed SSD during normal use.
Features:
- Supports M.2 SATA/NGFF SSDs.
- Converts M.2 SATA storage to a standard SATA III interface.
- Designed in a 2.5-inch drive form factor.
- Compact and lightweight enclosure design.
- Easy SSD installation and removal.
- Suitable for storage upgrades and drive replacement.
- Uses a standard SATA data and power connection.
- Helps reuse M.2 SATA SSDs with SATA-based systems.
Specifications:
| Specification | Details |
|---|---|
| Product Type | M.2 SATA SSD Adapter Enclosure |
| Host Interface | SATA III |
| Host Interface Speed | Up to 6 Gbps |
| SSD Interface | M.2 SATA / NGFF |
| Supported SSD Type | SATA-based M.2 SSD |

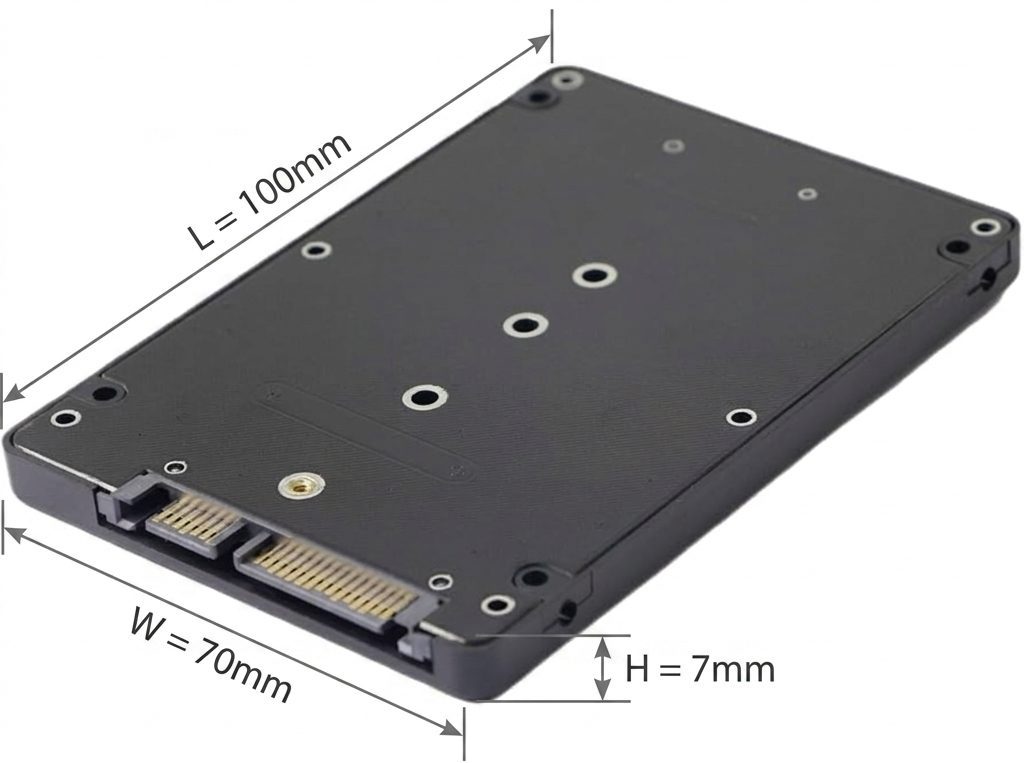

| Form Factor | 2.5-inch |
| M.2 Key Type | Typically B-Key / B+M-Key SATA |
| Supported M.2 Lengths | Commonly 2230 / 2242 / 2260 / 2280 |
| Protocol | SATA |
| Connector | 22-pin SATA data + power |
| Installation | Internal drive bay |
| Compatibility | SATA-enabled computers, laptops, and storage systems |
| NVMe Support | Not supported for NVMe-only SSDs |
Applications:
- Upgrading desktop or laptop storage.
- Using an M.2 SATA SSD in a 2.5-inch SATA drive bay.
- Replacing a conventional 2.5-inch SATA HDD/SSD.
- Data migration and drive cloning.
- Storage expansion.
- Reusing older M.2 SATA SSDs.
- PC and laptop repair.
- Embedded and industrial computer storage.
Packages Included:
- 1 × SATA III to M.2 (NGFF) SSD Adapter Enclosure.
- 1 × SSD mounting screw/set.
