Screw Terminal Aluminum Electrolytic Capacitor 2200uF 450V 64x96mm
The HCG FA series 2200µF 450VDC is a high-performance, heavy-duty aluminum electrolytic capacitor designed for robust power-filtering and energy-storage applications. Featuring a durable cylindrical can design, high capacitance, and strong screw-terminal posts, this capacitor ensures secure, low-impedance electrical connections capable of handling demanding industrial environments. Marked clearly with polarization indicators, it is built to provide stable filtering and transient absorption under continuous operation up to 105°C.
Features
- High Capacity & Voltage
- Heavy-Duty Screw Terminals
- High-Temperature Rating
- Polarity Identification
Specifications
| Brand / Series | HCG FA |
|---|---|
| Country of Origin | Japan |
| Capacitance | 2200 µF (MFD) |
| Rated Voltage | 450 VDC |
| Type | Polarized Aluminum Electrolytic |

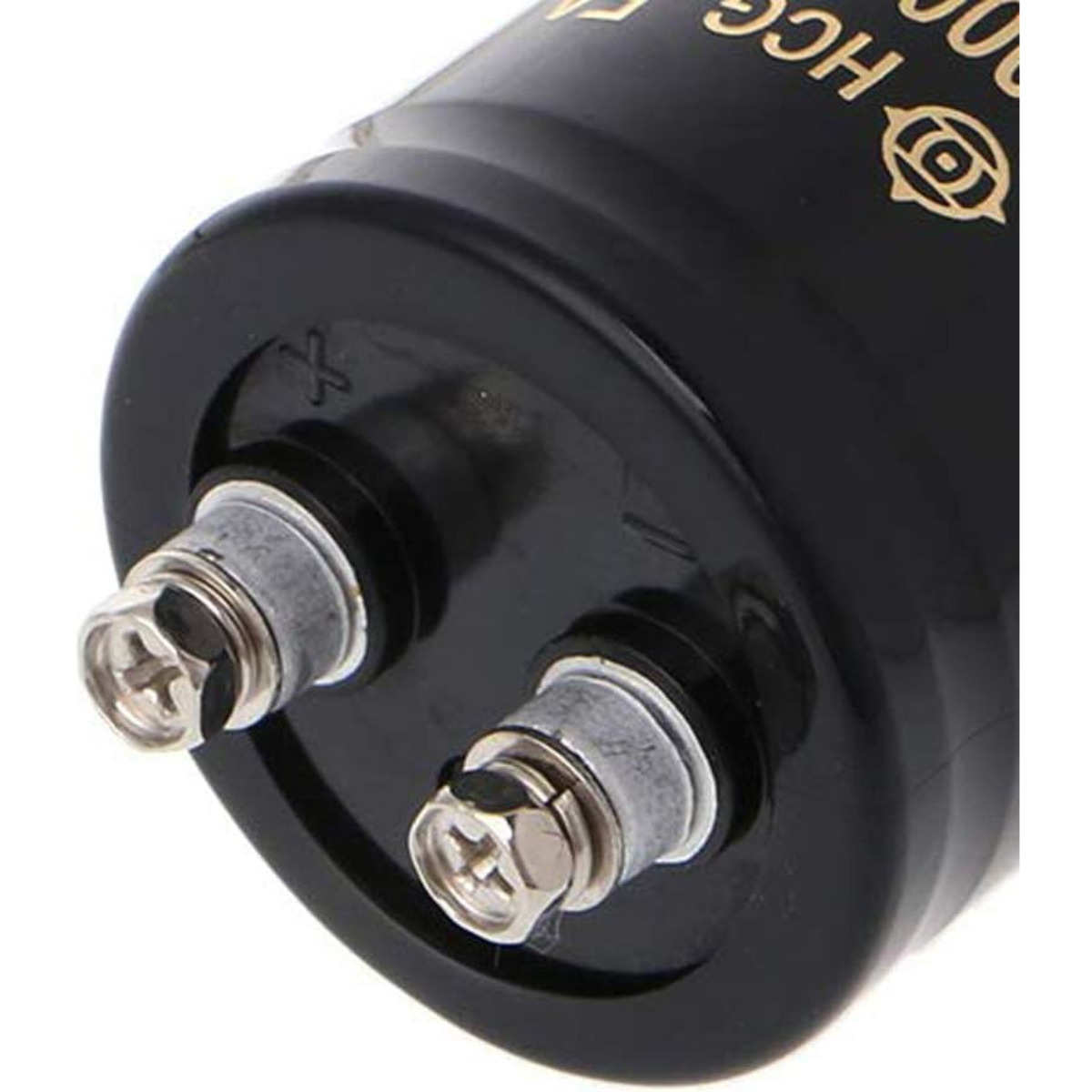

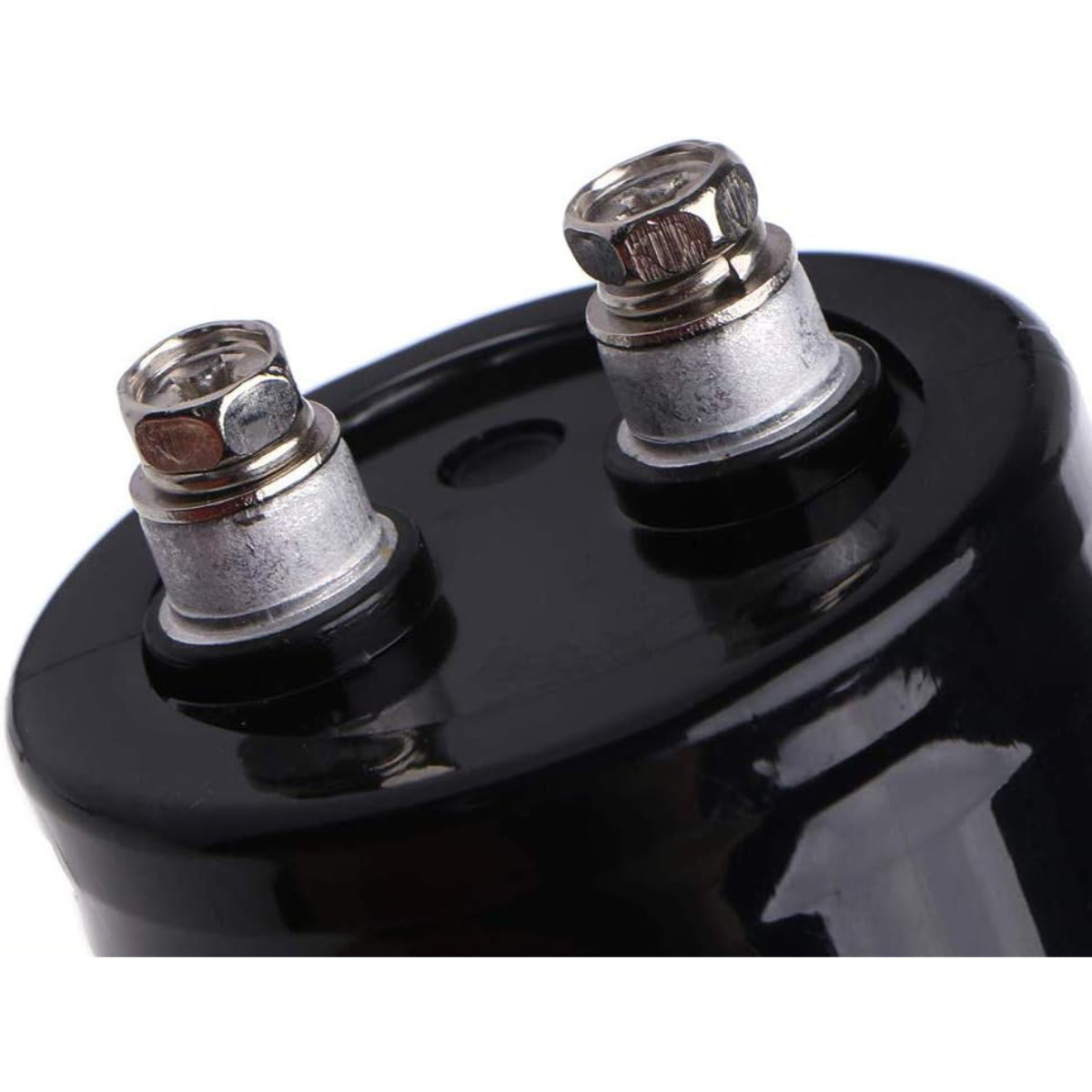

| Terminal Style | Screw Terminals (Heavy-duty screw-post) |
| Max Operating Temp | 105°C |

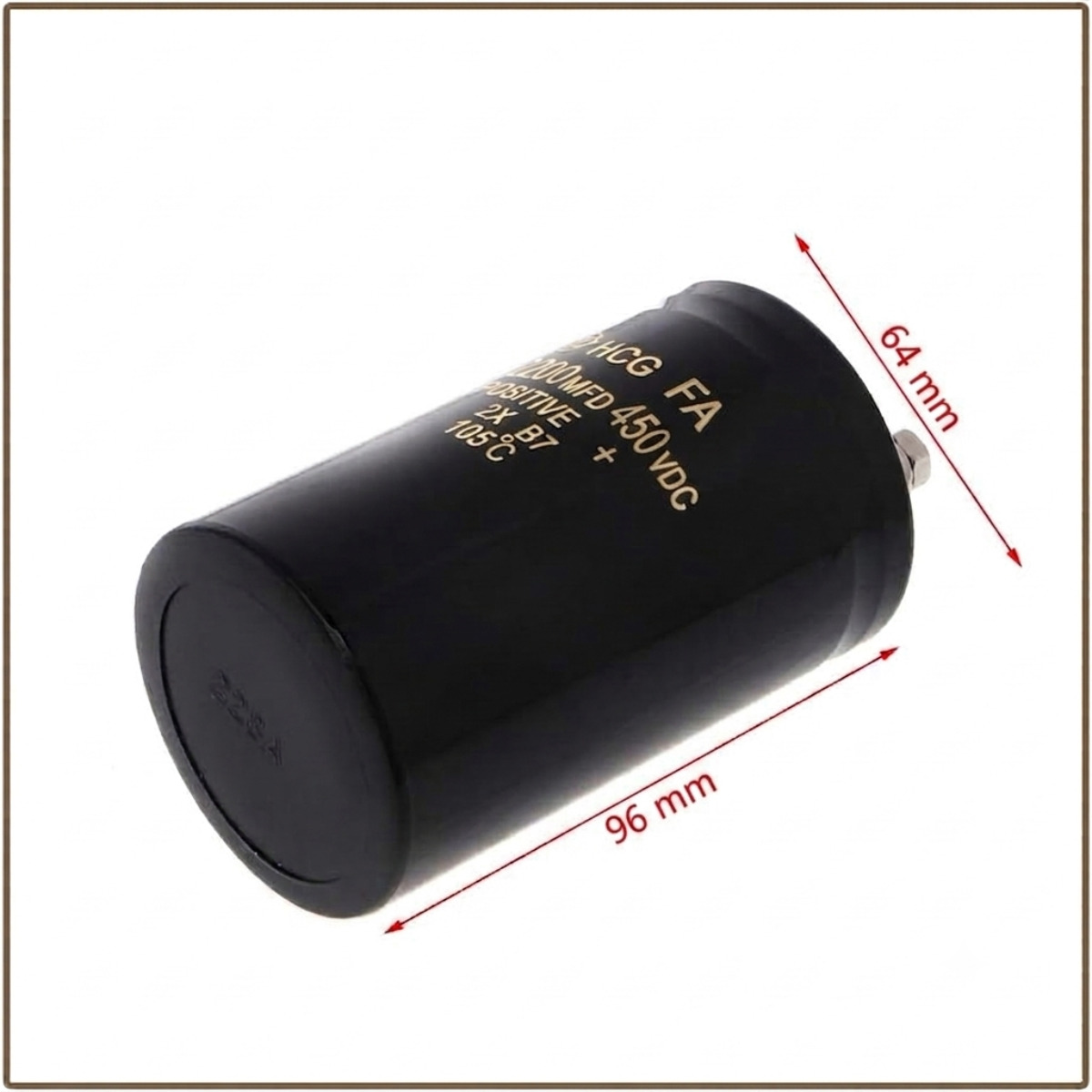

| Dimensions | Diameter (Ø): 64 mm | Length (L): 96 mm (excluding terminals) |
| Weight | 396 g |
Applications
- Industrial Power Supplies
- Inverters and Motor Drives
- Welding Equipment
- UPS Systems
Package Content
- 1 x Screw Terminal Aluminum Electrolytic Capacitor 2200uF 450V 64x96mm
