seeed reComputer Classic Jetson J4012 16GB ORIN NX
Seeed reComputer Classic Jetson J4012 with NVIDIA Jetson Orin NX 16GB, 100 TOPS AI, 128GB NVMe SSD, M.2 Key M and Key E slots, compact edge AI system.
99,000.00 EGP
Buy Nowseeed reComputer Classic Jetson J4012 16GB ORIN NX
The seeed reComputer Classic Jetson J4012 16GB ORIN NX is a compact edge AI computer built around the NVIDIA Jetson Orin NX 16GB production module and Seeed Studio’s reComputer J401 carrier board. It combines high-performance edge computing, accelerated AI processing, camera connectivity, storage expansion, networking, and general-purpose interfaces in a compact enclosed system. The J4012 is specified for up to 100 TOPS AI performance and includes 16GB of 128-bit LPDDR5 memory with 102.4GB/s memory bandwidth.
Features:
- NVIDIA Jetson Orin NX 16GB production module.
- Up to 100 TOPS AI performance.
- 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores.
- 8-core Arm Cortex-A78AE v8.2 64-bit CPU.
- 16GB 128-bit LPDDR5 memory with 102.4GB/s memory bandwidth.
- 2x NVIDIA NVDLA v2 deep learning accelerators.
- PVA v2 vision accelerator.
- 128GB NVMe SSD included.
Specifications:
| Parameter | Value |
|---|---|
| Product Series | reComputer Classic |
| Model | J4012 |
| NVIDIA Module | Jetson Orin NX 16GB |
| AI Performance | 100 TOPS |
| GPU Architecture | NVIDIA Ampere |
| GPU Cores | 1024 CUDA cores |
| Tensor Cores | 32 |
| GPU Max Frequency | 918MHz |
| CPU | 8-core Arm Cortex-A78AE v8.2 64-bit |
| CPU Max Frequency | 2GHz |
| CPU Cache | 2MB L2 + 4MB L3 |
| Deep Learning Accelerator | 2x NVDLA v2 |
| Vision Accelerator | 1x PVA v2 |
| Memory | 16GB 128-bit LPDDR5 |
| Memory Bandwidth | 102.4GB/s |
| Included Storage | 128GB NVMe SSD |
| Storage Expansion | 1x M.2 Key M |
| Wireless Expansion | 1x M.2 Key E |
| USB | 4x USB 3.2 Type-A, 1x USB 2.0 Type-C |
| USB Type-A Speed | Up to 10Gbps |
| Ethernet | 1x Gigabit Ethernet, 10/100/1000M |
| Display Output | 1x HDMI 2.1 |
| Camera Interface | 2x 2-lane 15-pin MIPI CSI |
| Expansion Header | 1x 40-pin |
| Control/UART Header | 1x 12-pin |
| CAN | 1x CAN FD interface |
| Fan Connector | 1x 4-pin 5V PWM |
| RTC | RTC socket + 2-pin RTC header |
| Input Voltage | 9VDC to 19VDC |
| Recommended Power Supply | 12VDC/5A |
| Operating Temperature | -10°C to 60°C |

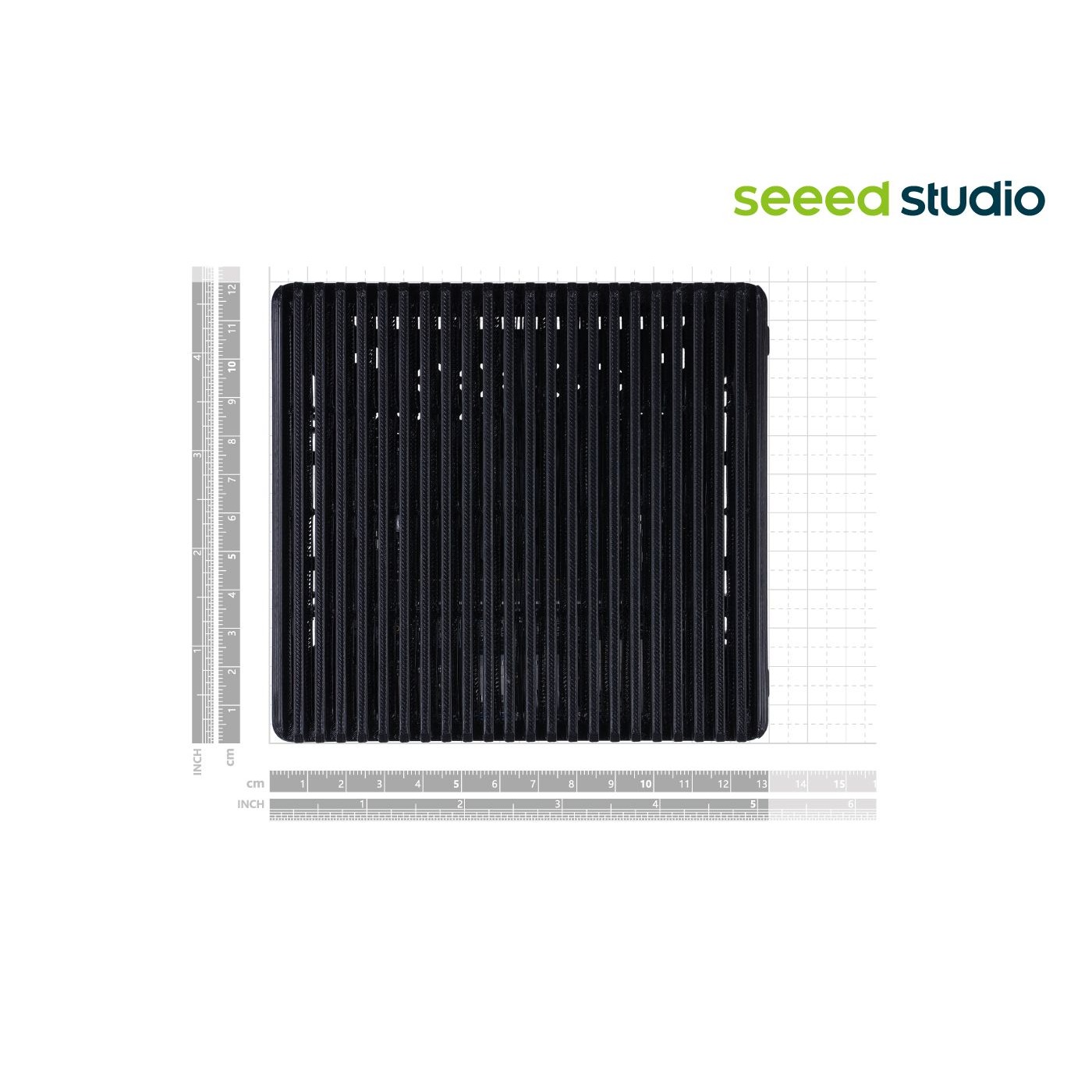

| Overall Dimensions | 130mm × 120mm × 58.5mm |
| JetPack Version | JetPack 5.1.1 |
| Super Mode | Not supported |
| Mounting Module Interface | 260-pin SO-DIMM |
Configuration:
Applications:
- Edge AI and machine learning applications.
- Computer vision and image-processing systems.
- Intelligent camera systems.
- Robotics and autonomous robotic platforms.
- Industrial AI and automation.
- Smart manufacturing and machine vision.
- AI-enabled IoT edge devices.
- Video analytics and real-time image analysis.
- Embedded AI development and prototyping.
- Multi-camera AI applications.
- Autonomous systems and intelligent machines.
- Deep learning inference at the network edge.
Package Include:
- 1x NVIDIA Jetson Orin NX 16GB module.

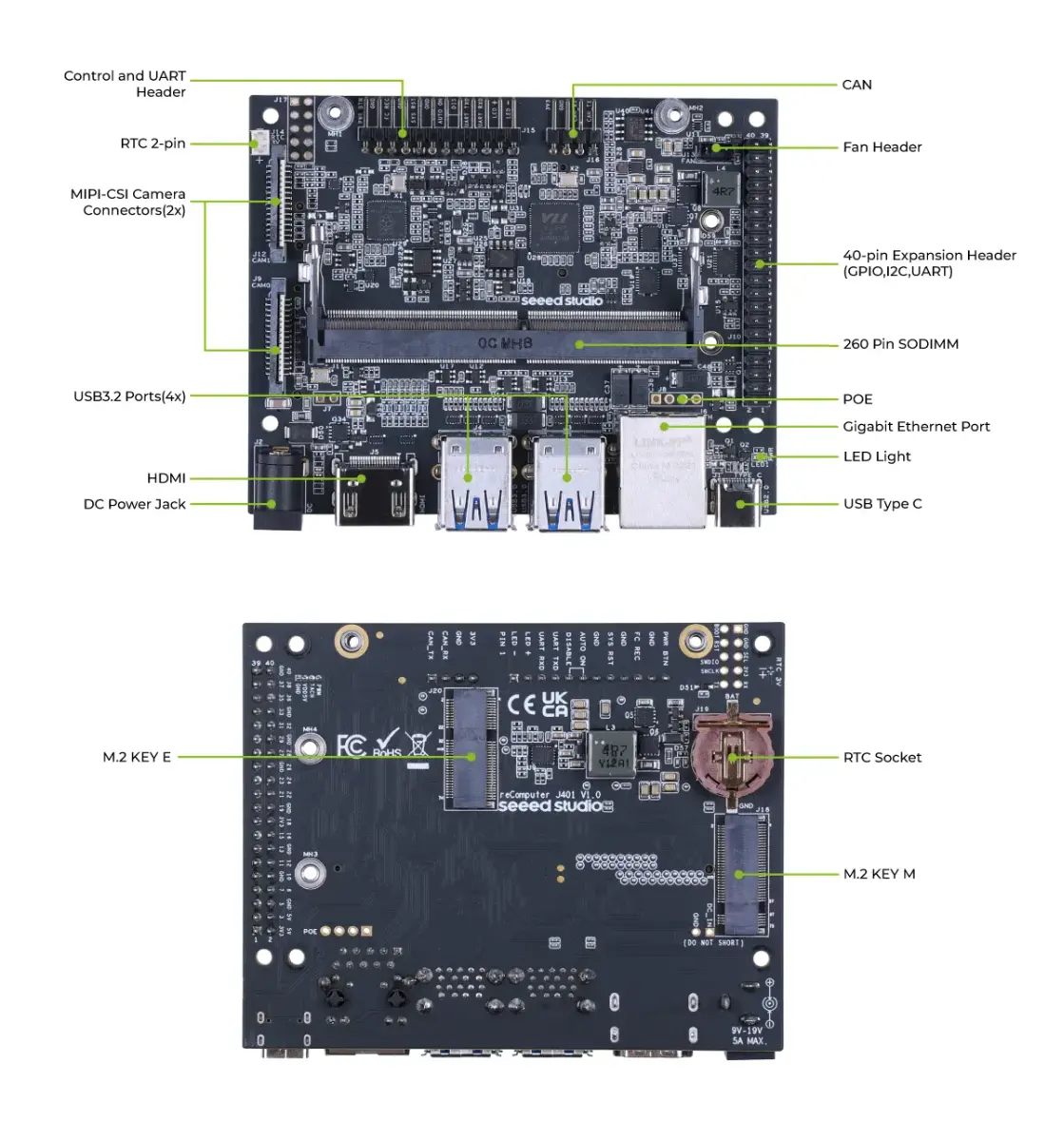

- 1x Seeed reComputer J401 carrier board.
- 1x 128GB NVMe SSD.
- 1x Fan with aluminum heatsink.
- 1x Black aluminum case.
- 1x 12VDC Power adapter.
