Single Digit 7-Segment Tri-Color LED Display 2.3 inch Common Anode
The Single Digit 7-Segment Tri-Color LED Display 2.3 Inch Common Anode is a large-format single-digit numeric LED display designed for applications requiring clear and highly visible numerical indication. The display uses a 2.3-inch character height and a seven-segment arrangement for displaying numeric information.
Features:
- Single-digit LED display.
- 2.3-inch (57mm) character height.
- Common-anode configuration.

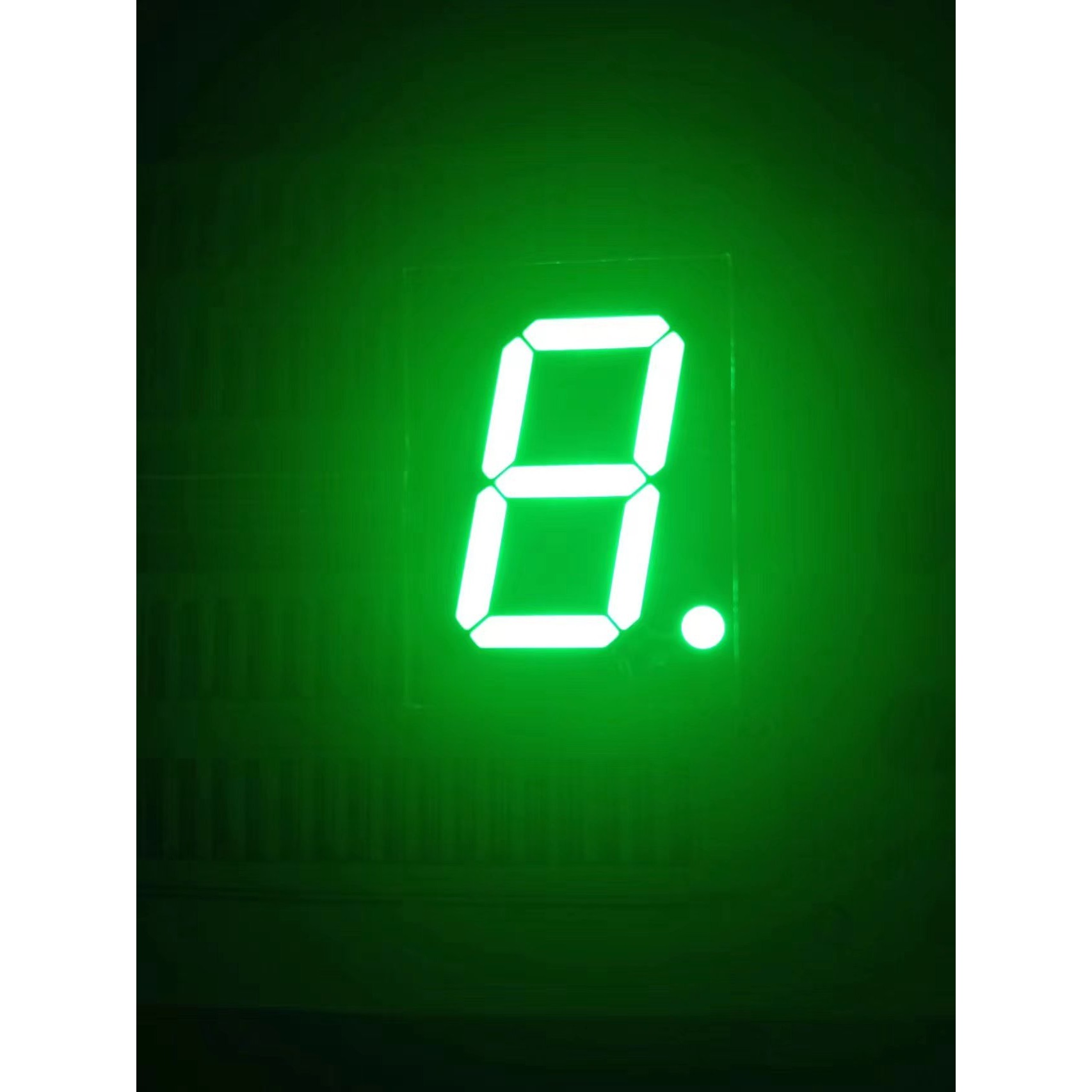

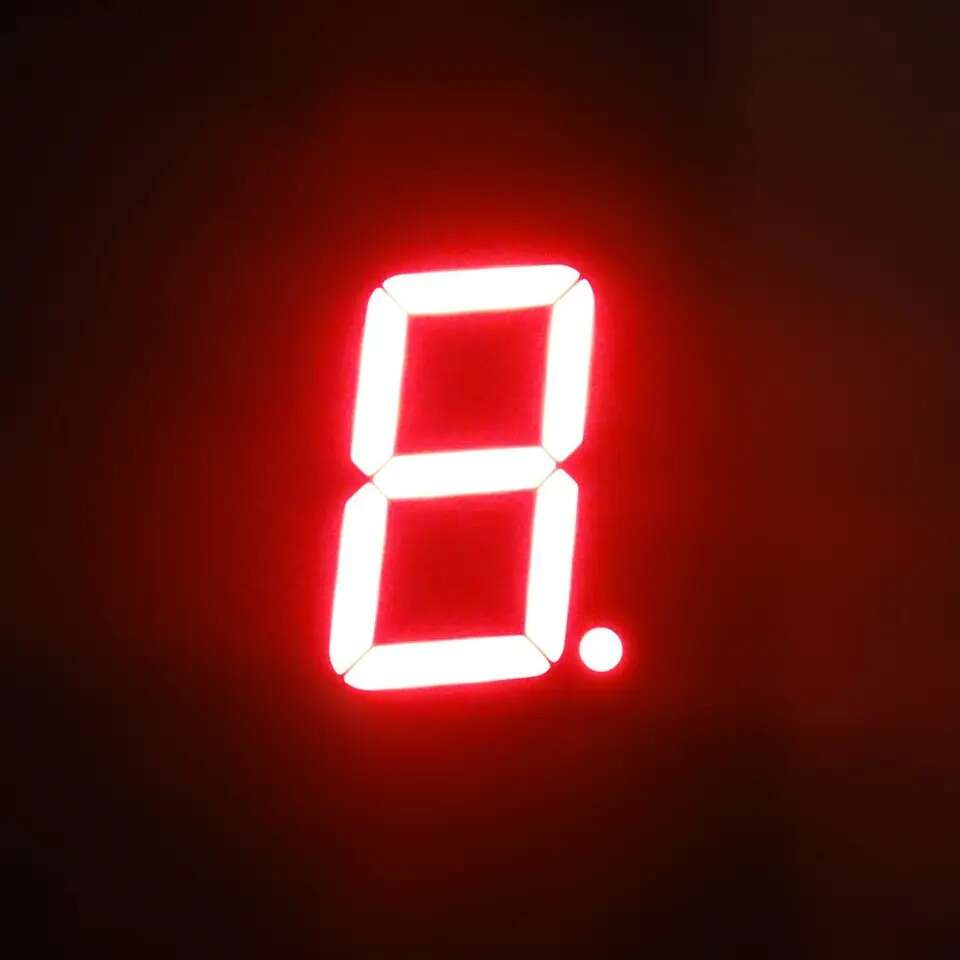

- Red and green LED elements.

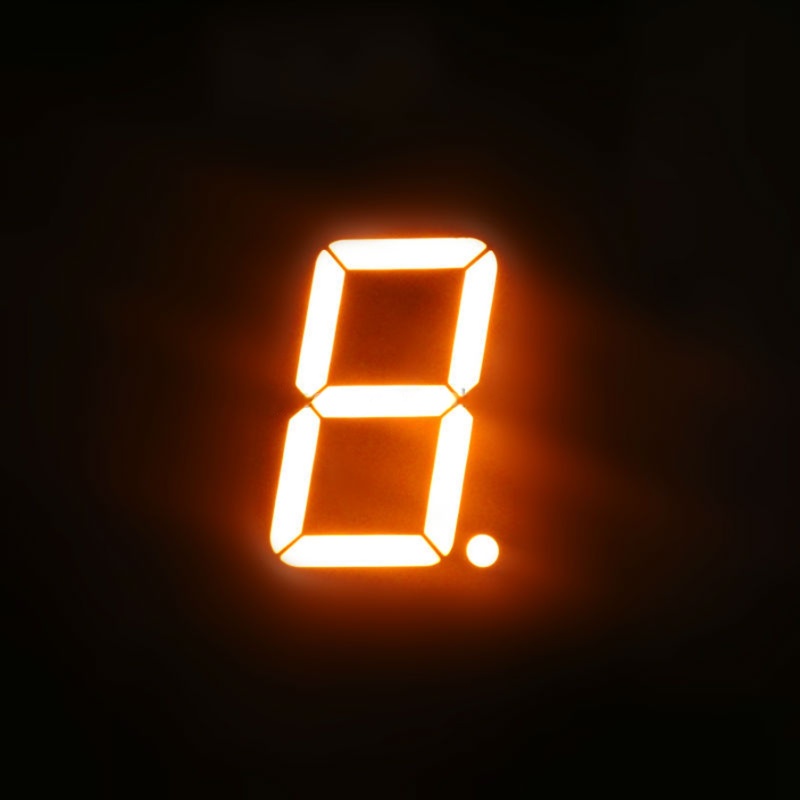

- Red, green, and orange mixed-color display capability.
- High-efficiency LED sources.

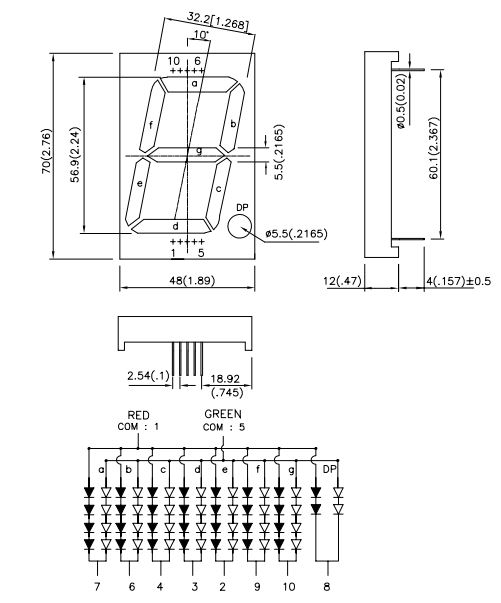

Specification:
| Parameter | Value |
|---|---|
| Product Type | 7-Segment LED Display |
| Display Type | Single Digit Numeric |
| Character Height | 57mm / 2.3 Inch |
| Number of Digits | 1 |
| LED Colors | Red, Green, Orange Mixed |
| LED Configuration | Red + Green |
| Common Electrode | Common Anode |
| Mounting Type | Through-Hole (THT) |
| Lens Type | White Diffused |
| Operating Current | 20mA |
| Operating Voltage | 9-12V |
| Red Wavelength | Approximately 625nm |
| Green Wavelength | Approximately 568nm |
| Red Luminous Intensity | 8–18mcd |
| Green Luminous Intensity | 8–24mcd |
Applications:
- Digital counters.
- Large numerical displays.
- Industrial instrumentation.
- Control panels.
- Digital timers and clocks.
- Numeric status indicators.
- Electronic measuring equipment.
- Home and smart appliances.
- Industrial equipment.
- Electronic DIY projects.
- Microcontroller-based display projects.
Package Include:
1x Single Digit 7-Segment Tri-Color LED Display 2.3 inch Common Anode.
