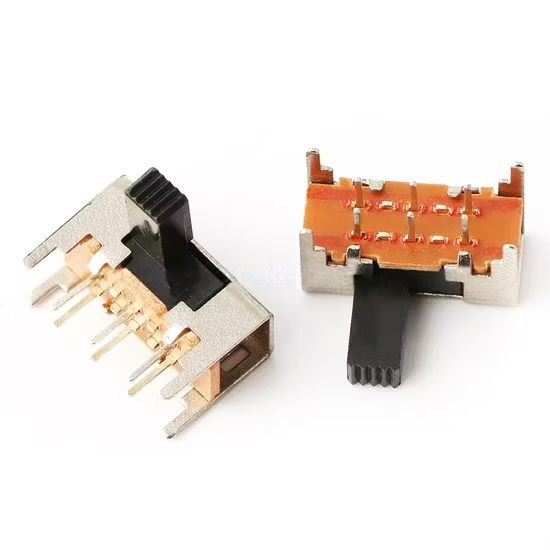

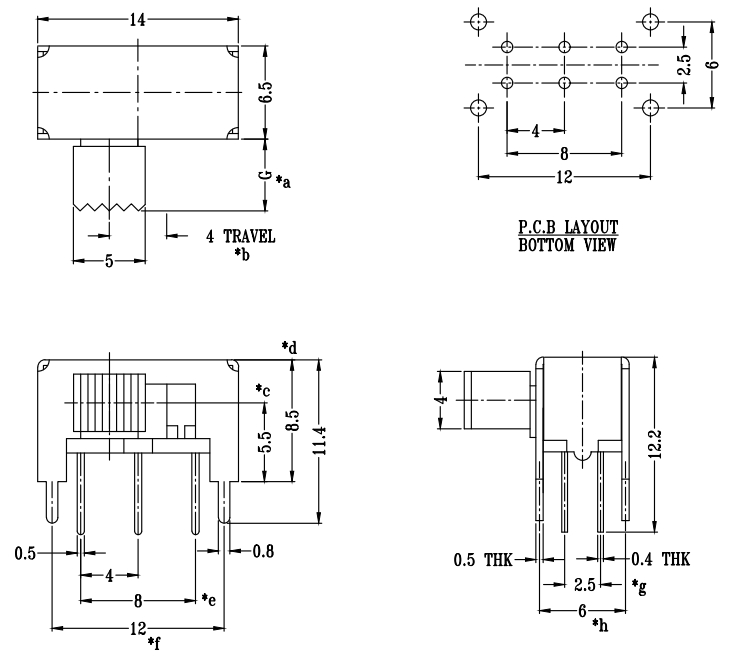

SK-22H09G080 Slide Switch Right-Angle DPDT For PCB 2 Position 6 Pin
The SK-22H09G080 slide switch is a compact and reliable DPDT (Double Pole Double Throw) switching component designed for printed circuit board mounting. With its right-angle configuration, it allows horizontal installation, making it ideal for space-constrained electronic assemblies. The switch features a 2-position (ON-ON) mechanism, enabling it to control two independent circuits simultaneously, providing flexible signal routing and control in low-power applications. Its miniature size ensures easy integration into modern electronic designs without occupying excessive board space.
Constructed with durable materials, this slide switch is engineered to deliver consistent electrical performance and mechanical stability. The 6-pin configuration ensures secure connectivity, while the sliding actuator provides smooth and precise operation. It is suitable for applications requiring frequent switching, offering dependable performance across repeated cycles. Typically used in consumer electronics and embedded systems, the switch supports efficient circuit control with minimal power loss.
Features:
- Compact miniature design suitable for PCB mounting.
- DPDT configuration allows control of two circuits simultaneously.
- 2-position (ON-ON) switching mechanism.
- Right-angle mounting for space-saving layouts.
- Smooth sliding actuator for precise operation.
- Durable construction for long operational life.
- Reliable electrical performance with low contact resistance.
- Suitable for low-power electronic applications.
Specifications:
| Specification | Value |
|---|---|
| Product Name: | Slide Switch |
| Model: | SK-22H09G080 |
| Switch Type: | DPDT (Double Pole Double Throw) |
| Number of Positions: | 2 Position (ON-ON) |
| Number of Pins: | 6 Pin |
| Mounting Type: | Through Hole, Right Angle |
| Rated Current: | 0.3A |
| Rated Voltage: | 30V DC |
| Contact Resistance: | ≤ 70 mΩ |
| Insulation Resistance: | ≥ 100 MΩ |
| Dielectric Strength: | 500V AC |
| Electrical Life: | 10,000 Cycles |
| Operating Temperature: | -20°C to +70°C |
| Contact Material: | Copper Alloy / Silver Plated |
Applications:
- Consumer Electronics
- Computer Peripherals
- Telecommunication Devices
- Audio Equipment
- Embedded Systems
- DIY Electronics Projects
Package Content:
- 1x SK-22H09G080 Slide Switch Right-Angle DPDT For PCB 2 Position 6 Pin
