SMA-KZ-5 Straight Crimp Female Socket Cable Mount Connector for RG6 50 Ohm (Full Copper)
The SMA-KZ-5 Straight Crimp Female Socket Cable Mount Connector is a precision 50 Ohm RF connector engineered for terminating RG6 coaxial cable. Its straight cable-mount design provides a reliable mechanical connection and excellent RF signal transmission, making it suitable for wireless communication systems, RF modules, Wi-Fi antennas, GPS equipment, SDR platforms, and laboratory test instruments. The connector features a crimp ferrule for the cable shield and a soldered center contact to ensure dependable electrical and mechanical performance.
Manufactured from full copper with gold-plated contacts, this connector delivers excellent electrical conductivity, low insertion loss, and outstanding corrosion resistance. The PTFE dielectric provides superior insulation and stable high-frequency performance, while the precision-threaded SMA interface ensures a secure, vibration-resistant connection for professional RF installations and custom coaxial cable assemblies.
Features:
- Standard SMA female socket interface.
- Straight cable mount design.
- Compatible with RG6 coaxial cable.
- Full copper construction.
- Gold-plated contacts for excellent conductivity.
- Crimp outer shield termination.
- Solder center contact.
- Low insertion loss.
- Precision threaded coupling.
- Suitable for high-frequency RF applications.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Cable Mount Connector |
| Model | SMA-KZ-5 |
| Connector Type | SMA Female Socket |
| Orientation | Straight |
| Connector Series | SMA |
| Characteristic Impedance | 50 Ohm |
| Compatible Cable | RG6 |
| Mounting Style | Cable Mount |
| Termination Type | Crimp (Outer Shield), Solder (Center Contact) |
| Body Material | Full Copper |
| Contact Plating | Gold Plated |
| Dielectric Material | PTFE |
| Coupling Style | Threaded |
| Frequency Range | DC to 18 GHz (Max) |
Applications
- Wi-Fi antenna systems.
- RF communication equipment.
- GPS antenna assemblies.
- Wireless networking devices.
- RF signal distribution.
- Software Defined Radio (SDR).
- RF test and measurement equipment.
- Industrial wireless systems.
- Custom RG58 cable assemblies.
- RF laboratory projects.

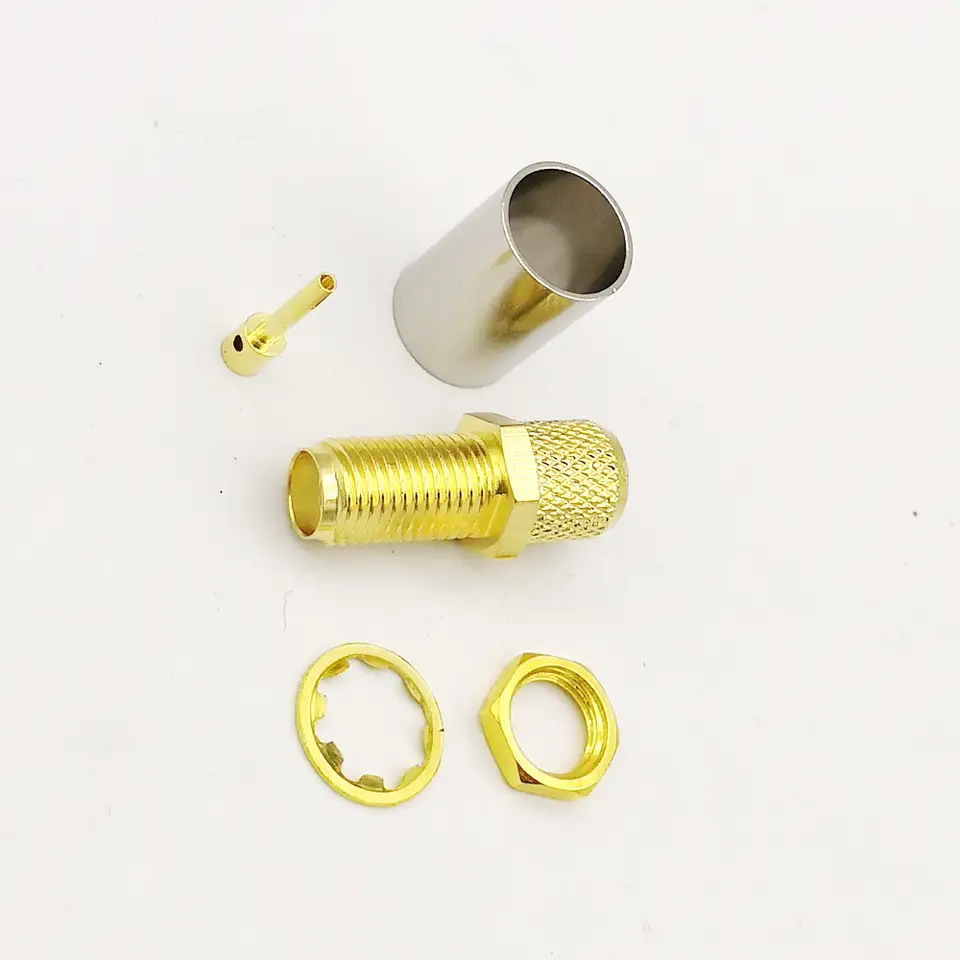

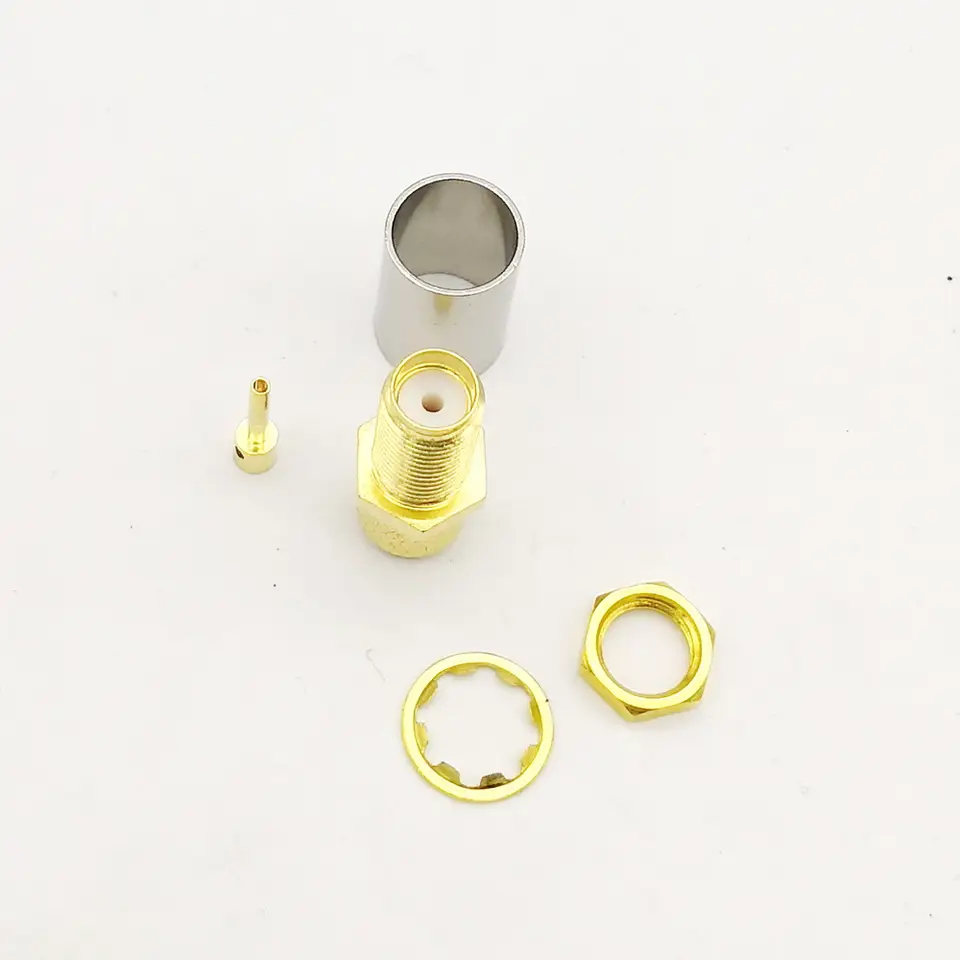

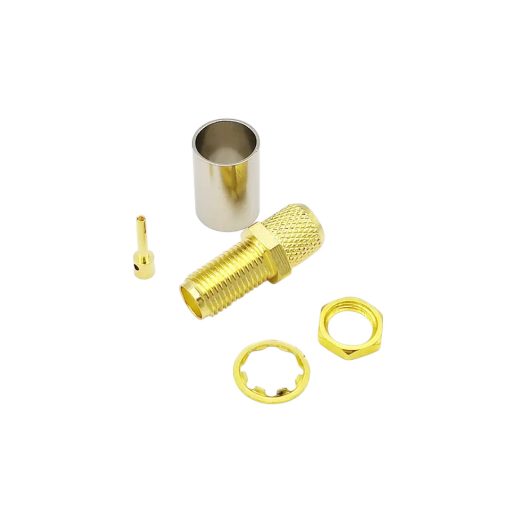

Package Includes:
- 1 × SMA-KZ-5 Straight Female Socket Cable Connector.
- 1 × Gold-plated Center Pin.
- 1 × Crimp Ferrule.
- 1 × Hex Nut.
- 1 × Lock Washer.
