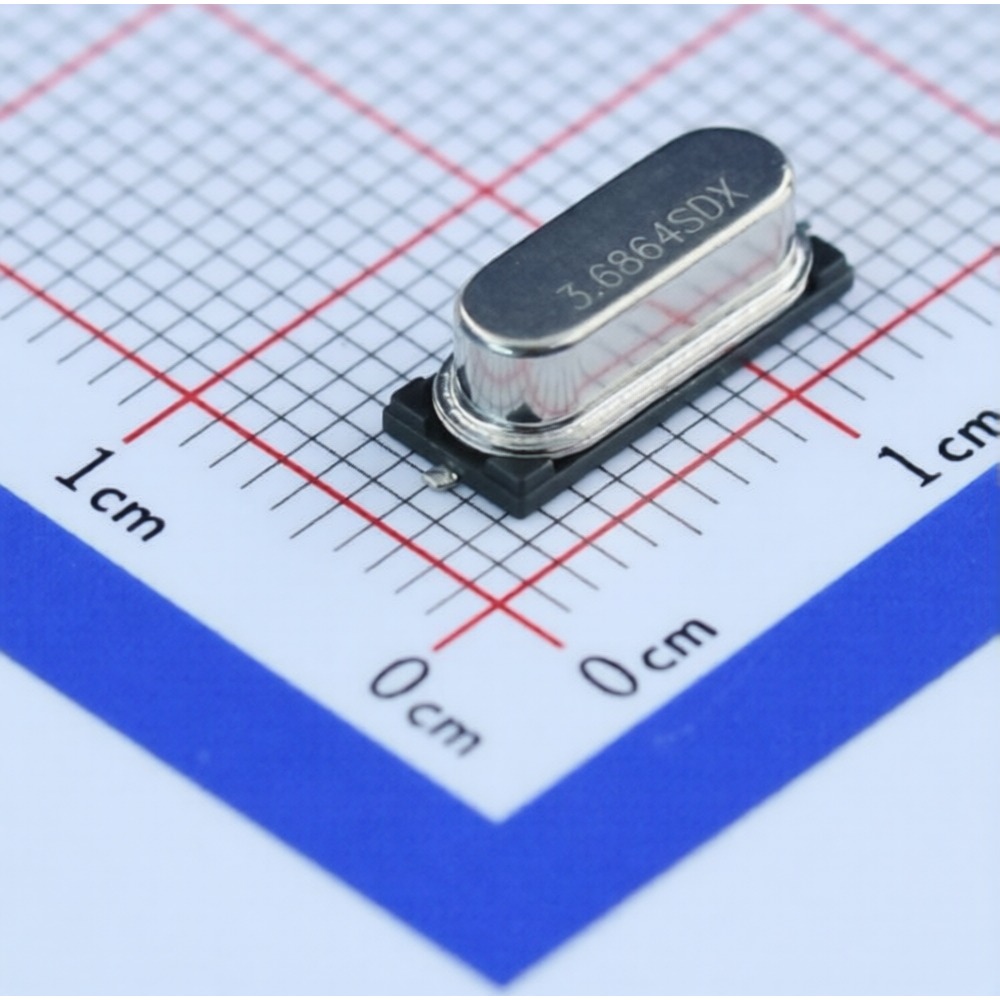

SMD Crystal Oscillator 3.6864MHz ±20ppm 20pF 2 Pin
The SMD Crystal Oscillator 3.6864MHz ±20ppm 20pF 2 Pin is a high-stability quartz crystal resonator designed to provide an accurate clock source for microcontrollers, communication devices, embedded systems, and digital electronic circuits. Operating at 3.6864MHz, this crystal offers excellent frequency accuracy with a ±20ppm frequency tolerance and a 20pF load capacitance, making it suitable for UART timing, clock generation, industrial controllers, and precision digital applications. It is supplied in a standard HC-49S-SMD surface-mount package with two electrical terminals for easy PCB assembly.
Features:
- Fundamental frequency of 3.6864MHz.
- ±20ppm frequency tolerance.
- 20pF load capacitance.
- ±30ppm frequency stability.
- Standard HC-49S-SMD package.
- 2-pin surface-mount design.
- Quartz crystal resonator.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | YXC Crystal Oscillators |
| Model Number | X49SM36864MSD2SC-1 |
| Product Type | Quartz Crystal Resonator |
| Frequency | 3.6864MHz |
| Frequency Tolerance | ±20ppm |
| Frequency Stability | ±30ppm |
| Load Capacitance | 20pF |
| Package Type | HC-49S-SMD |
| Number of Pins | 2Pins |
| Mounting Type | Surface Mount (SMD) |
| Operating Temperature | -20°C to +70°C |

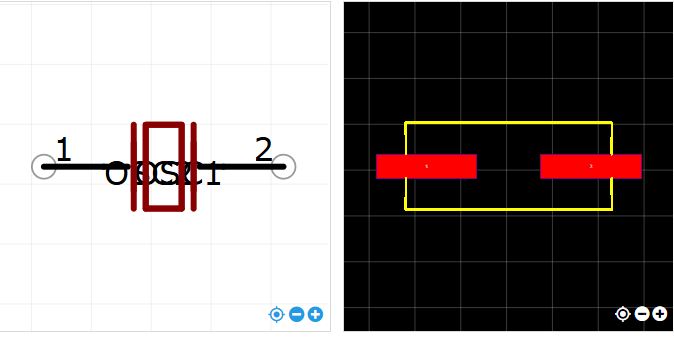

Configuration:
Applications:
- Microcontroller clock circuits.
- UART communication systems.
- Embedded systems.
- Industrial control equipment.
- Digital timing circuits.
- Communication modules.
- Development boards.
- Consumer electronics.
- Measurement instruments.
- Frequency reference circuits.
Package Include:
1x SMD Crystal Oscillator 3.6864MHz ±20ppm 20pF 2 Pin.
