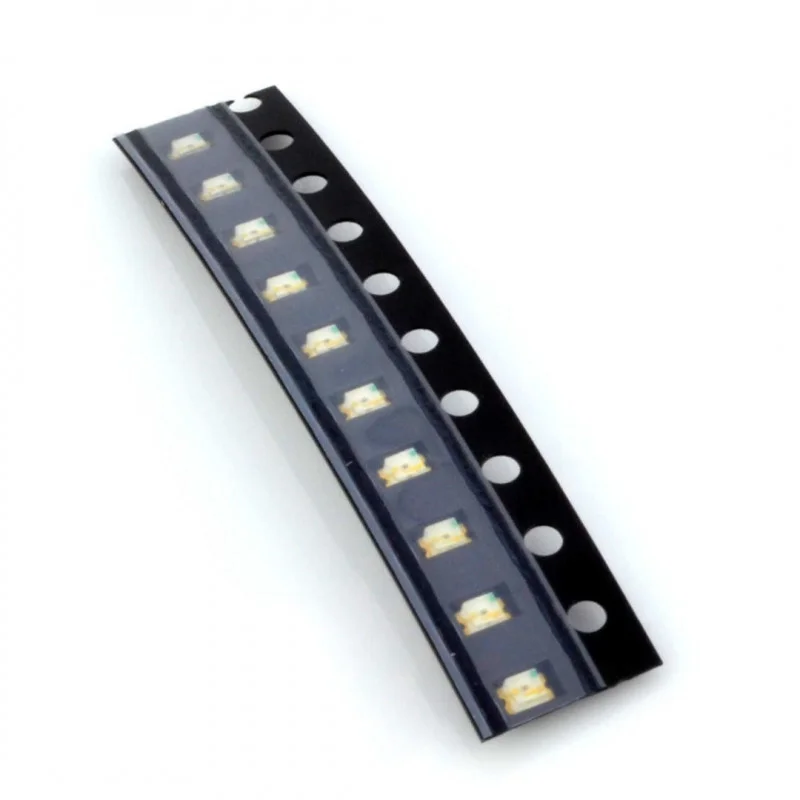

SMD LED RGB Common Cathode 0805
The SMD LED RGB Common Cathode 0805 is a compact surface-mount LED that integrates red, green, and blue LEDs into a single 0805 package, allowing the creation of a wide range of colors through independent control of each LED chip. Its common cathode configuration simplifies PCB routing in many microcontroller and LED driver applications, making it ideal for space-constrained designs.
With its small footprint, high brightness, and wide viewing angle, this LED RGB is suitable for consumer electronics, wearable devices, indicator panels, automotive electronics, and DIY electronics projects. It is fully compatible with PWM control from popular microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi, enabling smooth color mixing and brightness adjustment.
Features:
- Compact 0805 surface-mount package.
- Integrated red, green, and blue LEDs.
- Common cathode configuration.
- Wide color mixing capability.
- High brightness output.
- Wide viewing angle.
- Suitable for PWM brightness control.
- Low power consumption.
- Excellent solderability for SMT assembly..
- Long operating life
- Ideal for compact PCB designs.
Specifications:
| TYPE | DESCRIPTION |
| Category | Optoelectronics
LED Indication – Discrete |
| Color | Red, Green, Blue (LED RGB) |
| Configuration | Common Cathode |
| Millicandela Rating | 112.5mcd Red, 285mcd Green, 71.5mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.30mm |
| Voltage – Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Viewing Angle | 130° Red, 120° Green, 128° Blue |
| Mounting Type | Surface Mount |
| Wavelength – Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Wavelength – Peak | 632nm Red, 520nm Green, 468nm Blue |
| Features | – |

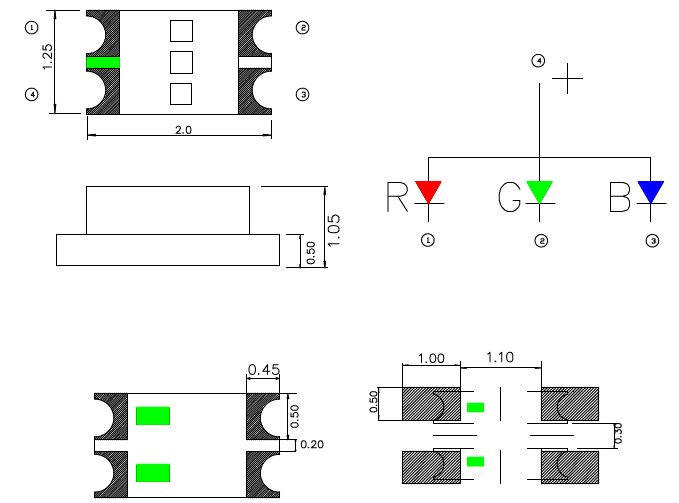

| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 2.00mm L x 1.30mm W |
| Height (Max) | 0.60mm |
Applications:
- Status indicator LEDs.
- RGB lighting effects.
- Arduino projects.
- Raspberry Pi projects.
- ESP32 and STM32 projects.
- Consumer electronics.
- Control panels.
- Backlighting.
- Decorative lighting.
- Wearable electronics.
- Automotive dashboard indicators.
- Smart home devices.
Package Includes:
- 1 × SMD RGB LED Common Cathode 0805.
