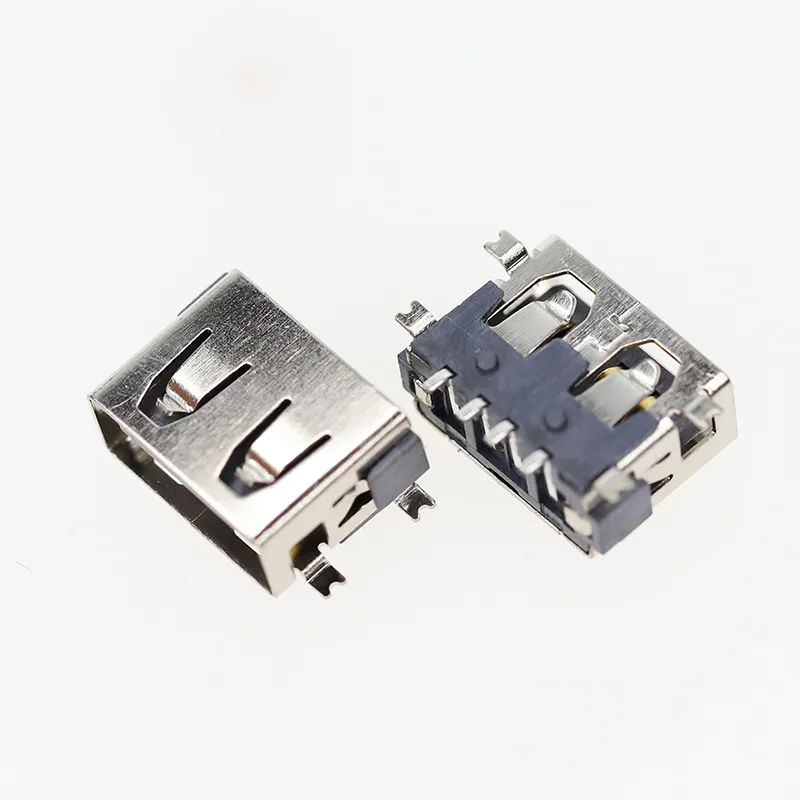

SMD PCB Solder Female Type-A USB Connector US02-S63P
SMD PCB Solder Female Type-A USB Connector US02-S63P is a surface-mount USB Type-A receptacle specifically designed for compact PCB-based electronic devices requiring reliable USB connectivity. Its right-angle SMT structure allows efficient board space utilization while supporting secure mechanical mounting and dependable electrical performance.
Features:
- USB Type-A female receptacle connector.
- Surface-mount SMT PCB installation.
- Right-angle connector orientation.
- Compact space-saving design.
- Durable metal shielding structure.
- Suitable for automated SMT assembly.
- Reliable USB data transmission.
- Supports USB power connection applications.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | US02-S63P |
| Connector Type | USB Type-A Female |
| Mounting Type | SMD / SMT |
| Orientation | Right Angle |
| Interface Type | USB Type-A Receptacle |
| Contact Positions | 4Pin |
| Shield Type | Metal Shielded |
| Termination Type | Surface Mount Solder |
| Contact Material | Copper Alloy |
| Housing Material | High Temperature Thermoplastic |
| Rated Current | 1.5A |
| Rated Voltage | 30 |
| Contact Resistance | ≤30mΩ |
| Insulation Resistance | ≥1000MΩ |
| Operating Temperature | -40°C to +85°C |
| Application | USB Data and Power Connection |
Applications:
-
USB host port implementation on microcontroller development boards.
-
Self-powered USB device interfaces in embedded systems and IoT nodes.
-
Charging port connections for portable power banks and battery packs.
-
Data communication interfaces for Arduino, Raspberry Pi, and single-board computers.
-
Consumer electronics including audio devices, cameras, and peripheral equipment.
-
Industrial control panels and human-machine interface modules.
-
Medical device data logging and firmware update ports.
-
Automotive aftermarket electronics and diagnostic tool interfaces.
-
Test and measurement equipment USB connectivity.
Package Include:
1x SMD PCB Solder Female Type-A USB Connector US02-S63P
