SN-03H Exchangeable Die Sets for 02A Terminal Crimping

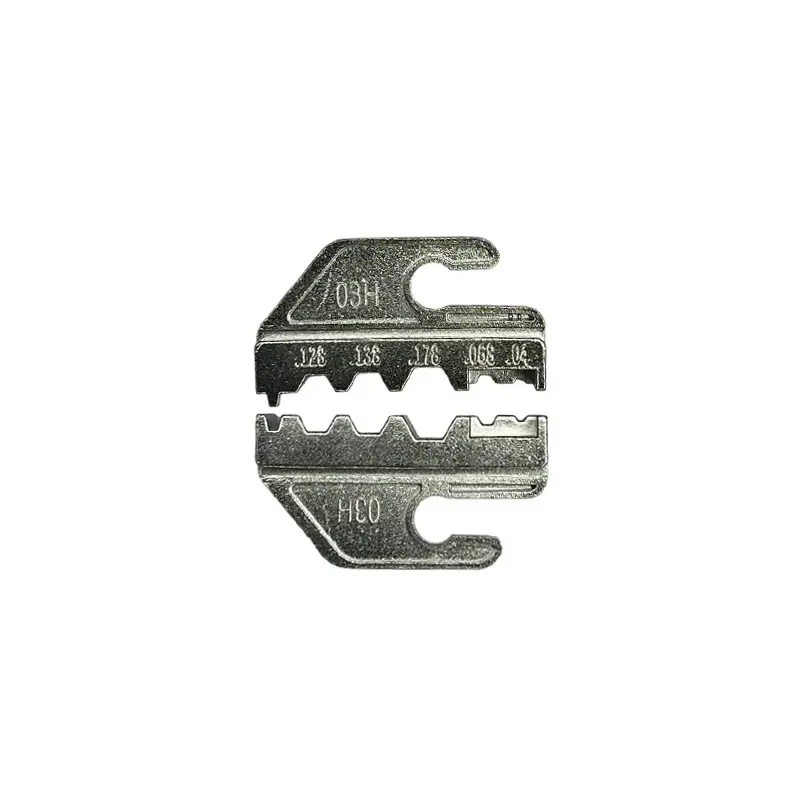

SN-03H Exchangeable Die Sets for 02A Terminal Crimping are replacement crimping dies designed for compatible SN-series mechanical crimping tools with a 4mm die mounting port. The die provides five precision crimping cavities for RF and coaxial connector applications, with sizes marked 0.178″, 0.138″, 0.128″, 0.068″, and 0.04″ on the physical sample. These markings correspond to approximately 4.52mm, 3.50mm, 3.25mm, 1.73mm, and 1.02mm, respectively.
Features:
- Exchangeable SN-03H die designed for compatible SN-series mechanical crimping tools.
- 4mm mounting interface for compatible SN-series crimpers.

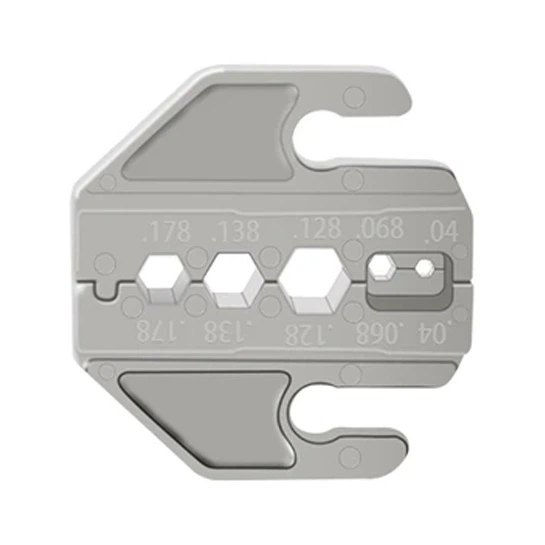

- Five dedicated crimping cavities for RF and coaxial connector applications.
- Physical die markings include 0.178″, 0.138″, 0.128″, 0.068″, and 0.04″.
- The 0.178″ cavity is suitable for compatible RG174 and RG178 applications
Specifications:
| Parameter | Value |
|---|---|
| Model | SN-03H |
| Die Type | Exchangeable crimping die |
| Tool Compatibility | Compatible SN-series crimping tools |
| Mounting Port Width | 4mm |
| Number of Crimping Sizes | 5 |
| Crimping Sizes | 0.178″, 0.138″, 0.128″, 0.068″, 0.04″ |
| Approximate Metric Sizes | 4.52mm, 3.50mm, 3.25mm, 1.73mm, 1.02mm |

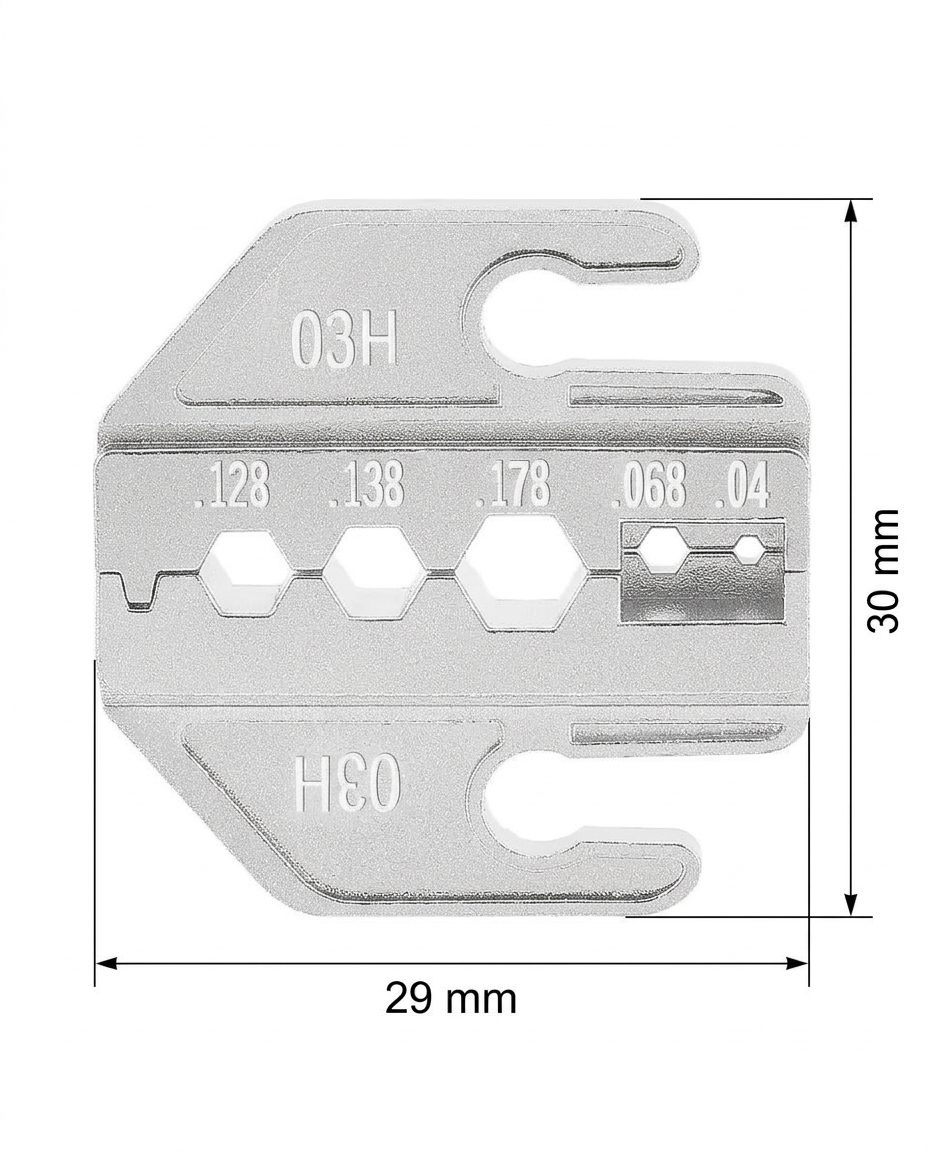

| Crimping Surface Widths | 8mm and 1.9mm |
| Primary Application | RF and coaxial connectors |
| 0.178″ Application | RG174 and RG178 compatible connectors |
| 0.128″ Application | SMA and SMB compatible connectors |
| Die Marking | 03H |
| Material | Metal die construction |
Applications:
- Crimping compatible RF connectors.
- Crimping compatible coaxial connectors.
- RG174 and RG178 cable assembly applications.
- SMA and SMB connector assembly applications.
- Communication equipment cable preparation.
- RF cable fabrication and repair.
- Electronics workshop and maintenance applications.
- Replacement die applications for compatible SN-series crimping tools.
Package Include:
1x SN-03H Exchangeable Die Sets for 02A Terminal Crimping.
