SN75110AN Buffers & Dual Line Driver 5V 35 mA IC DIP-14
The SN75110AN is a dual differential line driver integrated circuit designed for high-speed data transmission and reliable communication between digital systems. It converts standard logic input signals into differential outputs that can drive balanced transmission lines, helping reduce noise interference and signal degradation over longer distances. This makes it suitable for use in communication interfaces, industrial control systems, and computer peripherals.
The IC contains two independent driver circuits capable of driving differential signals for twisted-pair or balanced lines. The SN75110AN is commonly used with compatible receivers such as the SN75107 to form a complete differential communication system. Its DIP-14 through-hole package allows easy integration into prototyping boards and PCB designs, making it useful for both industrial equipment and educational electronics projects.
Features:
- Dual differential line driver architecture.
- Designed for balanced data transmission.
- High noise immunity for reliable communication.
- Compatible with differential line receivers.
- Suitable for long-distance signal transmission.
- Supports high-speed digital data communication.
- TTL compatible inputs.
- Through-hole DIP package for easy PCB mounting.

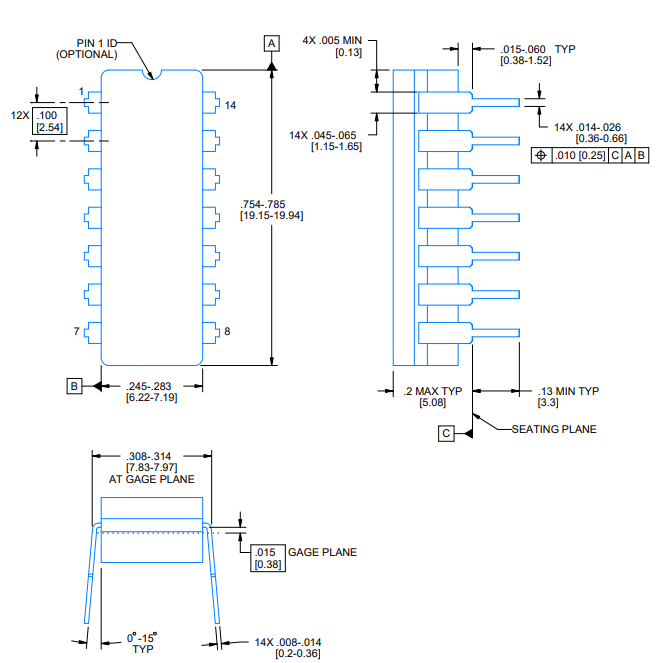

Specifications:
| Parameter | Value |
|---|---|
| IC Model | SN75110AN |
| Device Type | Dual Line Driver / Buffer |
| Package Type | DIP |
| Pin Count | 14 Pins |
| Supply Voltage | 4.75V – 5.25V |
| Output Type | Differential |
| Logic Compatibility | TTL |
| Operating Temperature | 0°C to 70°C |
| Mounting Type | Through-Hole |
Pinout:
| Pin No. | Pin Name |
|---|---|
| 1 | 1A |
| 2 | 1B |
| 3 | 1C |
| 4 | 2C |
| 5 | 2A |
| 6 | 2B |
| 7 | GND |
| 8 | 2Y |
| 9 | 2Z |
| 10 | D |
| 11 | Vcc- |
| 12 | 1Z |
| 13 | 1Y |
| 14 | Vcc+ |
Applications:
- Differential data communication systems.
- Industrial control interfaces.
- Computer peripheral communication.
- Long-distance digital signal transmission.
- RS-422 and similar communication interfaces.
- Data acquisition systems.
Package Included:
- 1x SN75110AN Buffers & Dual Line Driver 5V 35 mA IC DIP-14.
