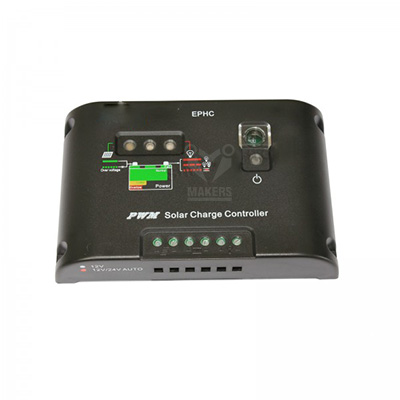

Features：
·Intelligent System Optimum Control
·12/24V auto work
·High efficient Series PWM charging with temperature compensation
·Use MOSFET as electronic switch, without any mechanical switch
·Load and battery status indicators
·Electronic protection: over charging, over discharging, overload, and short circuit
Specifications:
| Electrical parameters | |
| System voltage | 12 / 24VDC Auto work |
| Nominal battery current | 10A |
| Charge circuit voltage drop | ≤0.26V |
| Discharge circuit voltage drop | ≤0.15V |
| Self consumption | ≤6mA |
| Equalize charging voltage | 14.8V;x2/24V |
| Boost charging voltage | 14.4V;x2/24V |
| Float charging voltage | 13.7V;x2/24V |
| Low voltage reconnect charging voltage | 13.2V;x2/24V |
| Under voltage warning voltage | 12V; x2/24V |
| Low voltage disconnect voltage | 11.1V;x2/24V |
| Equalize duration | 60 MINS |
| Boost duration | 60 MINS |
| Working temperature | -35℃ to +55℃ |
| Humidity | 10%-90% NC |
| Enclosure | IP30 |
| Terminal | 4mm2 |
| Net weight | 0.15KG |
