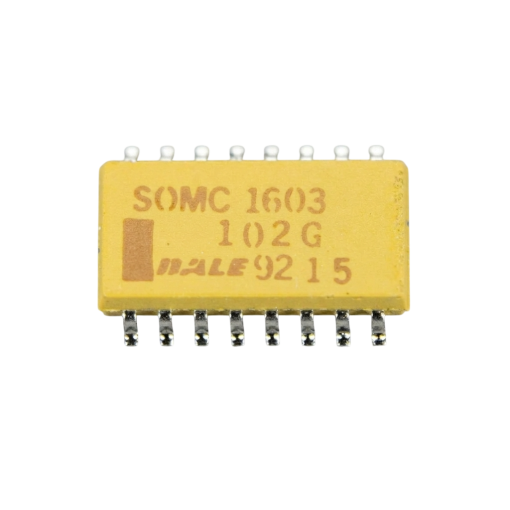

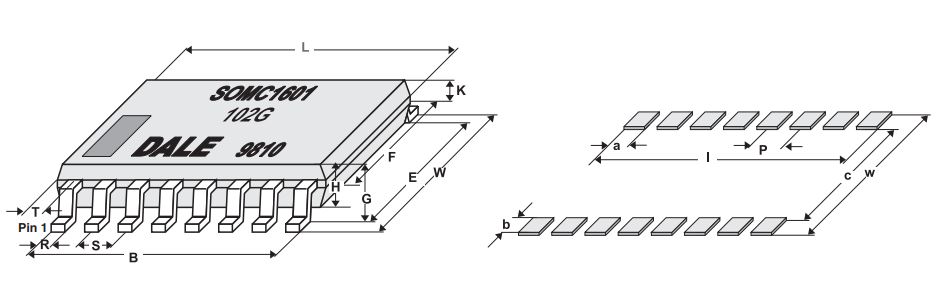

SOMC1603-102G Dale SMD BUSSED RESISTOR NETWORKS 1K Ohm 2% SOP-16
The SOMC1603-102G is a surface-mount bussed resistor network featuring multiple 1kΩ thick-film resistors integrated into a compact SOP-16 package. This resistor array is designed to reduce PCB space usage, simplify circuit assembly, and minimize the number of discrete resistor components required in digital and embedded electronic systems. The bussed configuration connects one side of all resistor elements to a common pin, making the device suitable for pull-up, pull-down, line termination, and LED current limiting applications.
Features:
- Isolated schematic with 8 separate resistors.
- Medium body small outline molded DIP package for SMT.
- Molded case construction for durability.
- Thick film resistive elements for stable performance.
- Reflow solderable for modern assembly processes.
- Compatible with automatic surface mounting equipment.
- Reduces total assembly costs with integrated network design.
- Wide resistance range availability from 10Ω to 1MΩ.
- Low temperature coefficient of ±100ppm/°C.
- Excellent TC tracking of ±50ppm/°C between resistors.

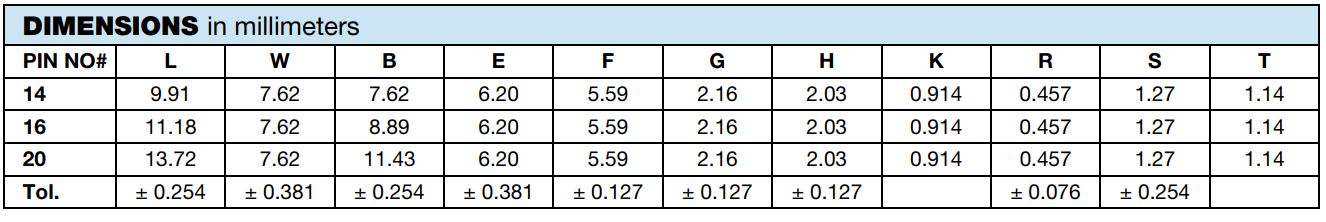

Specifications:
| Parameter | Value |
|---|---|
| Type | Thick Film Resistor Network |
| Schematic | Isolated (03 Circuit) |
| Number of Resistors | 8 |
| Resistance Value | 1KΩ (1,000Ω) |
| Tolerance | ±2% (G = ±2%) |
| Power Rating per Element | 0.16W at +70°C |
| Package Power Rating (Max at +70°C) | 1.28W |
| Temperature Coefficient (TCR) | ±100ppm/°C (-55°C to +125°C) |
| TC Tracking | ±50ppm/°C (-55°C to +125°C) |
| Maximum Working Voltage | 50VDC |
| Limiting Element Voltage | 50VDC |
| Voltage Coefficient | <50ppm/V |
| Insulation Voltage (1 min) | 200VDC/AC peak |
| Operating Temperature Range | -55°C to +125°C |
| Storage Temperature Range | -55°C to +150°C |
| Insulation Resistance | >10¹⁰Ω minimum |
| Package Type | SOP-16 (Small Outline Package) |
| Pin Count | 16 |
| Body Material | Molded epoxy |
| Terminals | Copper alloy, solder dipped |
| Maximum Solder Reflow Temperature | +255°C |
| Mounting Style | Surface Mount (SMD) |
Applications
- Wired OR pull-up configurations.
- Power driven pull-up applications.
- Powergate pull-up circuits.
- Line termination networks.
- Long-line impedance balancing.
- LED current limiting.
- ECL output pull-down networks.
- TTL input pull-down applications.
