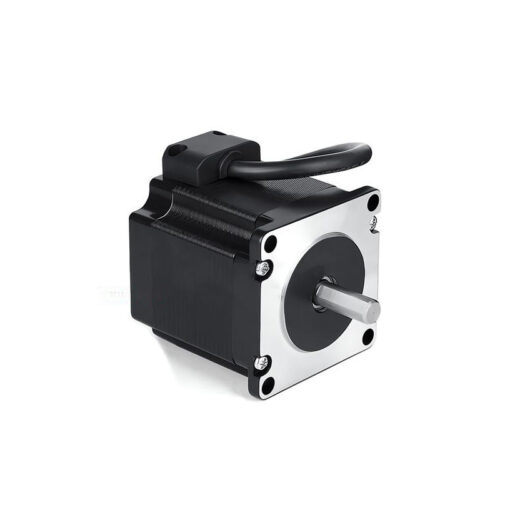

Nema 23 Stepper Motor 57BYGH56
57BYGH56 Nema 23 Stepper Motor 0.8Ω 1.8° 56mm has high-torque with 0.8Ω resistance, and 56mm body length.
950.00 EGP
Out of stockSKU 3496300107506
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Nema 23 Stepper Motor 57BYGH56
The Nema 23 Stepper Motor 57BYGH56 is a two-phase hybrid motor featuring a 56 mm stack, 1.8° (200 steps/rev) step angle, and a 6.35 mm D-shape shaft. This variant offers a rated current of 3.5 A per phase and a phase resistance of 0.8 Ω, providing strong holding torque (~1.2 Nm) with robust thermal tolerance. It employs high insulation standards (≥100 MΩ @ 500 VDC; 500 VAC for 1 min) and is rated for a temperature rise up to 80 °C, suitable for continuous use in environments from –20 °C to +50 °C.
Features
- High precision 1.8° step angle for accurate control.
- Strong holding torque for mechanical load handling.
- Durable 56mm body for high torque applications.
- Low resistance for efficient power usage.
- Compatible with most bipolar stepper motor drivers.
- 8mm D-shaft for secure mechanical coupling.
Specifications
| Parameter | Value |
|---|---|
| Model | 57BYGH56 |
| Step Angle | 1.8° (200 steps/rev) |
| Step Accuracy | ±5 % |
| Phases | 2 (bipolar,4‑wire) |
| Rated Current | 3.5A/Phase |
| Phase Resistance | 0.8Ω |
| Resistance Accuracy | ±10 % |
| Insulation Resistance | ≥100MΩ@500VDC |
| Phase Inductance | 2.5mH – 4.7mH |
| Inductance Accuracy | ±20 % |
| Holding Torque | 1.2Nm – 1.9Nm |
| Detent Torque | 0.02Nm – 0.04Nm |
| Rotor Inertia | 270g·cm² – 310g·cm² |
| Temperature Rise | ≤80°C |
| Ambient Temperature Range | –20°C – +50°C |
| Storage Temperature Range | –20°C – +70°C |
| Dielectric Strength | 500VAC for 1min |
| Number of Leads | 4 |
| Motor Length | 56mm |
| Shaft Diameter | 6.35mm D‑shape |
Torque vs Speed
Applications
- Heavy-duty CNC milling, routing, and engraving.
- High-torque 3D printers and plotters.
- Linear motion systems and pick‑and‑place automation.
- Precision instruments in optics and measurement applications.
- Industrial robotics and actuator systems.
Package Contents
- 1x Nema 23 Stepper Motor 57BYGH56.
