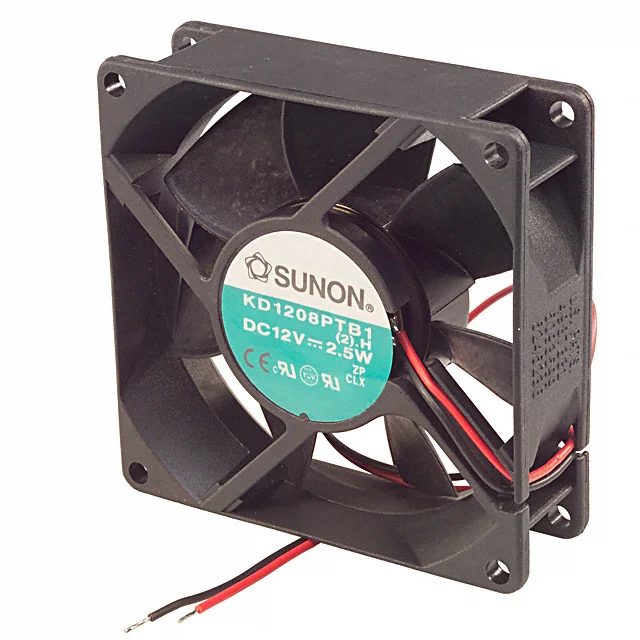

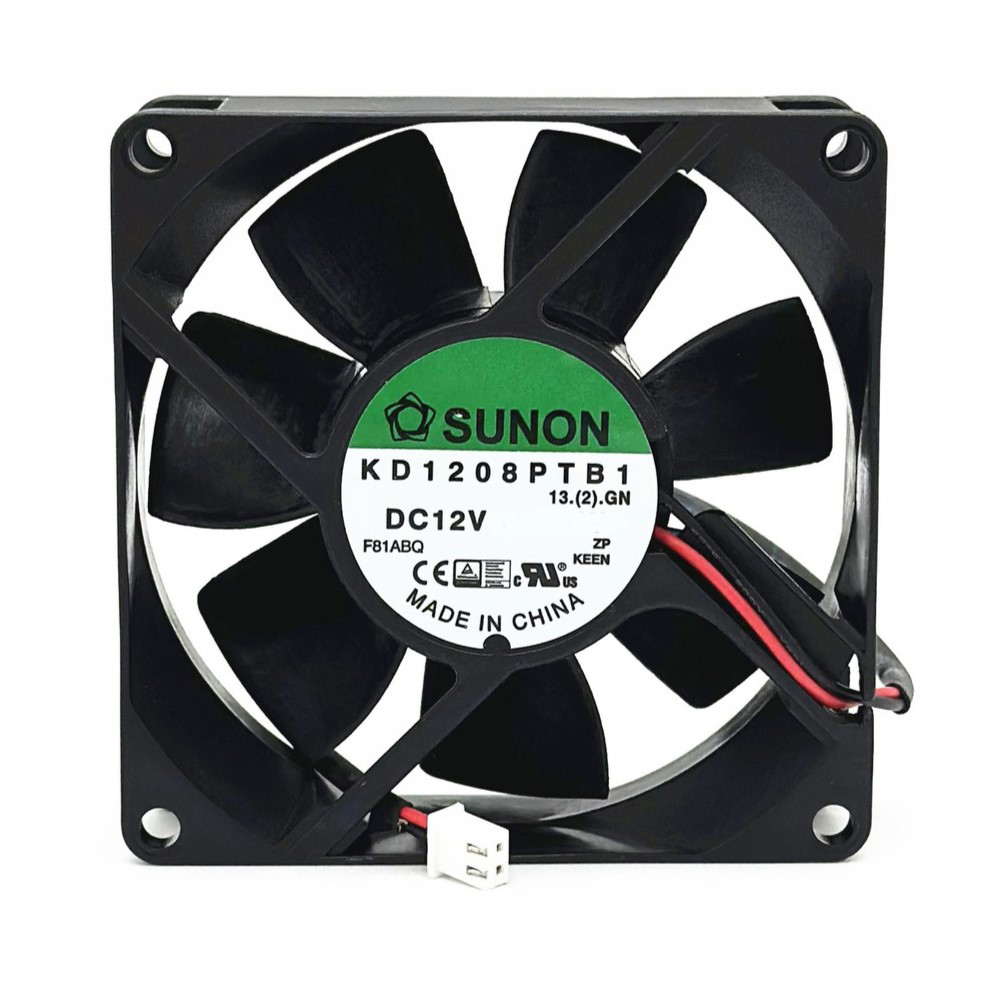

SUNON KD1208PTB1 DC Fan 12V 2.6W 80x80x25mm (USED LIKE NEW)
The SUNON KD1208PTB1 is a compact 80 × 80 × 25mm DC axial cooling fan designed to provide effective airflow for electronic and industrial equipment. It operates from a 12V DC supply and has a 2.6W power rating, making it suitable for equipment that requires continuous cooling in a compact form factor. Available references identify the KD1208PTB1 family as a ball-bearing fan with a typical airflow of around 39.5 CFM.
This fan is suitable for servers, computer systems, power supplies, control equipment, electronic enclosures, and other thermal-management applications. Different KD1208PTB1 variants can use different connector and wire configurations, so the exact connector should be checked on the supplied unit before installation. The listed product is Used Like New, providing a practical replacement or cooling solution for existing equipment.
Features:
- SUNON original DC axial cooling fan.
- Compact 80mm fan format.
- Ball-bearing construction.
- Brushless DC motor design.
- Designed for continuous cooling.
- Suitable for server and electronic equipment.
- Compact 25mm thickness.
- Used Like New condition.
Specifications:
| Attribute | Specification |
|---|---|
| Brand | SUNON |
| Model | KD1208PTB1 |
| Fan Type | DC Axial / Tubeaxial Fan |
| Rated Voltage | 12V DC |
| Power Consumption | 2.6W |
| Rated Current | Approx. 0.19–0.22A |
| Dimensions | 80 × 80 × 25mm |
| Bearing Type | Ball Bearing |
| Speed | 3000 RPM |
| Airflow | 39.5 CFM |
| Noise Level | 33 dB(A) |
| Static Pressure | 44.8 Pa |
| Condition | Used Like New |
Applications:
- Server cooling.
- Computer cooling.
- Power supply cooling.
- Industrial equipment.
- Electronic equipment.
- Control cabinets.
- Electronic enclosures.
- Networking equipment.
- Replacement cooling systems.
- Custom electronics projects.
Package Includes:
- 1 × SUNON KD1208PTB1 DC Fan 12V 2.6W 80 × 80 × 25mm (Used Like New).
