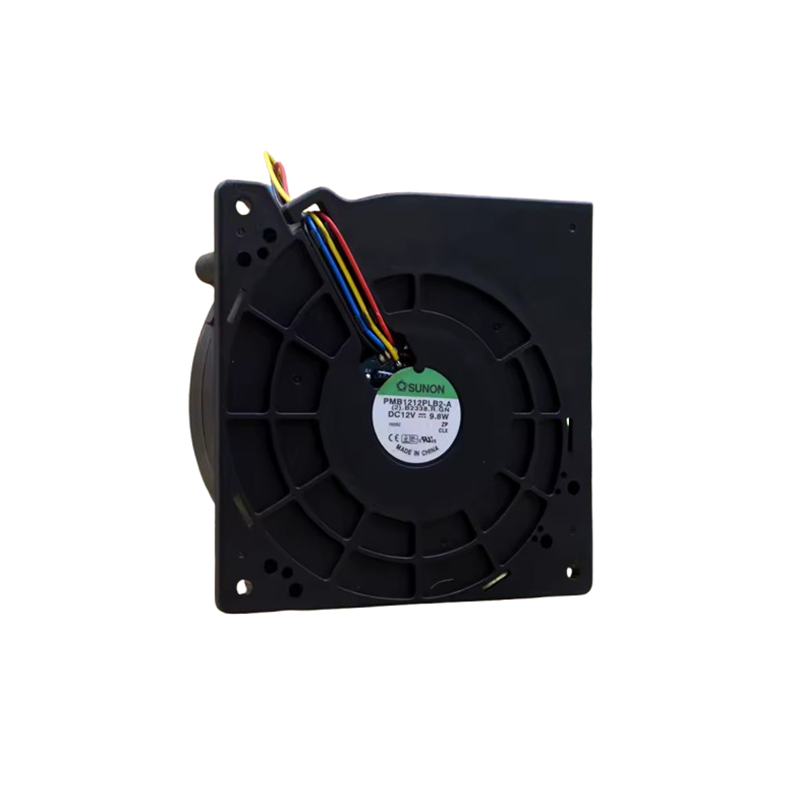

SUNON PMB1212PLB2-A Turbo DC Blower Fan 12V 9.4W 120mmx120mmx32mm (USED LIKE NEW)
The SUNON PMB1212PLB2-A blower fan projects an impression of brute readiness. Its frame is robust, with a substantial 120 × 120 × 32 mm body that suggests strength more than elegance. The casing is thick, with thermoplastic material giving it a matte utilitarian look; the edges are clean, blades enclosed in a rounded/square housing, built to resist deformation. There is a sense of weight when you lift it, implying that this fan is meant for work, not just display.
When operating, it asserts its purpose. Turned on, the fan hums with the sort of steady intensity you expect when high airflow is forced through restriction. The blades spin at about 2500 RPM, delivering brisk airflow with a noticeable rush. There’s a presence: air being pulled in, pushed out—venting heat, moving air like a small engine. It is not silent; rather, it is strong, enough that its sound becomes part of the environment, especially under load.
Over time, this fan shows its reliability. It does not easily tire under continuous duty, given the design and materials. It is built for harsh spaces possibly dusty or warm with durable bearings, sturdy motor design, and tolerances that allow it to perform even under less-than-ideal conditions. Even when the environment pushes back (heat, resistance to airflow, etc.), this fan continues to push air, sustain flow, and maintain performance without collapsing into lag. It embodies persistence: continuous cooling, unflinching movement of air, sustaining temperature balance where needed.
Features:
- Brushless DC motor for greater durability and lower maintenance.
- Ball bearing system for longer life under continuous duty.
- Thermoplastic frame and impeller materials (PBT), resistant to wear.
- Auto-restart functionality (resumes after power interruption).
- Moderate fan dimensions that balance airflow vs space (120×120×32 mm).
- Good airflow under static pressure (i.e. able to maintain performance even when pushing against resistance).
Specifications:
| Specification | Value |
|---|---|
| Model: | SUNON PMB1212PLB2-A.(2).GN (and variants like (2).F.GN) |
| Voltage: | 12 VDC |
| Power Consumption: | ≈ 9.8 W |
| Current Rating: | ≈ 0.82 A |
| Fan Dimensions: | 120 × 120 × 32 mm |
| Airflow: | ≈ 35.9 CFM (≈ 1.01 m³/min) |
| Static Pressure: | ≈ 0.89 in H₂O (≈ 221.7 Pa) |
| Speed (RPM): | ≈ 2500 RPM |
| Noise Level: | ~ 53.8 dB(A) |
| Bearing Type: | Ball bearing |
| Operating Temperature: | –10 to +70 °C |
| Material – Frame & Blade: | Polybutylene Terephthalate (PBT) |
Applications:
- Server / Data Center Cooling.
- Industrial Electronics Thermal Management.
- HVAC & Ventilation Systems.
Package Contents:
- 1x SUNON PMB1212PLB2-A Turbo DC Blower Fan 12V 9.4W 120mmx120mmx32mm (USED LIKE NEW)
