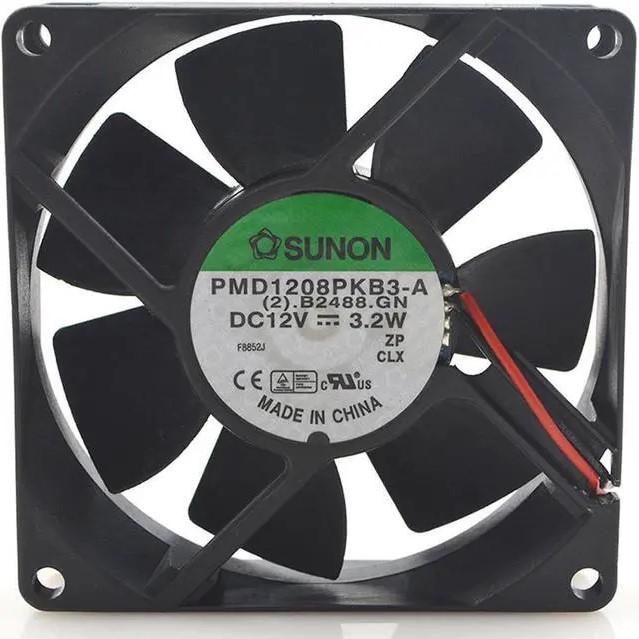

SUNON PMD1208PKB3-A DC Fan 12V 3.2W 80x80x20mm (USED LIKE NEW)
The SUNON PMD1208PKB3-A is an 80 × 80 × 20mm DC axial cooling fan designed for applications requiring strong airflow in a compact form factor. It operates from a 12V DC supply and is commonly specified at approximately 3.1–3.2W, with a rated speed of 3900 RPM. SUNON documentation identifies a precision ball-bearing system, automatic restart capability, and polarity protection for reliable operation.
This fan is suitable for computer systems, power supplies, servers, electronic enclosures, networking equipment, and other applications requiring forced-air cooling. The fan uses a 2-wire power connection and can deliver approximately 45 CFM of airflow with a static pressure of about 0.26 inH₂O. The supplied unit is Used Like New, making it suitable as a replacement fan or for custom cooling projects.
Features:
- SUNON high-performance DC axial fan.
- Compact 80mm fan format.
- 20mm slim fan thickness.
- Precision ball-bearing construction.
- Brushless DC motor.
- High-speed airflow design.
- Automatic restart capability.
- Polarity protection.
- 2-wire power connection.
- Suitable for continuous equipment cooling.
- Used Like New condition.
Specifications:
| Attribute | Specification |
|---|---|
| Brand | SUNON |
| Model | PMD1208PKB3-A |
| Fan Type | DC Axial / Tubeaxial Fan |
| Rated Voltage | 12V DC |
| Operating Voltage | 6–13.8V DC |
| Rated Power | 3.2W* |
| Rated Current | 0.26A* |
| Dimensions | 80 × 80 × 20mm |
| Speed | 3900 RPM ±15% |
| Airflow | 45.0 CFM |
| Static Pressure | 0.26 inH₂O |
| Noise Level | 44 dB(A) |
| Bearing Type | Precision Ball Bearing |
| Connection | 2-Wire |
| Operating Temperature | -10°C to +70°C |
| Weight | Approx. 85g |
| Condition | Used Like New |
Applications:
- Computer case cooling.
- Power supply cooling.
- Server cooling.
- Networking equipment.
- Electronic equipment.
- Industrial control systems.
- Electronic enclosures.
- Control cabinets.
- Telecom equipment.
- General equipment ventilation.
- Replacement cooling applications.
Package Includes:
- 1 × SUNON PMD1208PKB3-A DC Fan 12V 3.2W 80 × 80 × 20mm (Used Like New).
