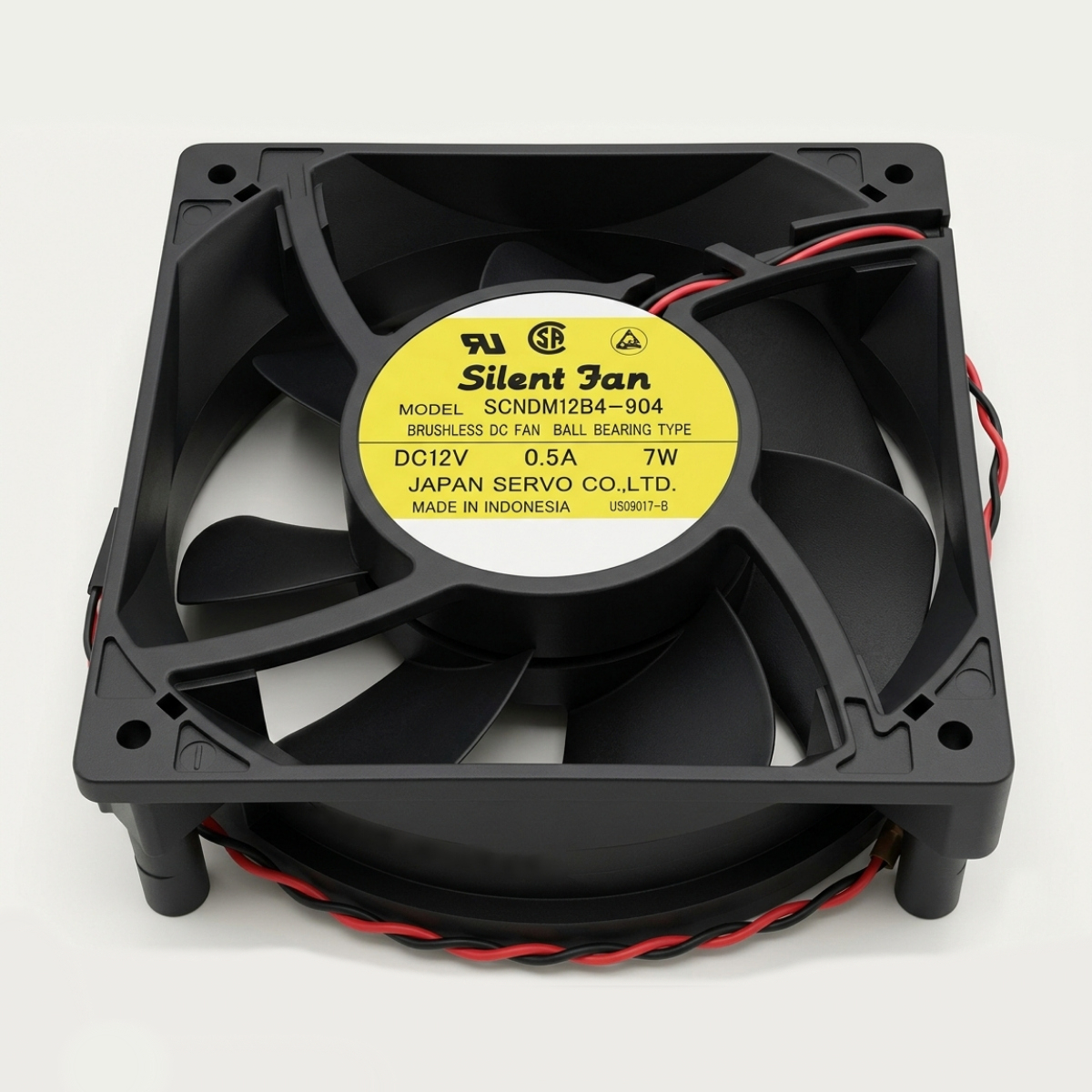

Servo SCNDM12B4-904 DC FAN 12V 0.5A 120x120x38mm (Used Like New)
The Servo SCNDM12B4-904 is a 120 × 120 × 38 mm axial DC cooling fan designed for applications requiring strong and reliable air circulation. It operates from a 12V DC supply and draws approximately 0.5A, giving a rated power consumption of about 7W. Its 38 mm thickness provides a larger airflow path than standard 25 mm fans, making it suitable for equipment where effective heat removal is important.
This fan is well suited for servers, networking equipment, industrial electronics, power supplies, control cabinets, and custom cooling systems. The SCNDM12B4-904 is a brushless axial fan with ball-bearing construction, and available product references identify it as a 2-wire fan. The supplied unit is Used Like New, making it a practical option for replacement cooling or retrofit projects.
Features
- High-airflow 120 mm axial fan design.
- Brushless DC motor.
- Ball-bearing construction.
- Rugged 38 mm-thick fan frame.
- Designed for continuous equipment cooling.
- 2-wire power connection.
- Suitable for server and industrial cooling applications.
- Used Like New condition.
Specifications
| Attribute | Specification |
| Model Number | SCNDM12B4-904 |
| Rated Voltage | 12V DC |
| Rated Current | 0.5A |
| Power | 7.0W |
| Dimensions | 120 x 120 x 38 mm |
| Wiring | 2-Wire (Red: Positive, Black: Negative) |
| Weight | 252 g |
Applications
- Server & Networking
- Industrial Equipment
- Custom PC Builds
- Electronic Enclosures
Package Content
- 1 x Servo SCNDM12B4-904 DC FAN 12V 0.5A 120x120x38mm (Used Like New)
