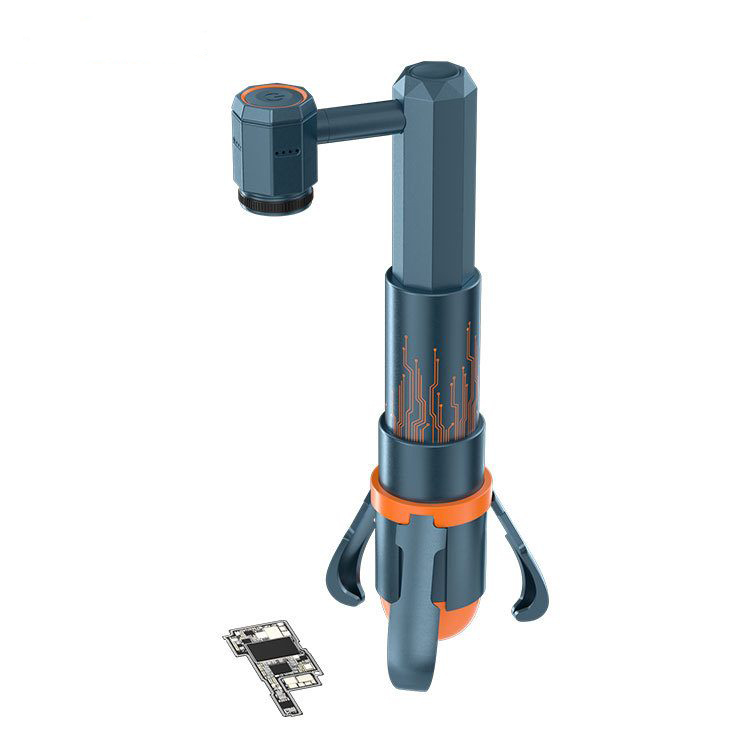

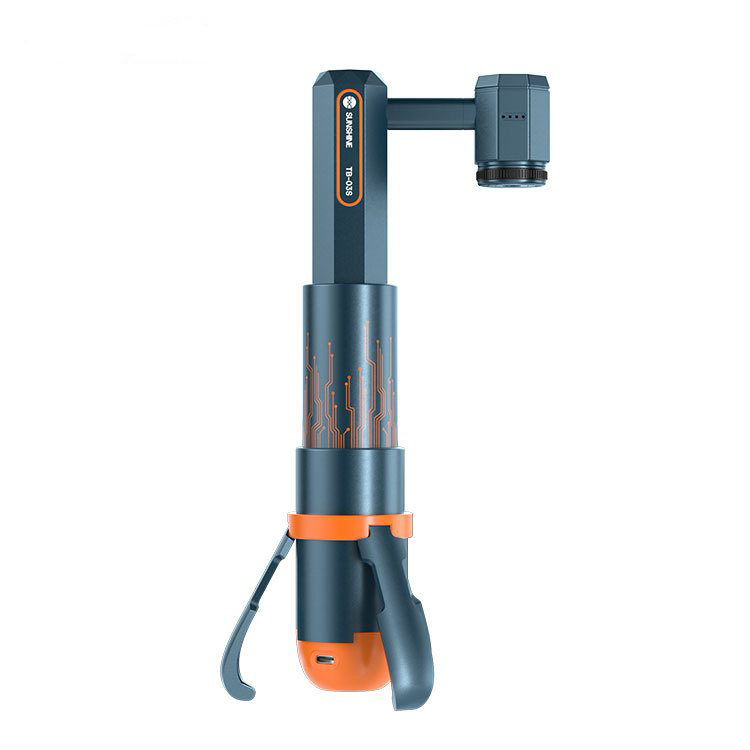

TB-03S SUNSHINE Infrared Rapid Thermal Camera
The SUNSHINE TB-03S Infrared Rapid Thermal Camera is a professional thermal imaging device developed for electronics troubleshooting, maintenance, and diagnostic work. By visualizing temperature distribution in real time, it helps technicians quickly identify overheating components, short circuits, power faults, and abnormal thermal behavior on printed circuit boards. Its compact design and easy operation make it suitable for repair workshops, laboratories, and field service environments.
This thermal camera is particularly useful for smartphone, laptop, motherboard, and electronic equipment repair where hidden faults can be difficult to locate using traditional testing methods. Thermal imaging allows users to pinpoint hot spots instantly, reducing troubleshooting time and improving repair efficiency. The TB-03S provides a practical solution for preventive maintenance, quality inspection, and thermal analysis across a wide range of electronic systems.
Features:
- Real-time infrared thermal imaging.
- Fast temperature detection and analysis.
- Suitable for PCB and electronic circuit diagnostics.
- Helps identify overheating components quickly.
- Non-contact temperature measurement.
- Compact and portable design.
- High sensitivity thermal detection.
- Easy-to-use interface.
- Useful for fault diagnosis and preventive maintenance.
- Suitable for professional repair technicians and engineers.
- Supports thermal inspection of electronic devices.
- Enhances troubleshooting efficiency.
Specifications:
| Characteristic | Value |
|---|---|
| Brand | SUNSHINE |
| Product Name | Infrared rapid thermal camera |
| Model | TB-03S |
| Net Weight | ≈265 g |
| Product Size | 116 × 52 × 150 mm |
| Package Size | 190 × 152 × 75 mm |
| Detector Type | Uncooled Vanadium Oxide (VOx) Detectors |
| Resolution | 256 × 192 |
| Wavelength Range | 7.5–13.5 μm |
| Camera Angle | 25° × 18° |
| Display Mode | Visible Light / Thermal Imaging / Quick Check |
| Connection Method | Type-C |
| Image Storage Format | JPG |
| Input Supply Voltage | 5 V DC |
| Power Consumption | 2.5 W |
| Storage Temperature Range | –20 to 60 °C |
| Operating Range | 3–45 °C |
| Humidity | 95% relative humidity |
| Temperature Measurement Distance | 5–25 cm |
| Temperature Measurement Accuracy | ±5 °C / ±5% (Max) |
| Temperature Range | –20 to 550 °C |
| Install | Plug and play, no installation required |
Dimensions:
Applications:
- Electronics and PCB Diagnostics where Ideal for locating short circuits, overheating, and component failure in circuit boards.
- Industrial Equipment Monitoring where Helps detect overheating in machinery and ensures preventive maintenance.
- Building Inspections where Useful for identifying insulation issues, heat leaks, and moisture intrusion in structures.
- Non-Contact Temperature Screening where Can be used for visitor temperature monitoring in public and workplace environments.
- Research and Development where Assists in temperature profiling and analysis for prototypes and new product designs.
Package Contents:
- 1 x SUNSHINE TB-03S Infrared Rapid Thermal Camera.
- 1 x Type-C Power Cord.
- 1 x Camera.
- 1 x Instruction Manual.
