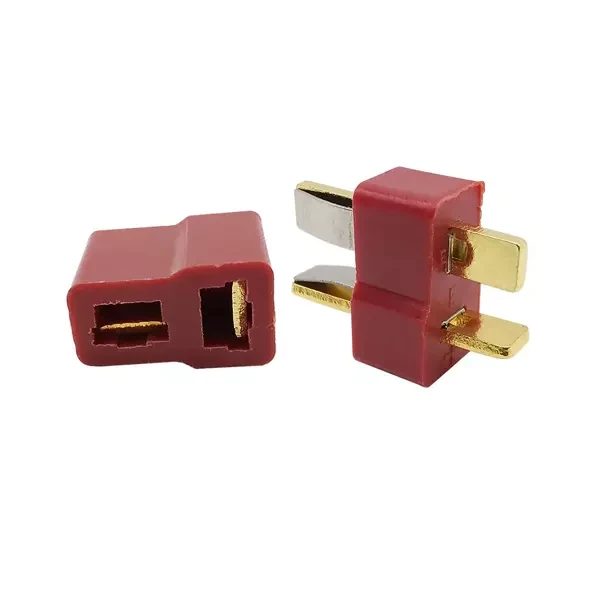

T-Type Battery Connector Male Female Set 2 Pin
The T-Type Battery Connector Male Female Set 2 Pin is a reliable and efficient solution for high-current power connections in RC vehicles, drones, and DIY electronics. This connector set features a secure, low-resistance design that ensures stable power delivery and minimizes energy loss. Made from durable materials, both connectors offer a snug fit to prevent disconnections during operation. The compact and easy-to-use design makes installation simple, making this set ideal for hobbyists and professionals looking for dependable and long-lasting battery connections.
Features:
- The T-Type Battery Connector Set includes both male and female connectors designed for high-current applications.
- Supports high-current loads, typically up to 60A continuous current.
- Constructed from high-quality, heat-resistant nylon or polycarbonate, ensuring longevity and reliability.
- Resists deformation and wear under heavy usage.
- T-shaped design provides a firm and stable connection between male and female parts and prevents accidental disconnections.
- Low Electrical Resistance.
- Small and lightweight, suitable for portable and space-constrained applications.
- Solder terminals make it easy to connect wires securely.
- Clear polarity markings help prevent reverse connection errors.
- Designed to be flame retardant for added safety during high-current operations.
- The T-Type Battery Connector is a widely used in RC vehicles, drones, battery packs, and other electronics requiring reliable power transfer.
- Compatible with LiPo batteries, NiMH batteries, and other battery types.
Dimensions:
Specifications:
- Connector Type: T-Type Battery Connector
- Gender: Male + Female
- Color: Red
- Number of pins: 2 Pin
- Rated Voltage(DC): 500 V
- Rated Current: 30 A
- Instantaneous Current: 60 A
- Contact Resistance: ≤ 0.5mΩ
- Insulation Resistance: ≥ 1000MΩ
- Recommended Wire Compatibility: 12AWG
- Housing Material: Nylon (Heat-resistant)
- Contacts Material: copper plated
- Operating Temperature Range: -20°C to +120°C
- Heat Resistance: Ensures no deformation under high current loads.
- Connection Type: Snap-fit with tight tolerances to ensure a secure connection.
- Solder Cup Dimensions: Large enough for easy soldering and secure wire attachment.
Applications:
- Remote-controlled vehicles
- RC cars.
- Boats.
- Drones.
- Airplanes.
- Battery packs for electronic projects and power tools.
- DIY electronics requiring stable power connections.
Package Contents:
- 1x Male T-Type Battery Connector
- 1x Female T-Type Battery Connector
