Sold out

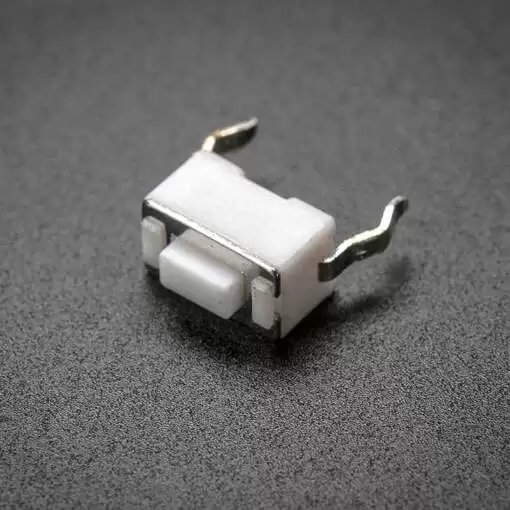

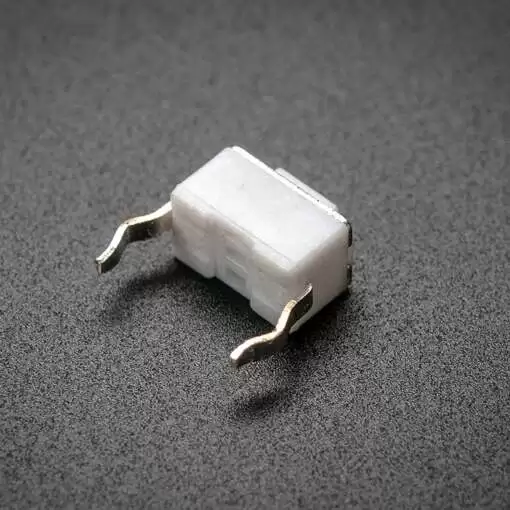

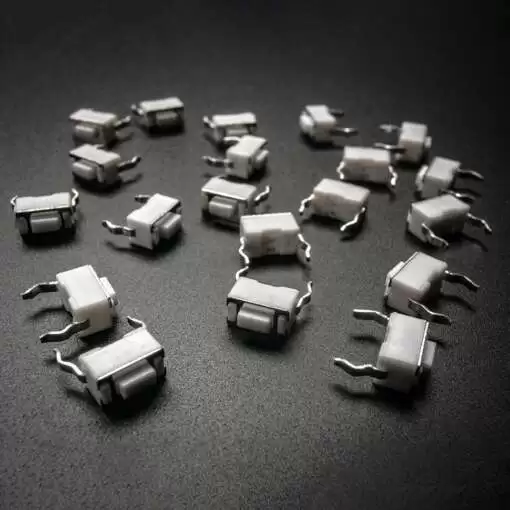

Tactile Switch Push Button SPST 50mA @ 12VDC 3.5x6x4.3mm (5 Pcs)
6.00 EGP
Last Updated on December 8, 2023 by Ahmed Magdy
Specifications
| Attribute | Value |
| Category | Key/Switch/Tactile Switches |
| Strike Gundam | NO |
| Pin Style | PCPin |
| Voltage Rating (DC) | 12V |
| Contact Current | 50mA |
| Switch Length | 6mm |
| Insulation Resistance | 100MΩ |
| Mechanical Life | 100000 Times |
| Operating Force | 260gf@±50gf |
| Voltage Rating (DC) | 12V |
| Operating Temperature | -30℃~+80℃ |
| Switch Width | 3.5mm |
| Switch Height | 4.3mm |
| Actuator/Cap Color | White |
| Actuator Style | Rectangle button |
| Mounting Style | Straight |
| Circuit | SPST |

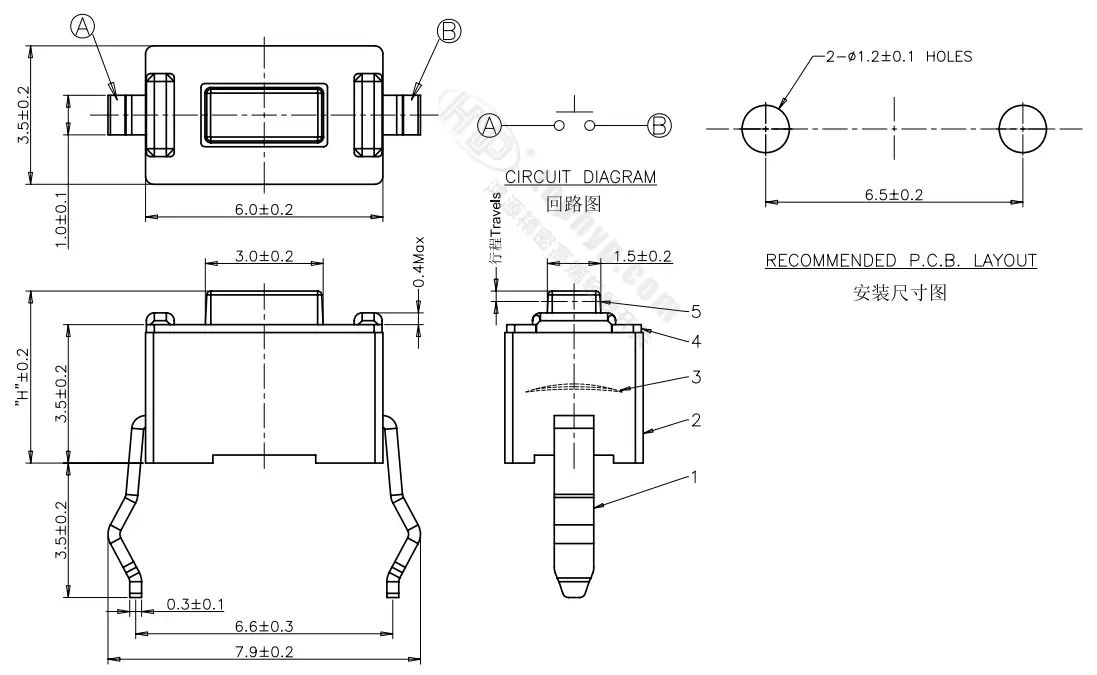

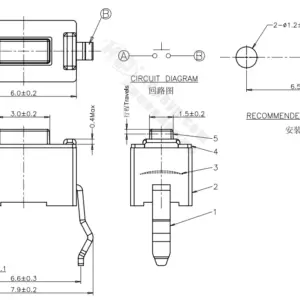

Drawing:
