TDA2040 IC Hi-Fi Audio Power Amplifier 40V 4A Pentawatt V
The TDA2040 is a monolithic Class-AB, providing up to 25 W output power with low distortion and built-in protection, ideal for hi-fi and amplification.
25.00 EGP
In stockSKU 3496300108206
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast

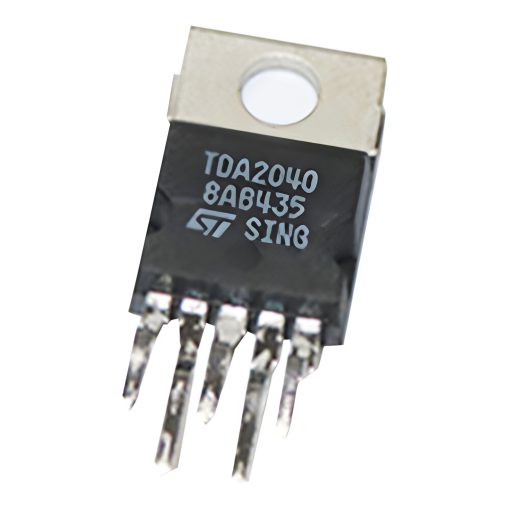

TDA2040 IC Hi-Fi Audio Power Amplifier 40V 4A Pentawatt V
The TDA2040 is a monolithic integrated circuit in the Pentawatt V package, intended for use as an audio class-AB amplifier.
Typically, it provides 25 W output power into 4 Ω with THD = 0.5% at VS = 34 V. The TDA2040 provides high output current and has very low harmonic and crossover distortion.
Furthermore, the device incorporates a patented short-circuit protection system.
Features:
- Hi-Fi class-AB monolithic audio power amplifier in a compact Pentawatt V package.
- Wide supply flexibility can run from single or split (dual) supplies, making it convenient for many amplifier topologies.
- Built-in protection: automatic short-circuit/power-limiting system and thermal shutdown to improve robustness and protect the IC and output stage.
- Low harmonic & crossover distortion optimized for good audio fidelity, suitable for hi-fi speaker driving.
- High output current capability and robust output transistors suitable for driving low-impedance speakers and bridge configurations.
- Easy-to-use application circuits: reference application circuits, PCB layout recommendations and bridge/mono/single-supply examples are provided in the datasheet for quick building.
- Good noise and ripple rejection for cleaner sound with ordinary power supplies.
- Well suited for active crossovers, multiway speaker systems, and DIY hi-fi projects common in small amplifiers and powered speaker designs.
Specifications:
| Parameter | Value / Rating |
|---|---|
| Device Type: | Hi-Fi Audio Power Amplifier IC |
| Package: | Pentawatt V (Vertical) |
| Supply Voltage (Dual): | ±4.5 V to ±20 V |
| Supply Voltage (Single): | 9 V to 40 V |
| Peak Output Current: | 4 A |
| Output Power (4Ω): | 25 W (0.5% THD) |
| Max Output Power: | 30 W (10% THD) |
| Power Dissipation: | 25 W |
| Quiescent Current: | 30 mA |
| Input Bias Current: | 0.3 µA |
| Input Offset Voltage: | ±2 mV, ±20 mV max |
| Open Loop Voltage Gain: | 80 dB |
| Closed Loop Voltage Gain: | 30 dB |
| Total Harmonic Distortion (THD): | 0.03% |
| Noise Voltage: | 2–3 µV |
| Supply Voltage Rejection Ratio (SVRR): | 40–50 dB |
| Efficiency: | Up to 66% |
| Thermal Shutdown: | Yes |
| Short Circuit Protection: | Yes |
| Junction Temperature: | –40 °C to +150 °C |
| ESD Protection: | ±1500 V |
Pinout:
| Pin | Function |
|---|---|
| 1 | Non-inverting input (+) |
| 2 | Inverting input (–) |
| 3 | –V (Negative supply) |
| 4 | Output |
| 5 | +V (Positive supply) |

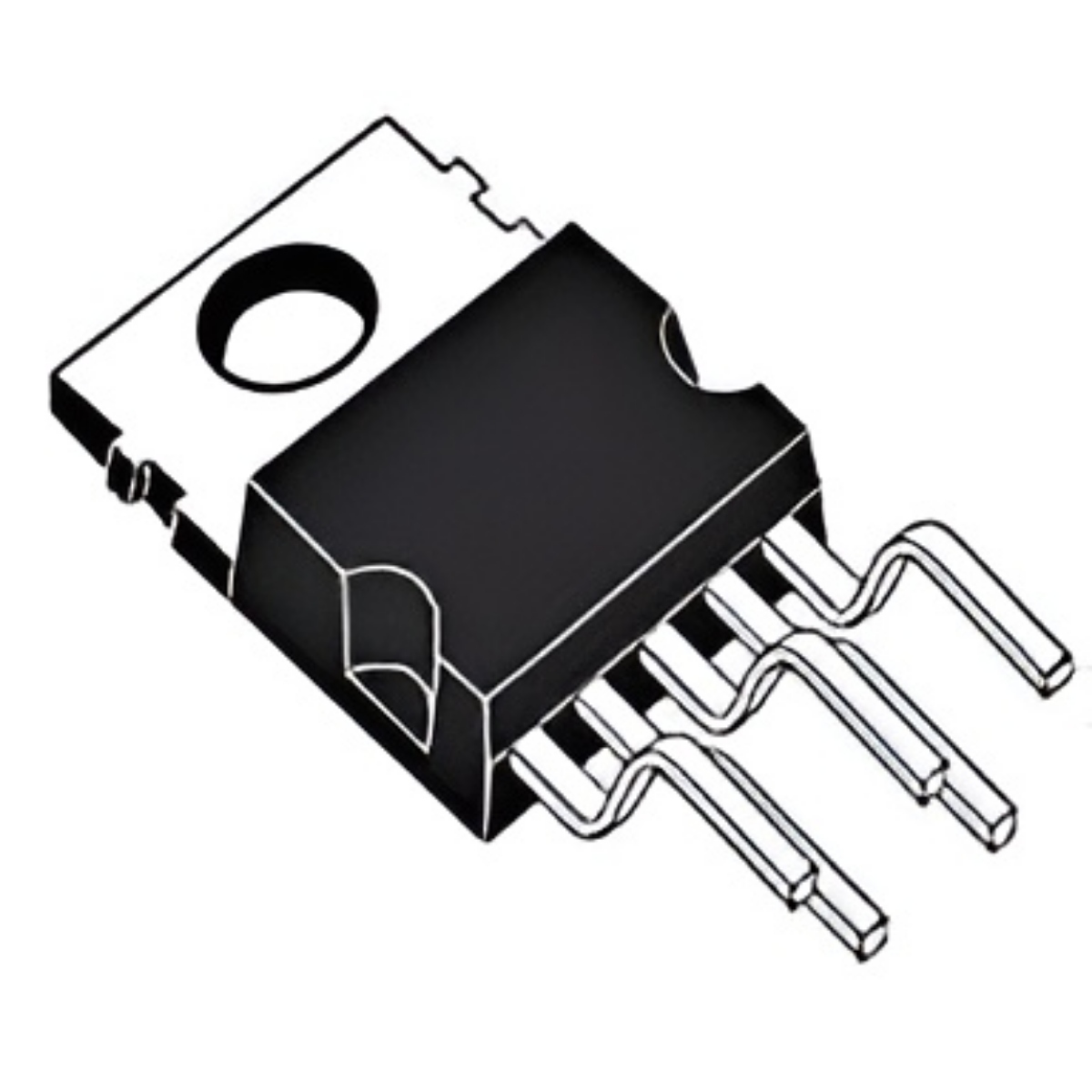

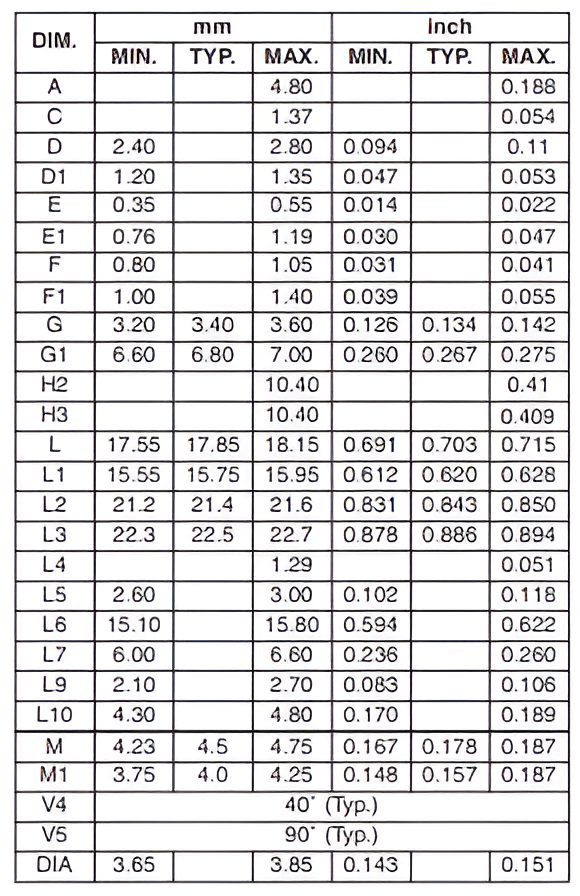

Footprint Diagram:
Applications:
- Hi-fi audio amplifier systems.
- Powered speakers and subwoofers.
- Guitar and musical instrument amplifiers.
- Audio preamplifiers and mixers.
- DIY audio electronics projects.
- Home audio and stereo systems.
Packages:
- 1x TDA2040 IC Hi-Fi Audio Power Amplifier 40V 4A Pentawatt V.
